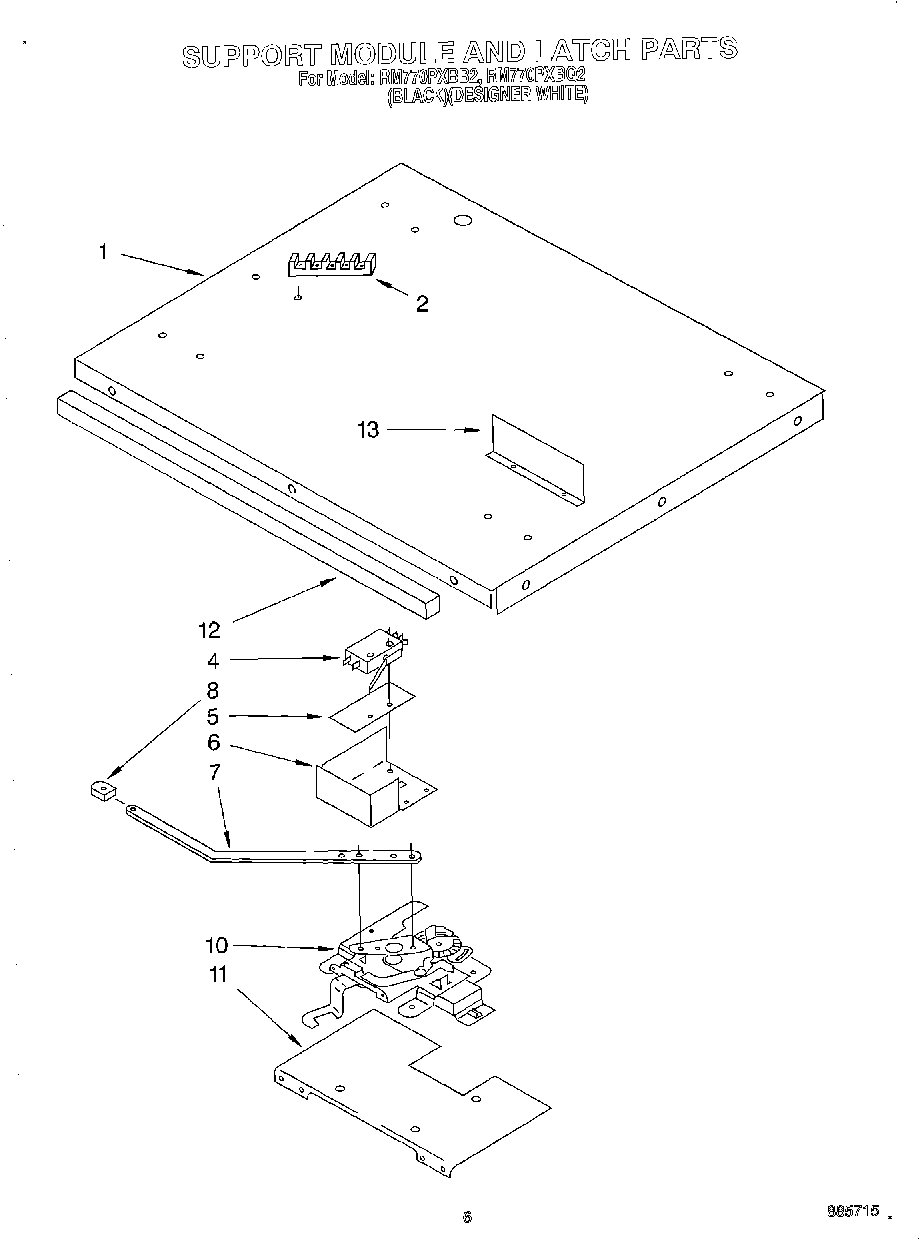

RM770PXBQ2 04 – SUPPORT MODULE AND LATCH

Products

PositionProduct
1Support, Module
2W10841059 Whirlpool Screw
2WP8203546 Whirlpool Terminal Block
4Safety Switch
4Screw
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Screw
8Screw
8Knob, Latch Handle
10Latch, Mechanism
10WP3177991 Whirlpool Screw
11Plate, Mounting
12Foam-Seal
13Baffle
