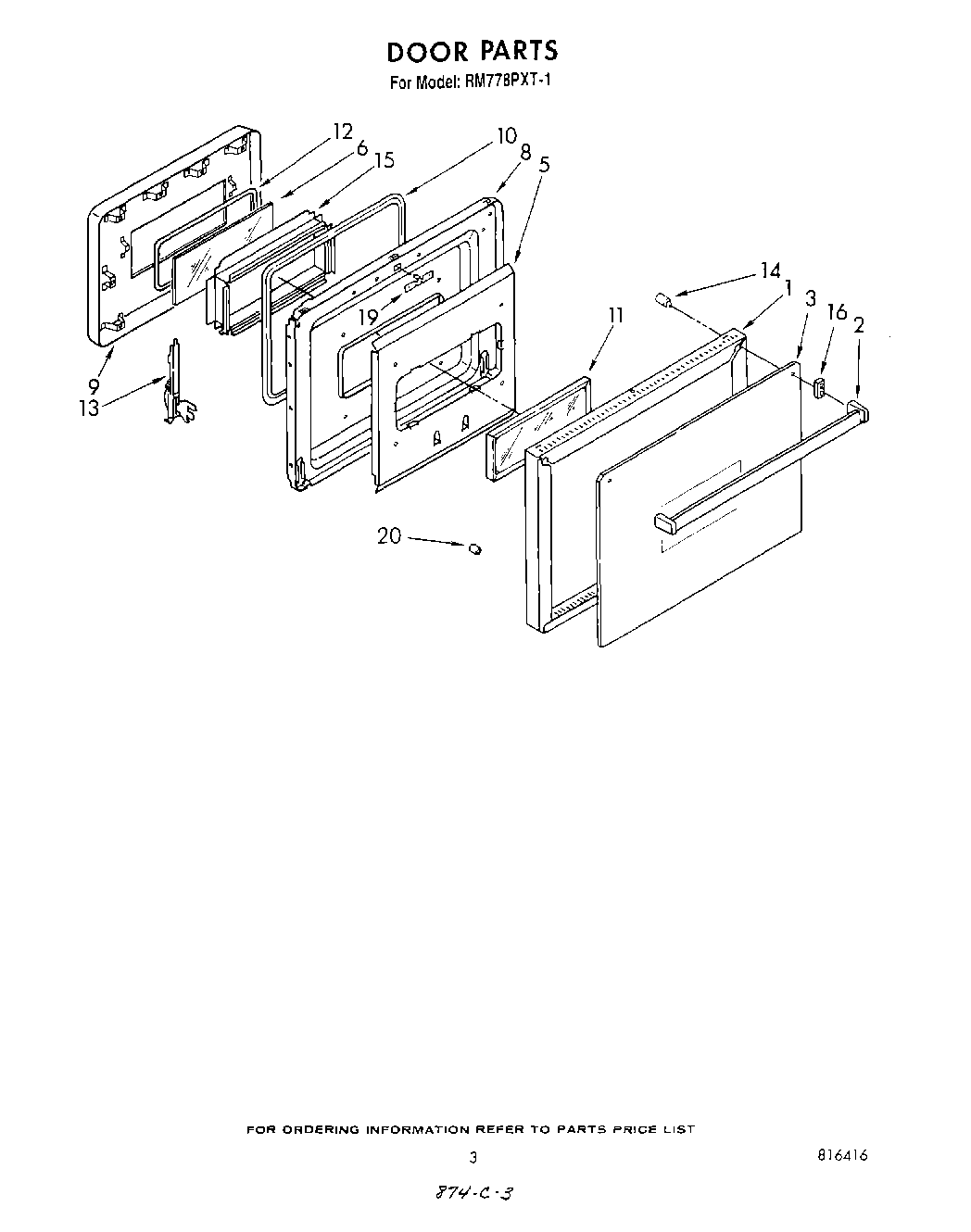

RM778PXT1 03 – DOOR

RM778PXT1 03 – DOOR

Written by

in

RM778PXT1 03 – DOOR

Products

Position	Product
1	Frame, Oven Door
2	Handle, Oven Door
3	Glass, Outer
5	Panel, Airwash
6	Glass, Inner
8	Liner, Oven Door
9	Baffle, Weldment
10	Seal, Oven Door
11	Window Assembly
12	Seal, Window
13	Hinge Assy. (2)
14	Spacer, Handle Mount (2)
15	Retainer, Glass
16	Spacer, Handle
19	Strike
20	Spacer, Glass (4)
