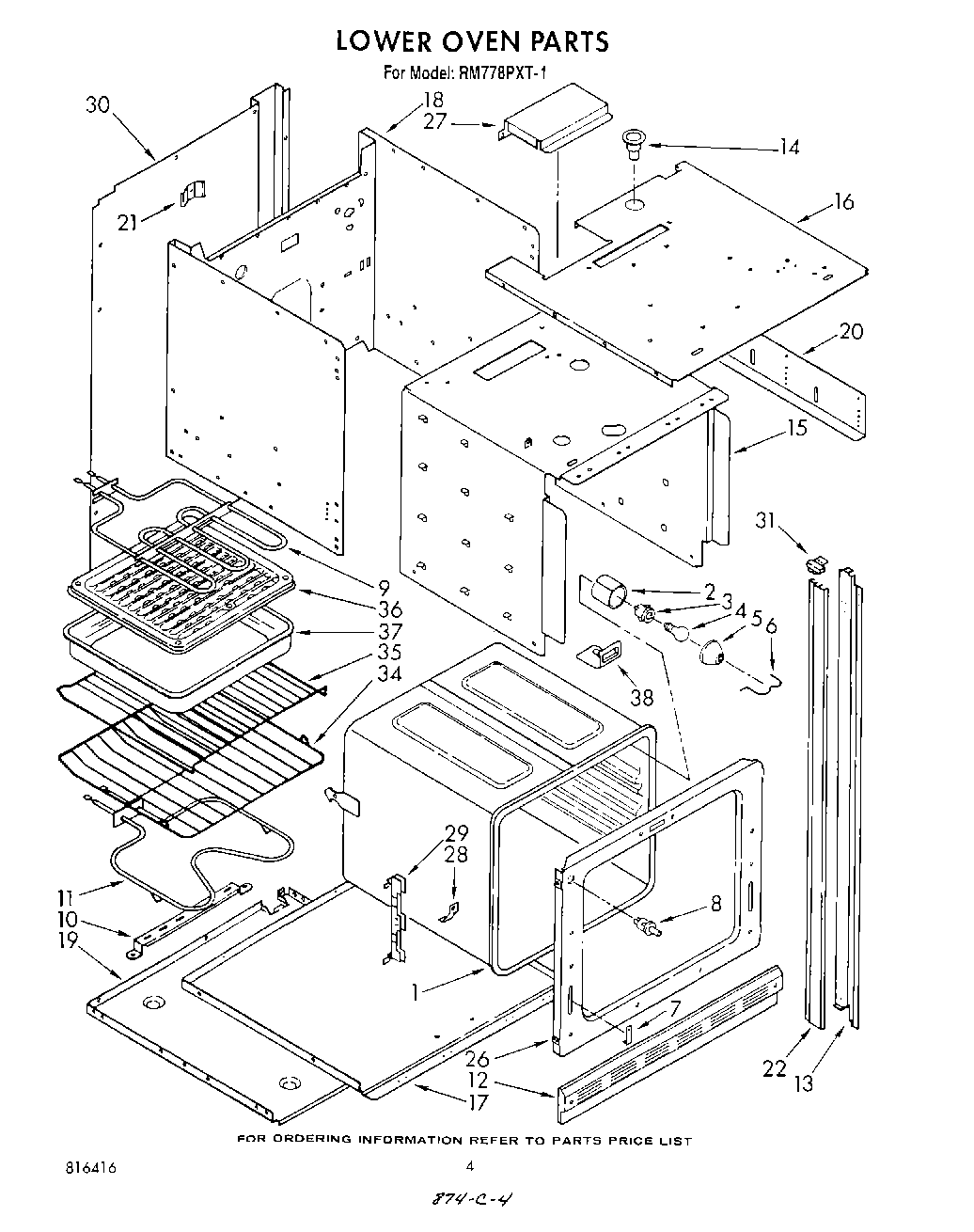

RM778PXT1 04 – LOWER OVEN

Products

PositionProduct
1Oven (27“ Pyro)
2Cup, Light
3W10856866 Whirlpool Light Socket
4RANGE ONLY 40W 120V APPL BULB
5Lens, Light
6Retainer, Lens
7Retainer, Door
8Switch, Oven Light
9Unit, Broil
10Support, Broil Unit
11Unit, Bake
12Trim, Base
13Side Trim (Inner) (R.H.)
13Side Trim (Inner) (L.H.)
14Vent Tube
15Insulation Retainer, Top and Sides
16Casing, Top
17Insulation Retainer, Bottom
18Casing, Back and Sides
19Casing, Bottom
20Support, Height Adjustment (2)
21Spring, Door (2)
22Side Trim, Outer (2)
26Front Frame
27Cover, Motor
28WPL 816387
29Channel, Hinge
30Cover, Rear
31End Cap, Top
34Rack, Oven Regular
35Rack, Oven Offset
36Grill, Broiler Pan
37Pan, Broiler
38Cover, Front
