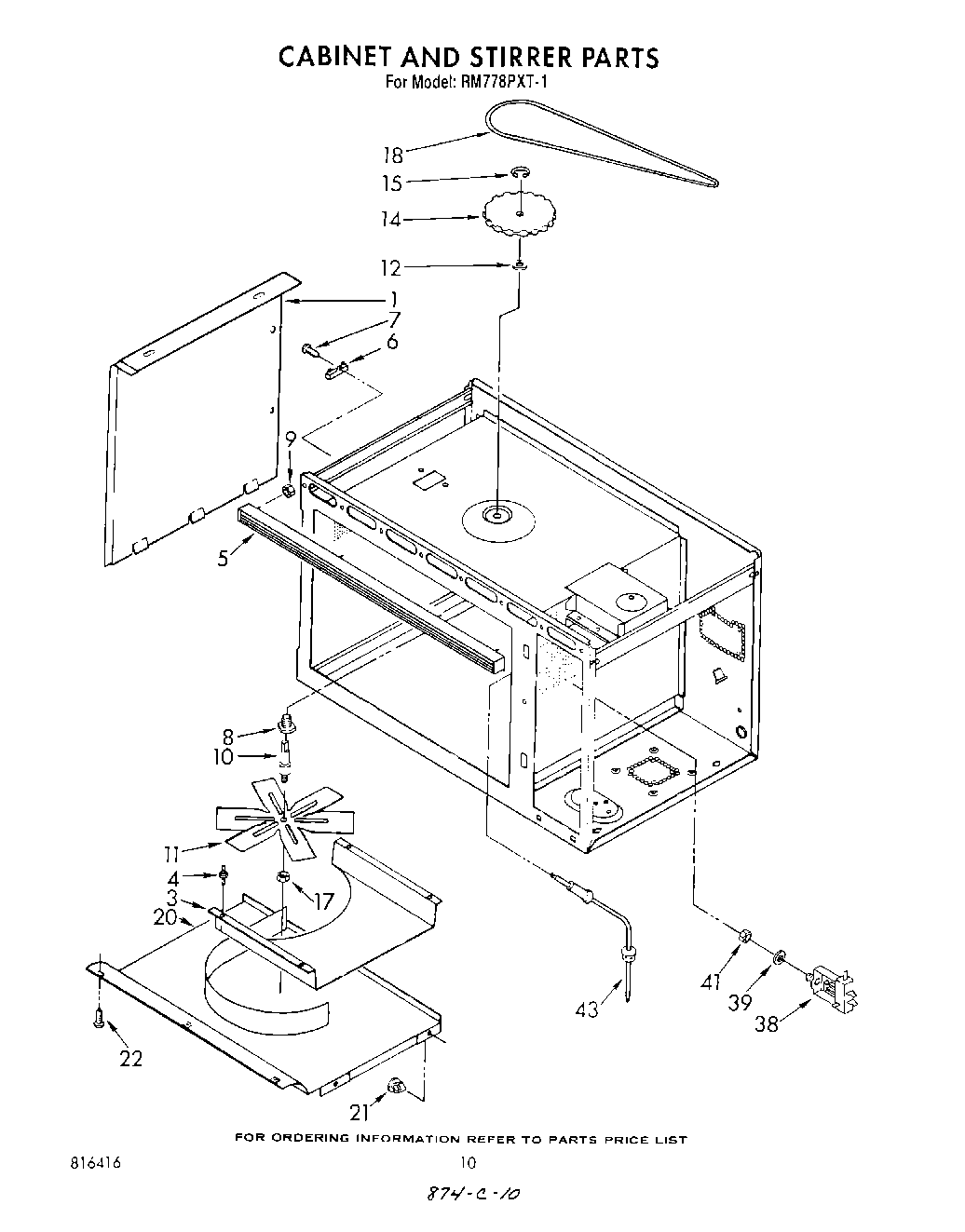

RM778PXT1 07 – CABINET AND STIRRER

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cover, Side
3	Plate, Tuning
4	Support (4)
5	Grill, Air
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
9	Nut (3)
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	``E`` Ring
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
21	Fastener (4)
22	screw, 8-32 x 1/2 (3)
38	Probe Jack
39	Washer, Internal Lock
41	Nut
43	Probe, Temperature
