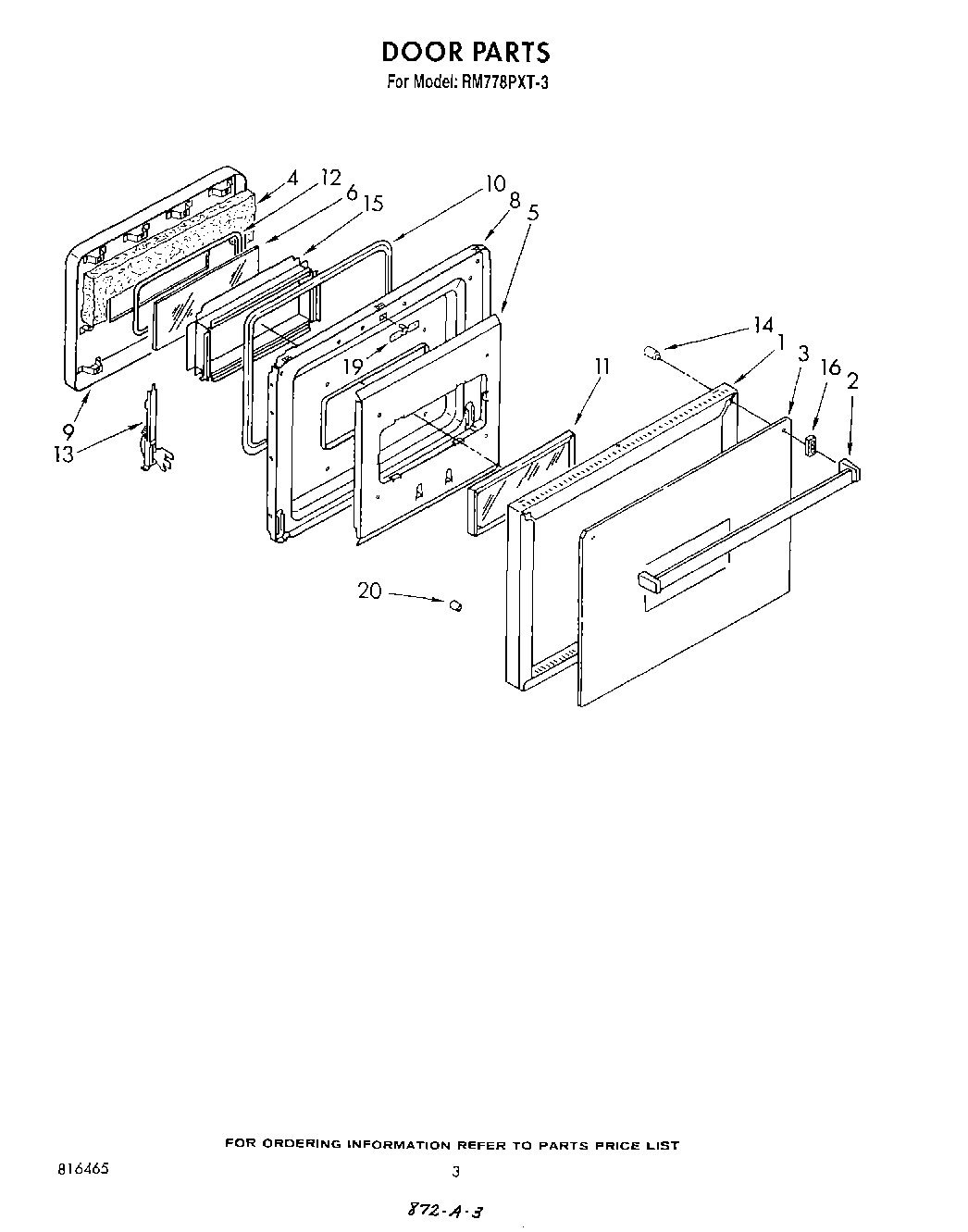

RM778PXT3 03 – DOOR

Products

Position	Product
1	Back Splash (Screw (4) 10AB x 1/2“)
1	Frame, Oven Door
2	Handle, Door (Screw, No.10x24x21/4 (2))
2	Handle, Oven Door
3	Glass, Outer
4	Insulation, Oven Door
5	Panel, Airwash
6	Glass, Inner
8	Liner, Oven Door
9	Screw, 10-24 x 2 3/4 (4)
9	Baffle, Weldment
10	Seal, Oven Door
11	Window Assembly
12	Seal, Window
13	Hinge Assy. (2)
14	Spacer, Handle Mount (2)
15	Retainer, Glass
16	Spacer, Handle (Black)
19	Screw, No.10x24x5/8
19	Strike
20	Spacer, Glass (4)
