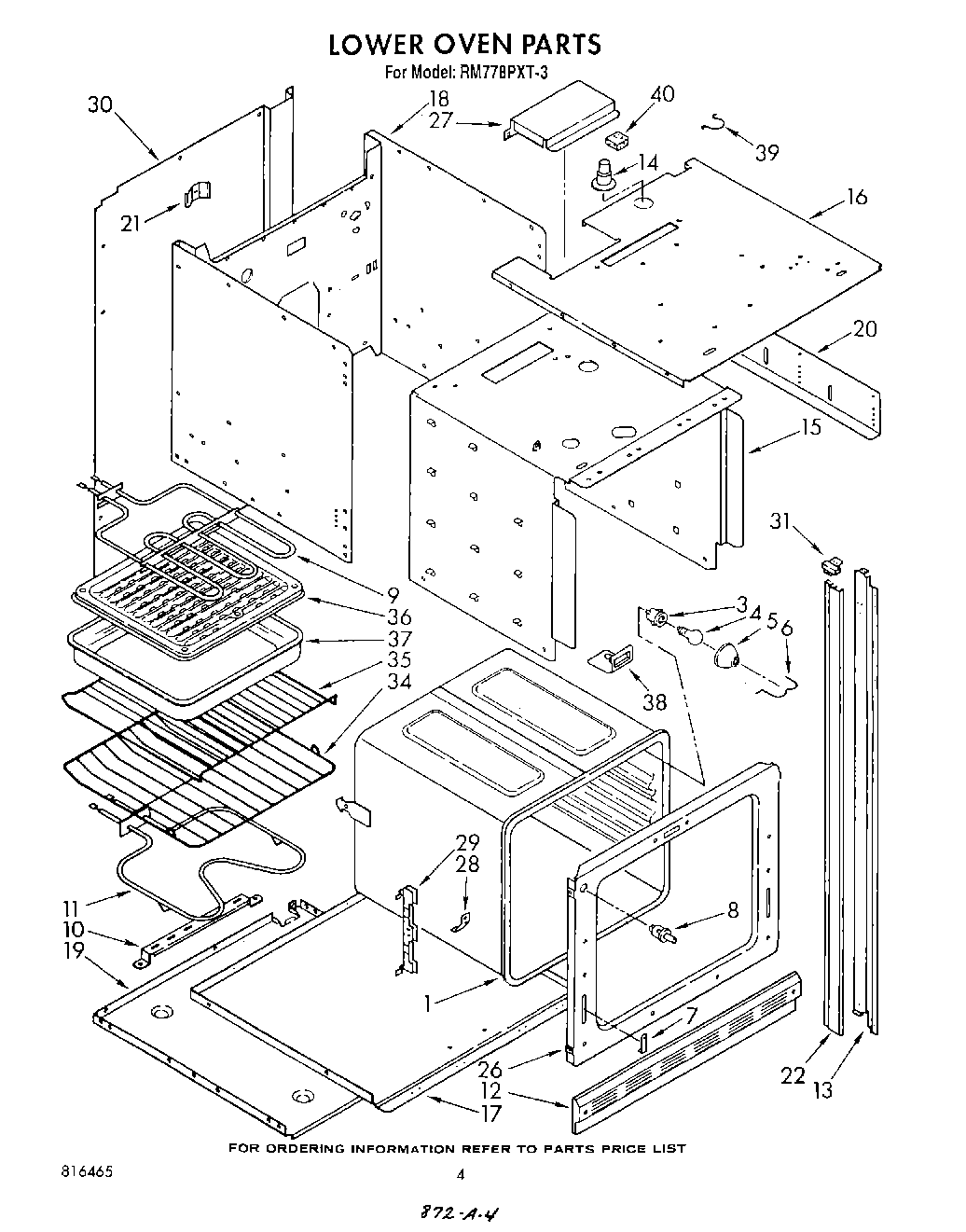

RM778PXT3 04 – LOWER OVEN

Products

Position	Product
1	Oven (27“ Pyro)
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Retainer, Door
8	Switch, Oven Light
9	Unit, Broil
10	Support, Broil Unit
11	Unit, Bake
12	Trim, Base
13	Side Trim (Inner) (R.H.)
13	Side Trim (Inner) (L.H.)
14	Vent Tube
15	Insulation Retainer, Top and Sides
16	Casing, Top
17	Insulation Retainer, Bottom
18	Casing, Back and Sides
19	Casing, Bottom
20	WP308685 Whirlpool Microwave Screw
20	Support, Height Adjustment (2)
21	Spring, Door (2)
22	Side Trim, Outer (2)
22	Back Splash (Screw (4) 10AB x 1/2“)
26	Front Frame
26	Screw, No.10x24x5/8
27	Cover, Motor
28	WPL 816387
29	Channel, Hinge
30	Cover, Rear
30	Screw, 10-24 x 3/8 (2)
31	End Cap, Top
34	Rack, Oven Regular
35	Rack, Oven Offset
36	Grill, Broiler Pan
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	Cover, Front
39	Retainer
40	Insulation
