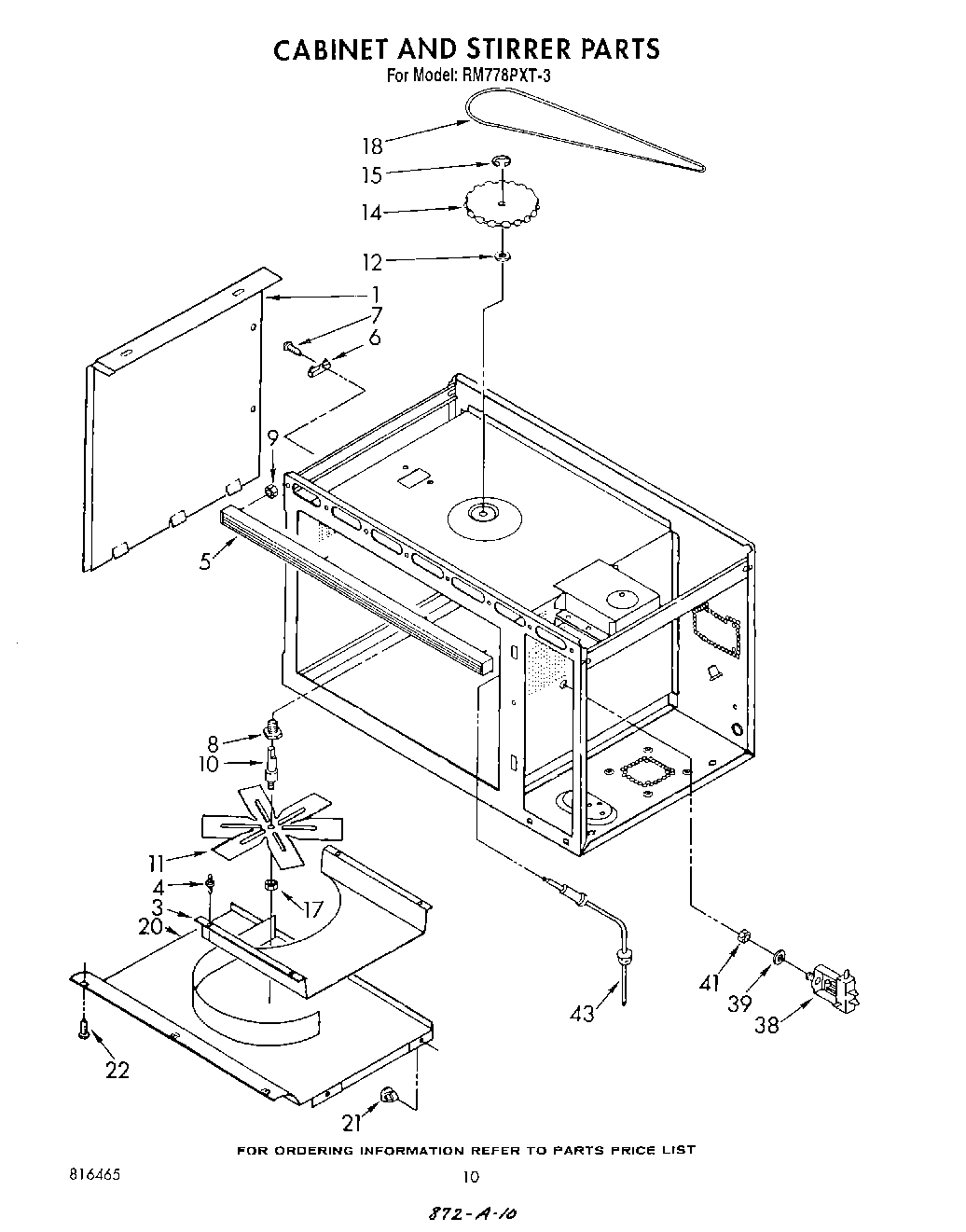

RM778PXT3 07 – CABINET AND STIRRER

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cover, Side
3	Plate, Tuning
4	Support (4)
5	Grill, Air (Black Model)
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
9	Nut (3)
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
21	Fastener (4)
22	screw, 8-32 x 1/2 (3)
38	Probe Jack
39	Washer, Internal Lock
41	Nut
43	Probe, Temperature
