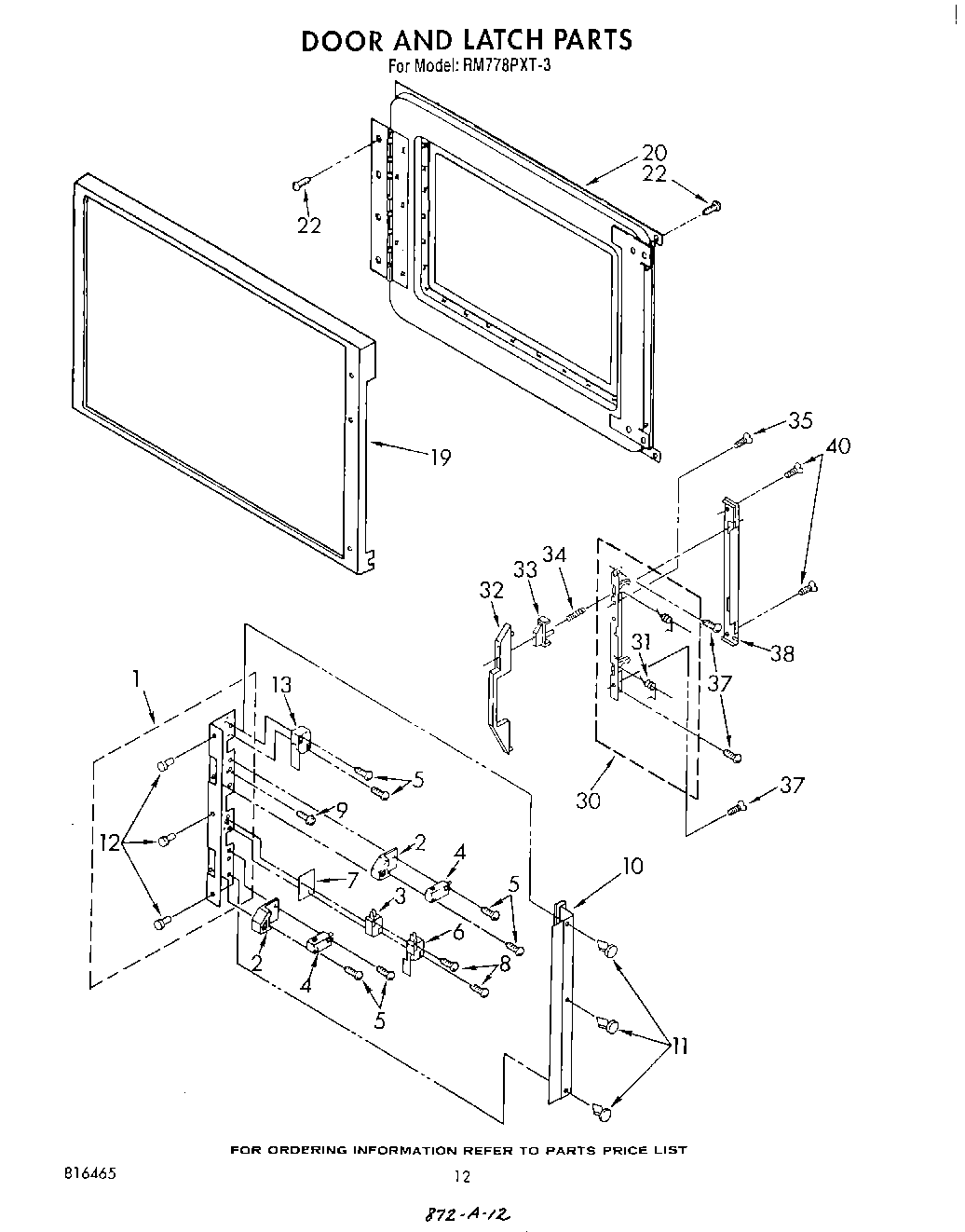

RM778PXT3 09 – DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
1	screw
2	Catch (2)
3	Switch (Alt.)
3	Spring
3	Switch
4	814037 Whirlpool Microwave Switch
5	WPL 312717
6	Switch, Light Monitor (Alt.)
6	Switch, Light/ Monitor
6	Switch, Light Monitor (Alt.)
7	Insulator
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (4)
12	Rivet, Pop (3)
13	Switch, Miniature
19	Frame, Door
20	Door, Inner
22	WPW10068250 Whirlpool Dishwasher Screw
30	Latch Assembly
31	Spring, Torsion (2)
31	303776 Whirlpool Dishwasher Screw
32	Handle, Door
33	313611 Whirlpool Microwave Door Button
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	Screw (2)
37	WP489128 Whirlpool Refrigerator Screw
38	End Cap
40	Screw, 8-22 (5)
