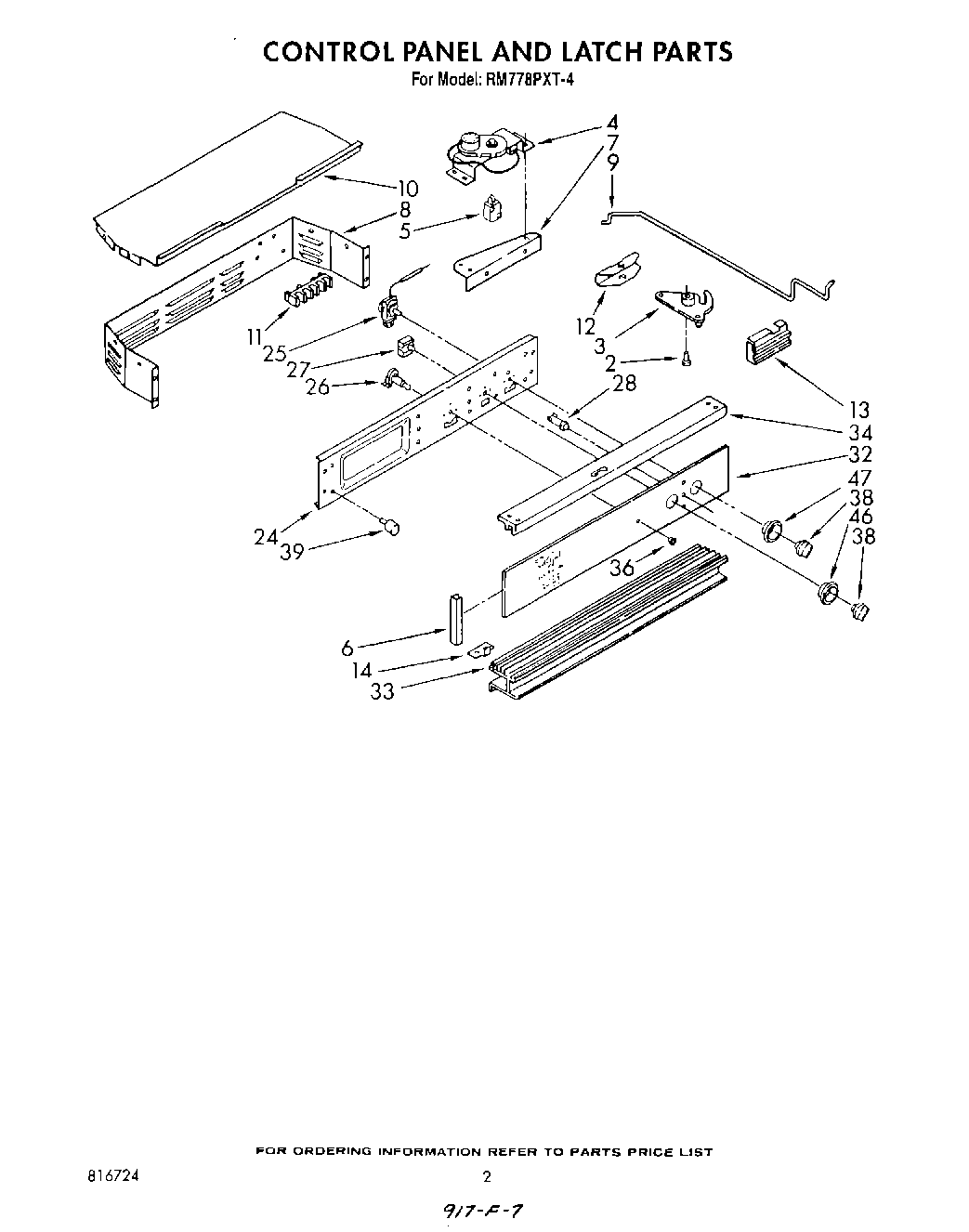

RM778PXT4 02 – CONTROL PANEL AND LATCH

Products

Position	Product
2	Pin, Hinge (2)
3	Latch, Door
4	Motor, Latch Assembly
5	Switch, Latch (2)
6	Trim, Control Panel
7	Plate, Motor Mounting
8	Housing, Control
8	WP308685 Whirlpool Microwave Screw
9	Rod, Latch Support
10	Cover, Housing
11	Screw, 10-16 x 1 (2)
11	WP8203546 Whirlpool Terminal Block
12	Housing, Latch
13	Cover, Latch
14	Bracket, Trim Mounting
24	Bracket, Control
25	Thermostat, Oven
26	Switch, Oven Light
27	Switch, Oven Selector
28	Indicator Light (Clean)
28	Indicator Light (2) (Lock, Oven)
32	Panel, Glass (Control)
33	Trim, Vent
33	Screw, 10-24 x 3/8 (2)
34	Trim, Top
34	Deflector, Heat (Screw, No.6x18x1/4 (3))
36	Bezel, Switch (Black)
38	WP3150371 Whirlpool Control Knob
39	Bumper, Cooktop (4)
46	WP311068 Whirlpool Dial Knob Black
47	Escutcheon, Thermostat Upper Oven
47	Screw, 8-32 x 3/16 (2)
