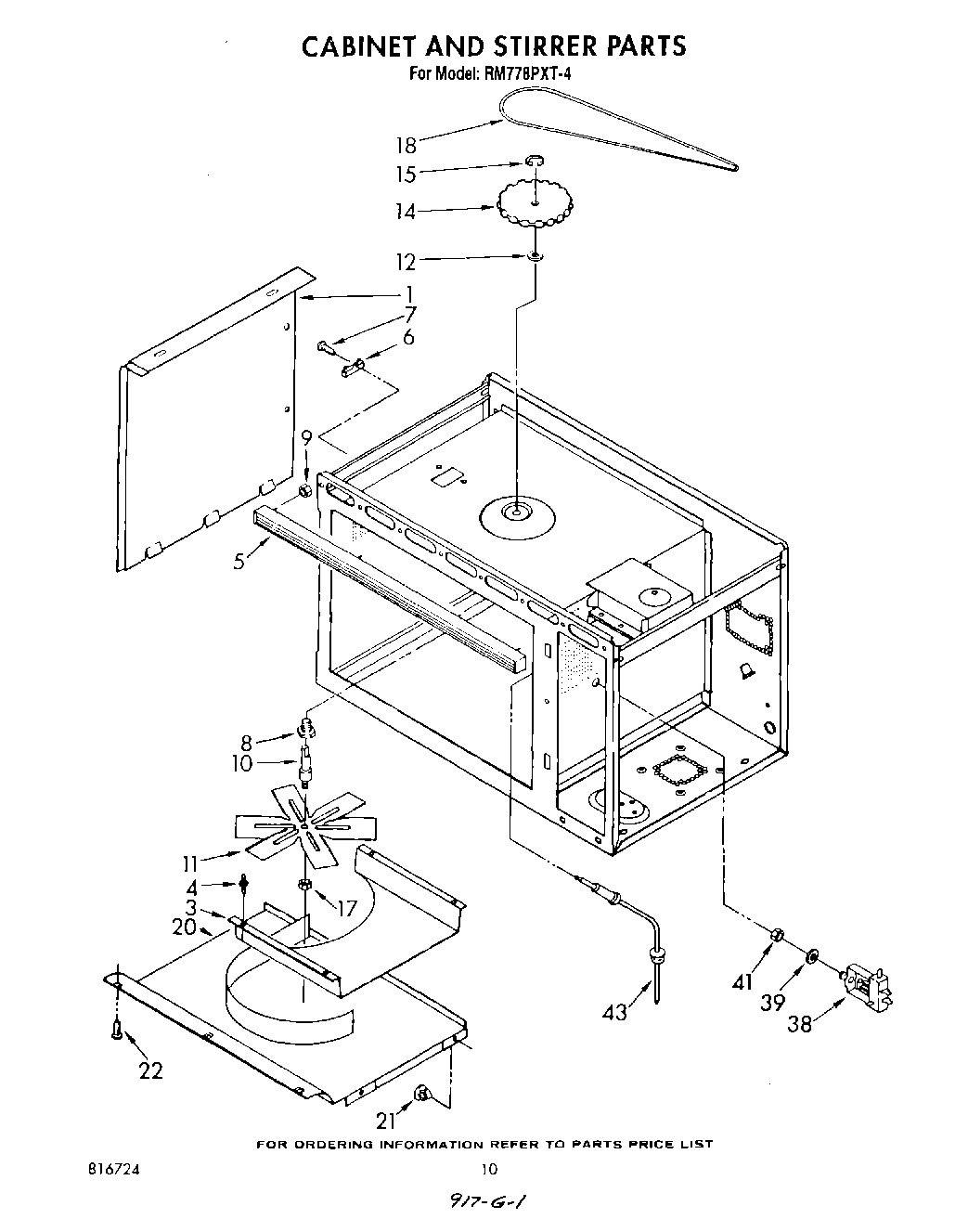

RM778PXT4 07 – CABINET AND STIRRERadmin2025-04-26T12:08:07+00:00RM778PXT4 07 – CABINET AND STIRRER
Products
| Position | Product |
|---|
| 1 | WP488729 Whirlpool Refrigerator Door Screw |
| 1 | Cover, Side |
| 3 | Plate, Tuning |
| 4 | Support (4) |
| 5 | Grill, Air (Black Model) |
| 6 | Fuse, Thermal |
| 7 | screw |
| 8 | Bushing, Stirrer |
| 9 | Nut (3) |
| 10 | Shaft, Stirrer |
| 11 | Stirrer Blade |
| 12 | Washer, Nylon |
| 14 | Pulley, Stirrer Blade |
| 15 | ``E`` Ring |
| 17 | WP487939 Whirlpool Refrigerator Nut |
| 18 | WP313646 Whirlpool Microwave Drive Belt |
| 20 | Silicone Rubber Gasket |
| 21 | Fastener (4) |
| 22 | screw, 8-32 x 1/2 (3) |
| 38 | Probe Jack |
| 39 | Washer, Internal Lock |
| 41 | Nut |
| 43 | Probe, Temperature |
