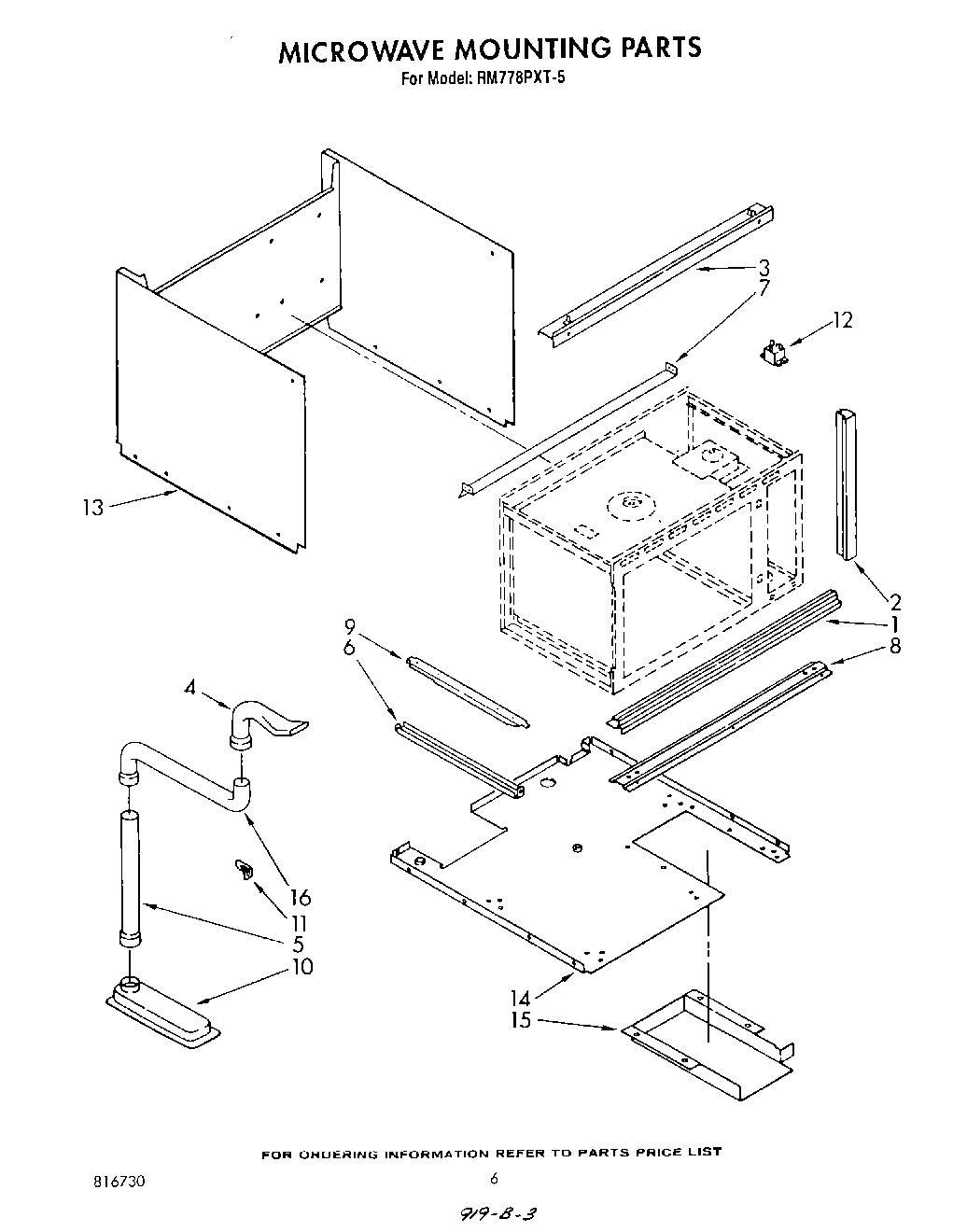

RM778PXT5 05 – MICROWAVE MOUNTING

Products

Position	Product
1	Extrusion, Bottom
2	Extrusion, Side (2)
3	Extrusion, Top
4	Duct, Oven Vent
5	Tube, Vent
6	Channel, Slide (2)
7	Retainer, Microwave
8	Support, Bottom (2)
9	Channel, Slide (2)
10	Duct, Oven
11	Bracket, Vent Tube
12	Power Relay
13	Casing, Back and Sides
14	Casing, Bottom
15	Duct, Air
16	Vent Tube
