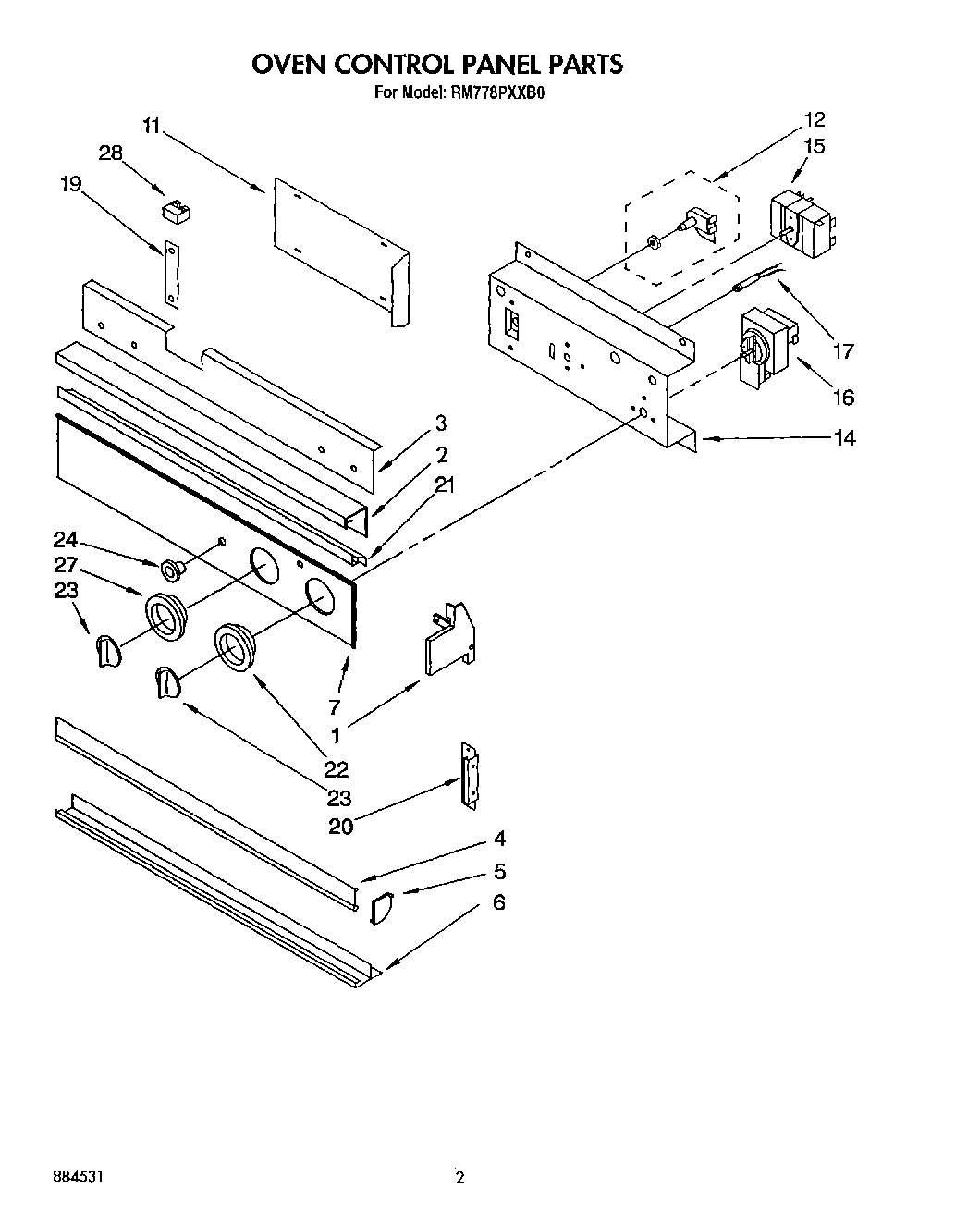

RM778PXXB0 02 – OVEN CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:06:50+00:00RM778PXXB0 02 – OVEN CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT3149228 |
| WPL LIT3149232 |
| WPL LIT3147571 |
| WPL LIT3181680 |
| Cook |
| WPL LIT3181730 |
| WPL LIT3182395 |
| WPL LIT3181731 |
| WPL LIT884531 |
| WPL LIT3147573 |
| 1 | End Cap (Right Hand) |
| 1 | End Cap (Left Hand) |
| 2 | Trim, Top (Black Model) |
| 2 | Trim, Top (White Model) |
| 2 | screw |
| 3 | Trim, Oven Vent |
| 4 | Door, Vent (White Model) |
| 4 | Door, Vent (Black Model) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Trim, Bottom |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | Glass, Control (Black) |
| 7 | Glass, Control (White Panel) |
| 11 | Guard, Control Panel |
| 12 | Switch, Oven Light (White) |
| 12 | Switch, Oven Light |
| 14 | Plate, Mounting (Controls) |
| 15 | Switch, Selector |
| 16 | Thermostat, Oven |
| 16 | WP486579 Whirlpool Air Conditioner Screw |
| 17 | Indicator Light, Oven (Lower Oven) |
| 19 | Rail, Mounting (For Rubber Insert) |
| 20 | Trim, Outer (2) |
| 21 | Trim, Control (2) |
| 21 | WP90767 Whirlpool Screw |
| 22 | Escutcheon, Selector Switch |
| 22 | Escutcheon, Oven Thermostat |
| 23 | Knob, Control (2) |
| 23 | WP3150371 Whirlpool Control Knob |
| 24 | Bezel, Switch (White) |
| 24 | Bezel Switch (1) |
| 27 | Screw, |
| 27 | Escutcheon, Oven Thermostat |
| 27 | Escutcheon, Selector Switch |
| 28 | WPL 3181386 |
