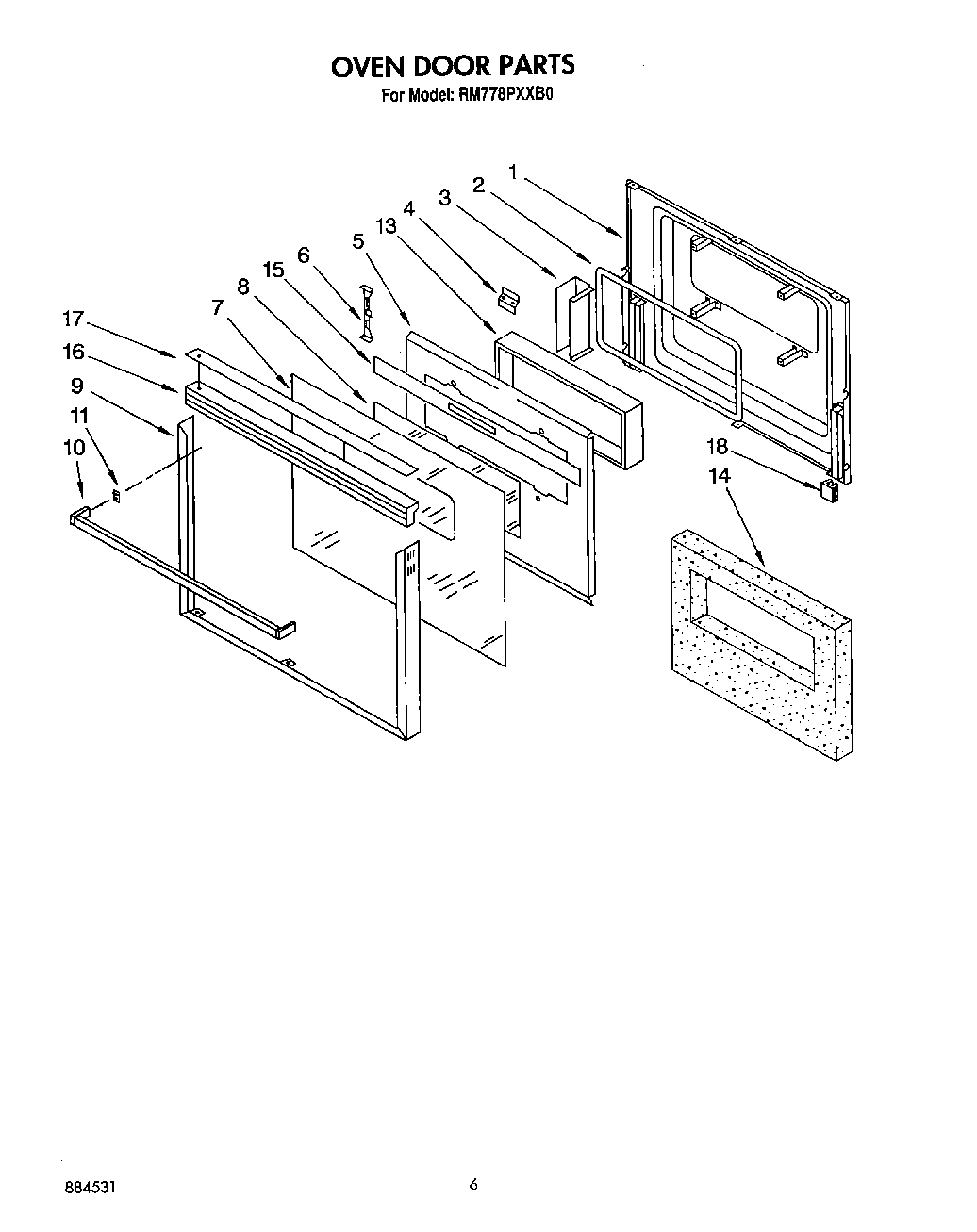

RM778PXXB0 05 – OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
5	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door
10	Handle, Door (White Model)
10	Screw
10	WP355515 Whirlpool Screw
11	Clip, Mtg (2)
13	Window Package
13	Screw (5)
14	Insulation, Door
15	Shield, Door
16	Trim, Door
16	Trim, Door (White Model)
17	Vent, Lower Trim (Screw (2))
17	Cap, Top (White Model Only)
18	Bumper, Door Glass
