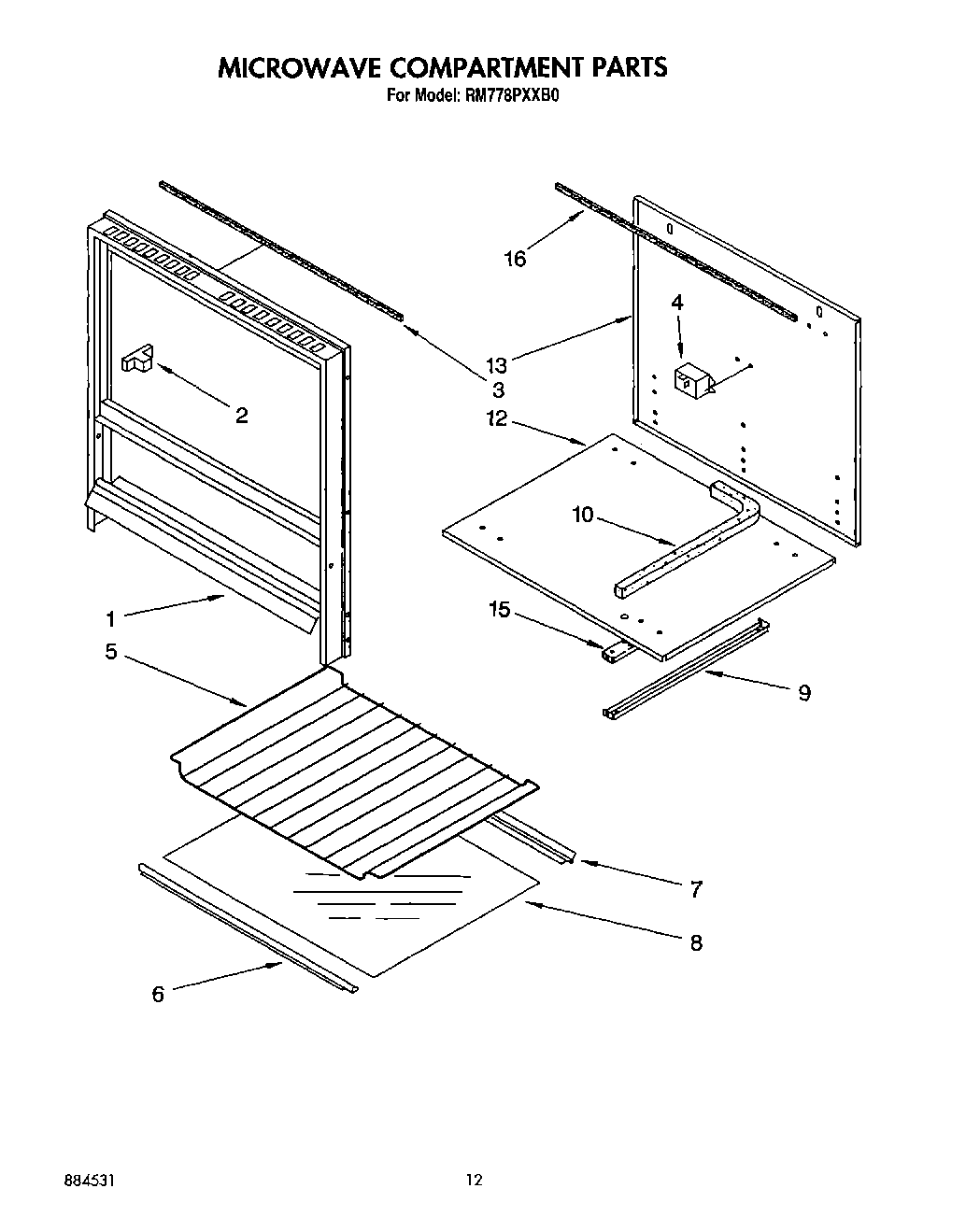

RM778PXXB0 09 – MICROWAVE COMPARTMENTadmin2025-04-26T12:05:51+00:00RM778PXXB0 09 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | Frame, Outer (White Model) |
| 1 | Frame, Outer (Black Model) |
| 2 | Block, Foam |
| 3 | Seal, Foam (Top) (Black Model) |
| 3 | Seal, Foam (Top) (White or Almond Model) |
| 4 | Door, Latch Handle (Screw (2)) |
| 4 | Relay, Vent (24V, Clear) |
| 5 | rack, wire |
| 6 | Trim, Shelf (Front) |
| 7 | Trim, Shelf (Rear) |
| 8 | Shelf, Microwave (Install with Silastic 482338) |
| 9 | Rail, Microwave |
| 10 | Seal, Foam |
| 12 | Support, Module |
| 13 | Back, Microwave Compartment |
| 15 | Rail, Chassis |
| 15 | WP90767 Whirlpool Screw |
| 16 | Seal, Foam |
