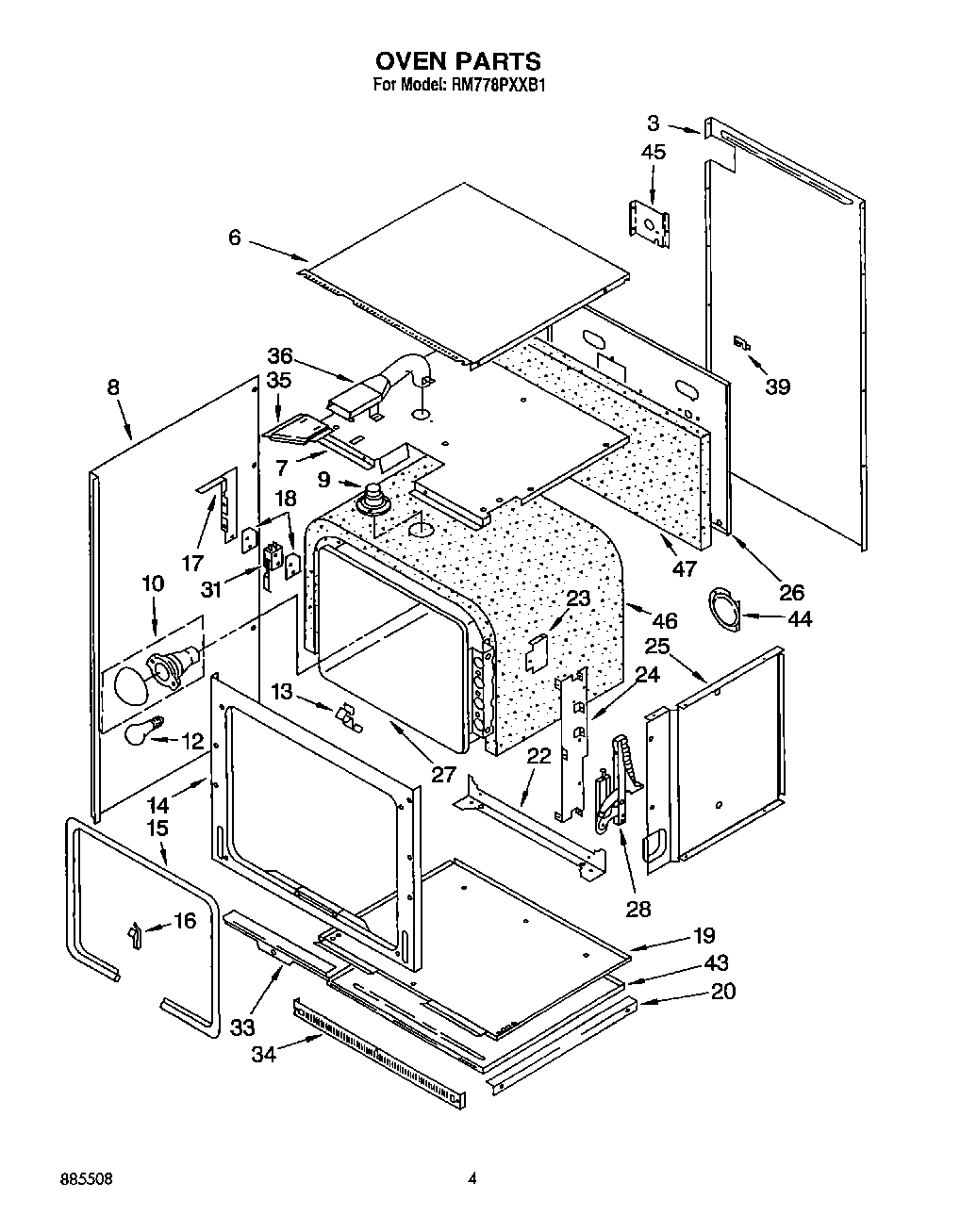

RM778PXXB1 03 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (Right Hand)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
15	Screw (4)
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
24	Screw (6)
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	Screw (3)
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (White Model)
35	Tube, Vent
36	Vent, Tube (Upper, Male)
36	WP90767 Whirlpool Screw
39	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
