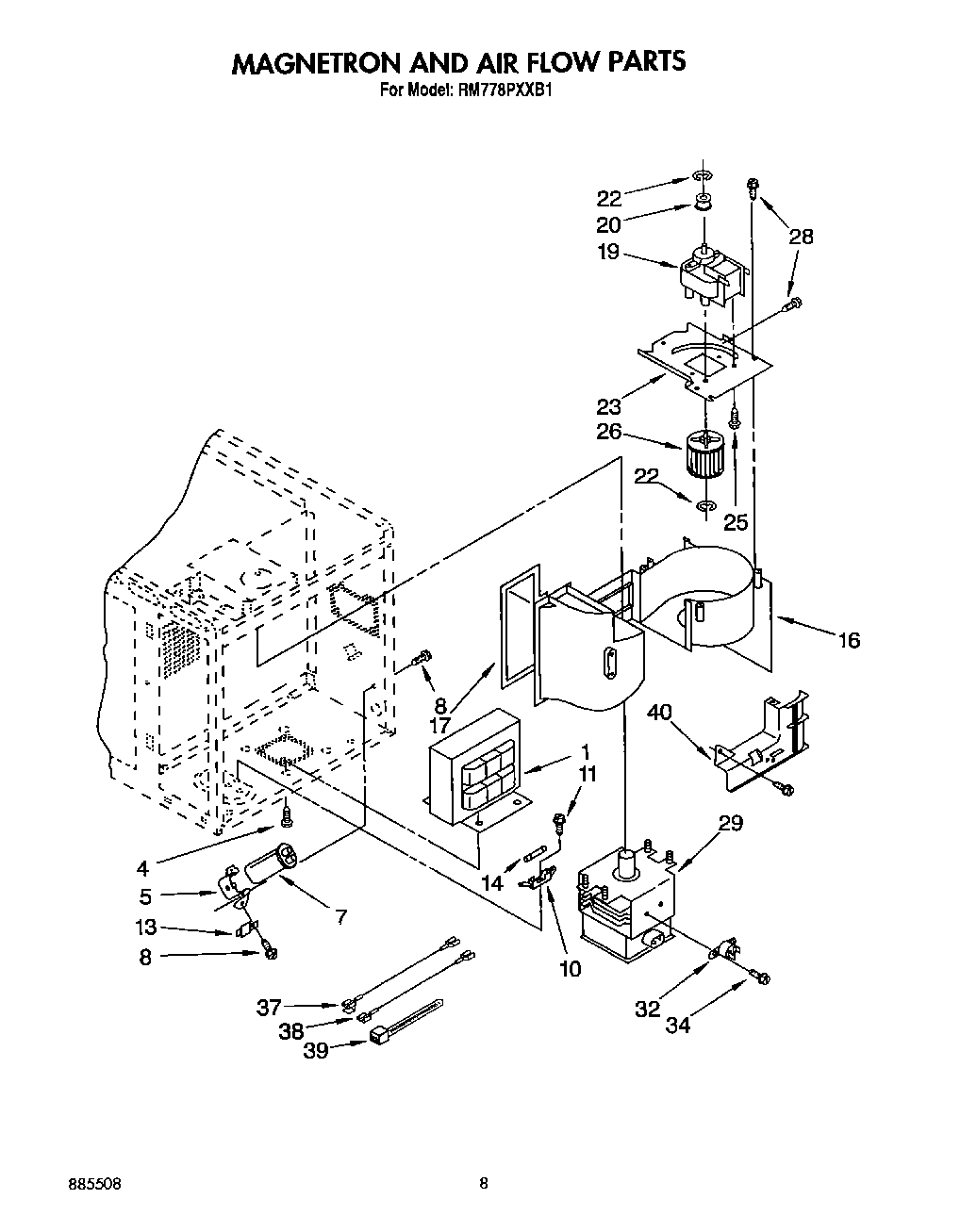

RM778PXXB1 07 – MAGNETRON AND AIRFLOW, OPTIONAL

Products

Position	Product
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
7	Capacitor
10	4454949 Whirlpool Oven Fuse Block
11	screw
13	Rectifier, High Voltage
14	WPW10017410 Whirlpool Fuse
16	Air Duct (Horizontal)
17	Seal, Air Duct
19	Transmotor
20	Pulley, Motor
22	“E“ Ring
23	Bracket, Motor
25	WP486579 Whirlpool Air Conditioner Screw
26	Wheel, Blower
29	Magnetron
32	Thermal Protector
34	Screw, 6A x 3/8 (2)
37	High Voltage Lead, Gray 6-3/4“ (2)
38	Jumper, High Voltage Red (6-5/16“)
39	WPW10339879 Whirlpool Wire Tie
40	WPL 3171507
40	1
40	WPL 350806
40	WPL 591014
40	WPL 832985
40	WP482338 Whirlpool Refrigerator Adhesive
40	Screw, 11-16 x 1/2 Double Load Space Thread (5)
40	WPL 786020
40	Extension, Air Duct
40	72113 Whirlpool Touch-Up Paint
40	WPL 786032
40	261900 Whirlpool Microwave Spray
40	Wire (14 Ga. 200 c Brown)
40	18 Ga. 80~c Rating (Red)
40	Wire (12 Ga. 150 c Black)
40	Platinum (Uncut)
40	Enamal, Toast (1 Qt. Uncut)
40	Paint, Spray (13 Oz.) (Platinum)
40	Toast
40	Golden Harvest (Uncut)
40	Golden Harvest
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Almond (Uncut)
40	Leveler (Thinner)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	WPL 72112
40	350942 Whirlpool Spray Paint
40	Wire (14 Ga. 150 c Yellow)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Green)
40	Wire (14 Ga. 150 c Brown)
40	Wire (14 Ga. 150 c Blue)
40	WP261869 Whirlpool Microwave Paint
40	242831 Whirlpool Oven Wire
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	WPL 799832
40	350930 Whirlpool White Spray Paint
