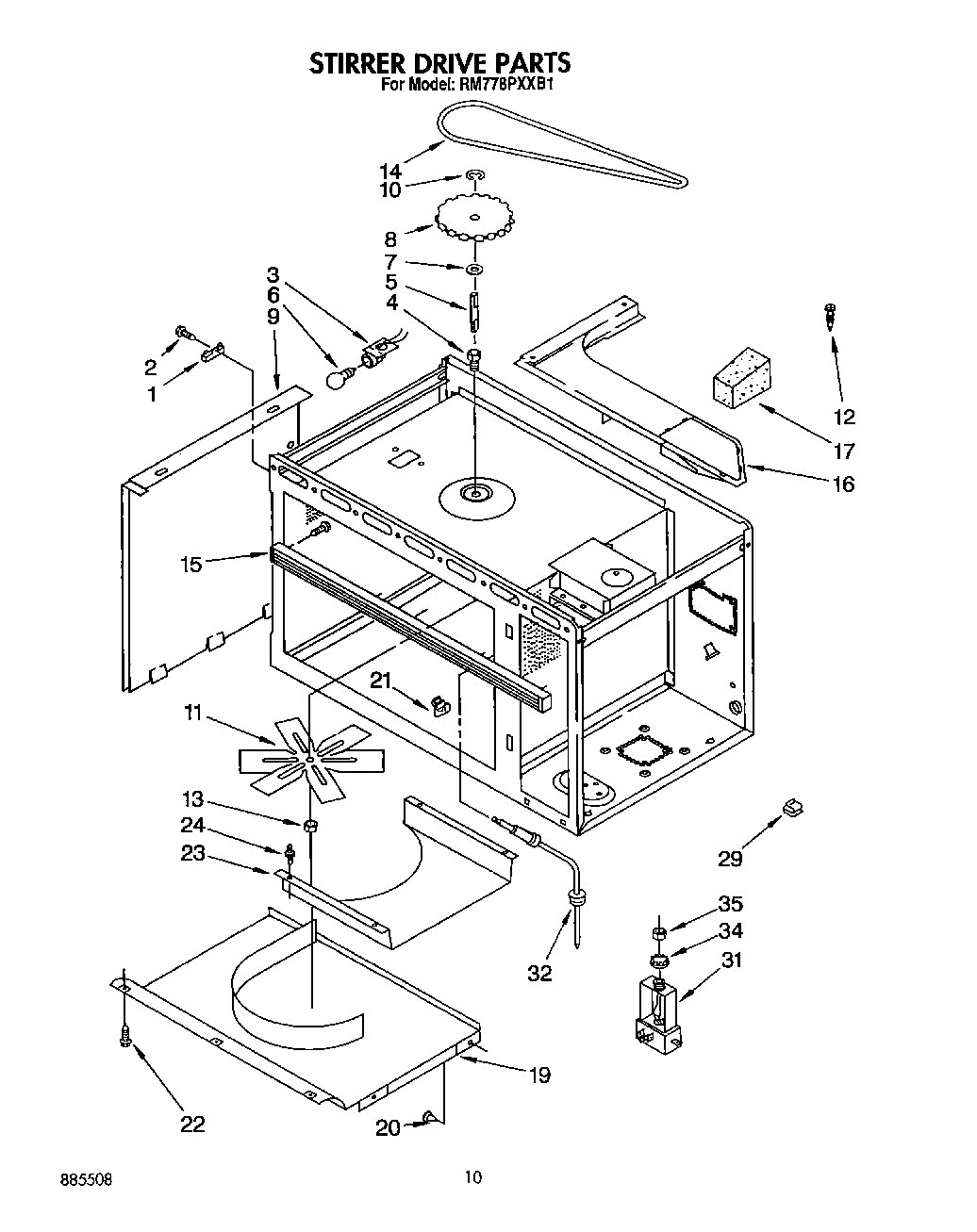

RM778PXXB1 08 – STIRRER DRIVEadmin2025-04-26T12:07:26+00:00RM778PXXB1 08 – STIRRER DRIVE
Products
| Position | Product |
|---|
| 1 | Fuse, Thermal |
| 3 | WPW10068250 Whirlpool Dishwasher Screw |
| 3 | Snap-In Socket |
| 4 | Bushing, Stirrer |
| 5 | Shaft, Stirrer |
| 6 | WP3395618 Whirlpool Light Bulb |
| 7 | Washer, Nylon |
| 8 | Pulley, Stirrer Blade |
| 9 | Screw (5) |
| 9 | Cover, Side |
| 10 | ``E`` Ring |
| 11 | Stirrer Blade |
| 12 | Fastener (2) |
| 13 | WP487939 Whirlpool Refrigerator Nut |
| 14 | WP313646 Whirlpool Microwave Drive Belt |
| 15 | screw (3) |
| 15 | Grill, Air (White) |
| 15 | Grill, Air (Black Model) |
| 16 | Baffle, Air |
| 17 | Seal, Foam |
| 19 | Silicone Rubber Gasket |
| 20 | Fastener (4) |
| 21 | WP3149478 Whirlpool Microwave Support |
| 22 | screw, 8-32 x 1/2 (3) |
| 23 | Plate, Tuning |
| 24 | Support (4) |
| 29 | Clip |
| 29 | screw |
| 31 | Screw 8-32 X 1/2 |
| 31 | Probe Jack |
| 32 | (Alt.) |
| 34 | Washer, Internal Lock |
| 35 | Nut |
