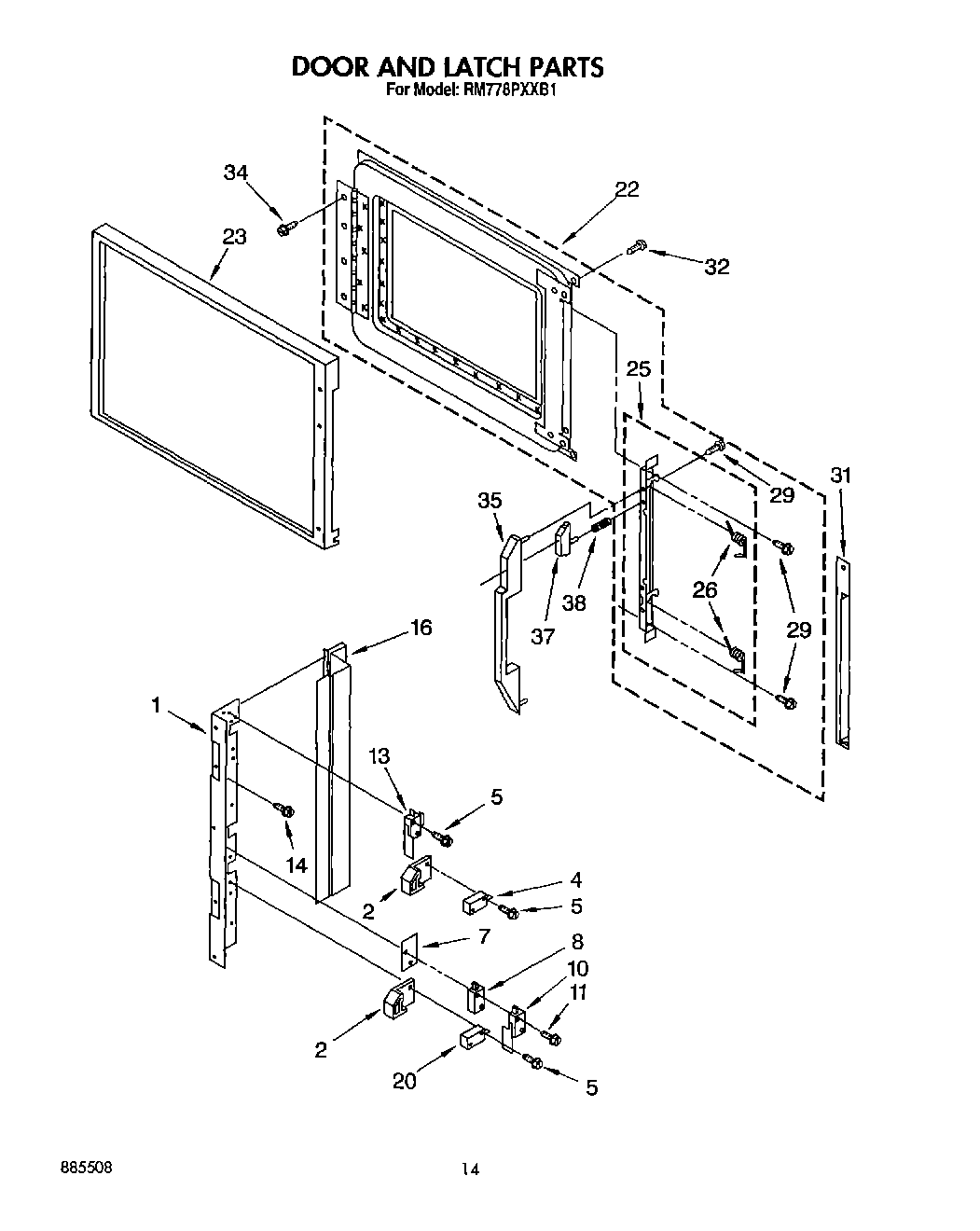

RM778PXXB1 11 – DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
5	WPL 312717
7	Insulator
8	Switch
10	Switch, Light/ Monitor
11	Screw, 4-40 x 10 (2)
13	Switch, Miniature
14	WPL 309080
16	Shield
20	814037 Whirlpool Microwave Switch
22	Door, Inner
22	Inner Door Asm. (White Unit)
23	Frame, Door (White Model)
23	Frame, Door (Black Model)
25	Latch Assembly
26	Spring, Torsion (2)
29	Screw (2)
31	End Cap (White)
31	End Cap
32	Screw, 8-22 (5)
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
35	Handle, Door (White)
37	Button, Door Handle
37	Button, Door Handle (White)
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
