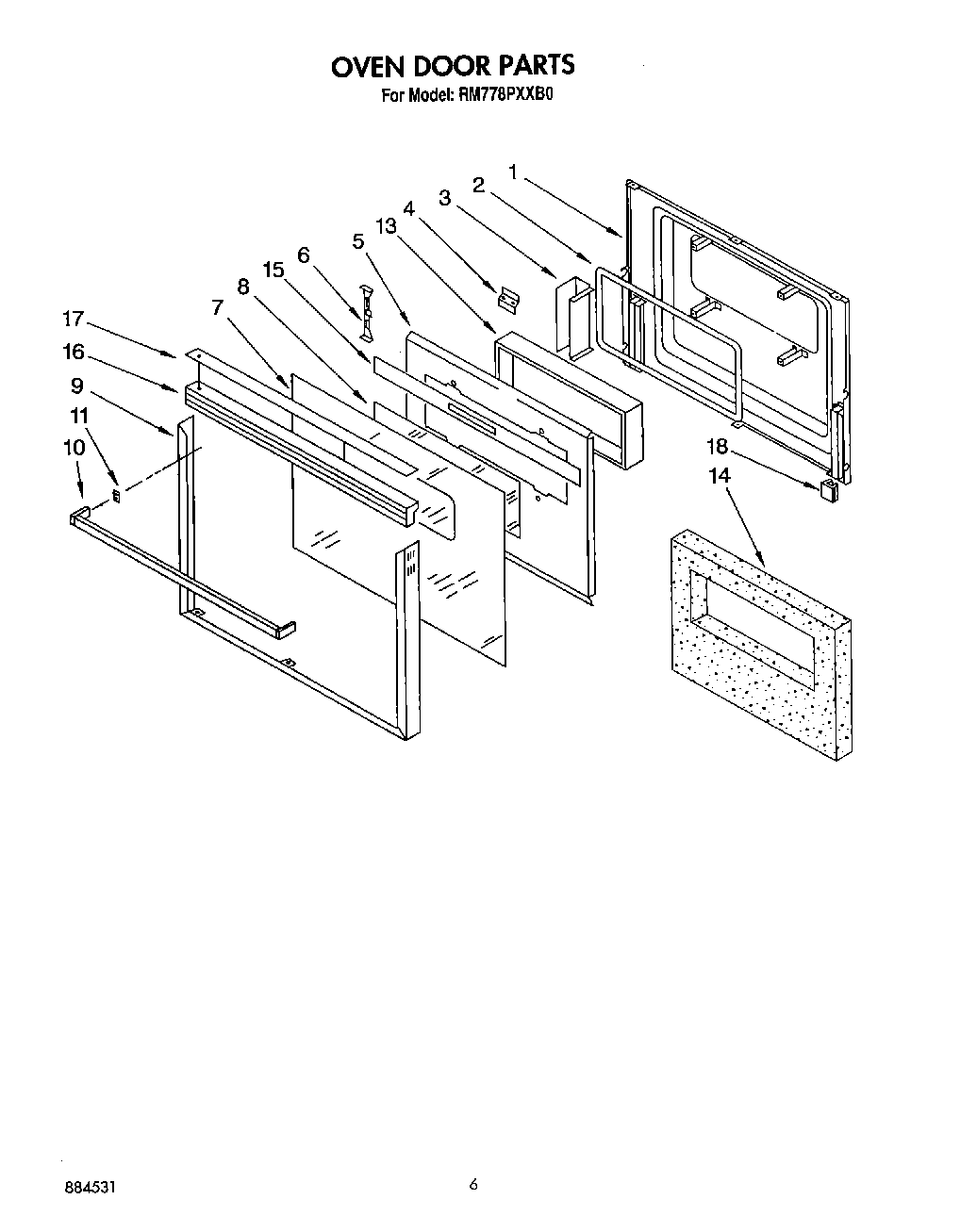

RM778PXXQ0 05 – OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
5WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door
10Handle, Door
10Handle, Door (White Model)
10Screw
10WP355515 Whirlpool Screw
11Clip, Mtg (2)
13Window Package
13Screw (5)
14Insulation, Door
15Shield, Door
16Trim, Door
16Trim, Door (White Model)
17Vent, Lower Trim (Screw (2))
17Cap, Top (White Model Only)
18Bumper, Door Glass
