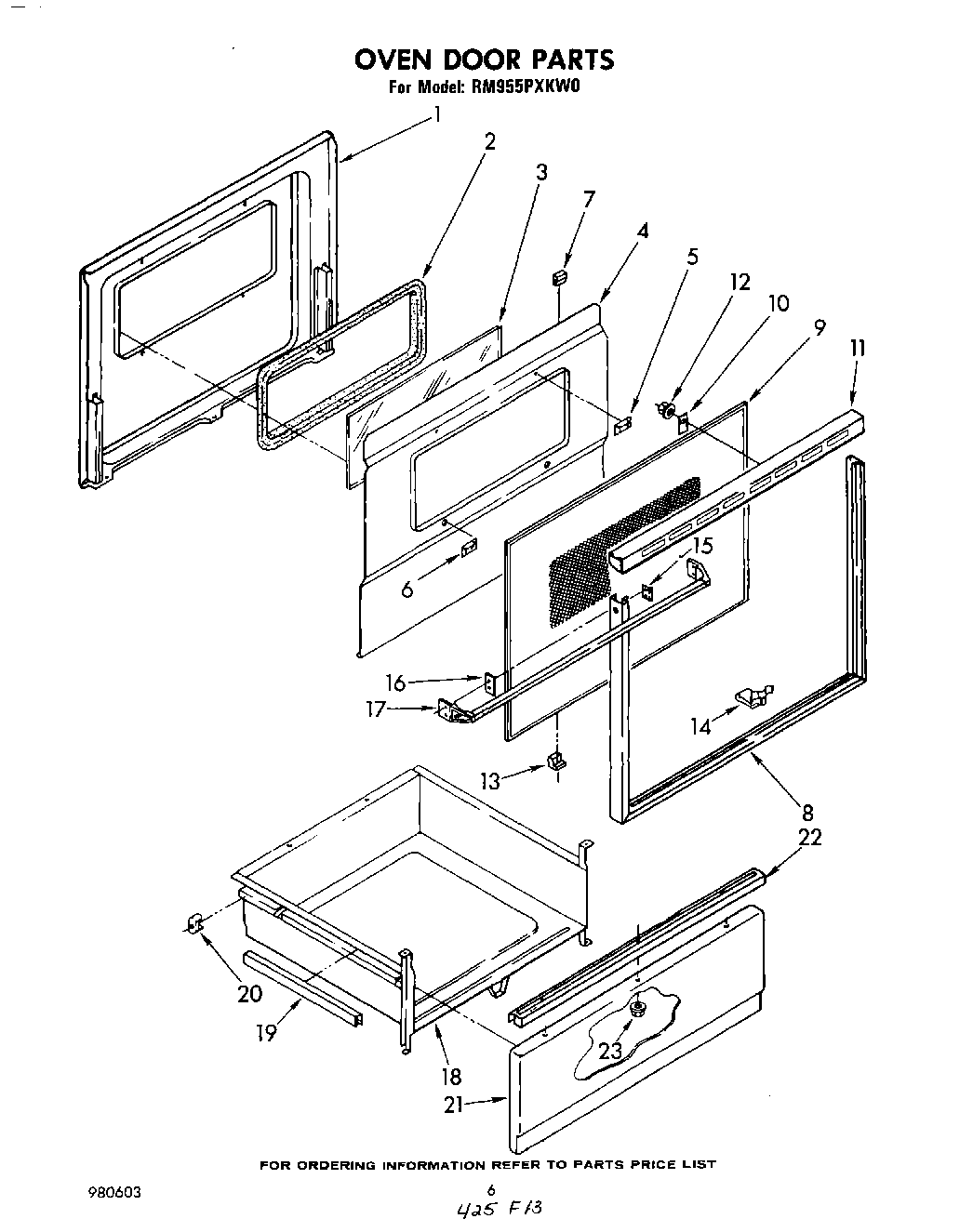

RM955PXKW0 04 – OVEN DOOR

Products

Position	Product
1	Clip (2)
1	Liner, Door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	spacer, insulation baffle (4)
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	WP90296 Whirlpool Clip
13	Cushion, Oven Door (3)
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	Handle, Oven Door
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	WP308685 Whirlpool Microwave Screw
21	Panel Drawer (Harvest Gold)
21	Panel Drawer (Black)
21	Panel, Drawer (Almond)
21	Panel, Drawer (Screw, 8-32 (3))
21	Panel Drawer (White)
22	Handle, Drawer
22	WP912618 Whirlpool Dishwasher Screw
23	WP486255 Whirlpool Air Conditioner Nut
