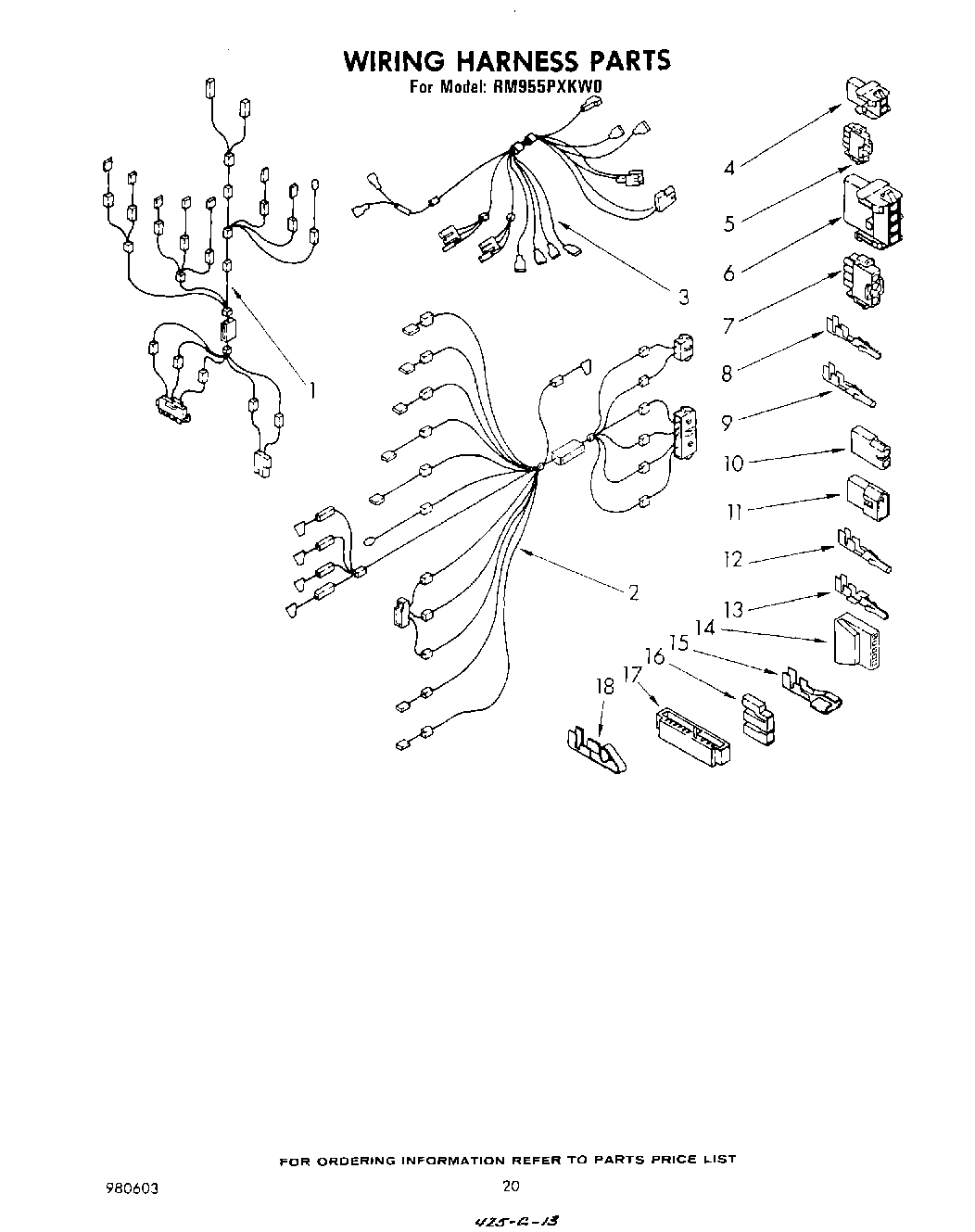

RM955PXKW0 11 – WIRING HARNESSadmin2025-04-26T12:09:08+00:00RM955PXKW0 11 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Harness, Main |
| 2 | Harness, Control Panel |
| 3 | Harness, Interlock |
| 4 | cap, terminal (uses 310222 or 310223 pin terminal) |
| 5 | plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal) |
| 6 | Disconnect Block, Female |
| 7 | Disconnect Block (4 Terminal) |
| 8 | Harness, Wiring (Connector (11)) |
| 9 | Harness, Wiring (Connector (6)) |
| 10 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 11 | WP717253 Whirlpool Dishwasher Connector |
| 12 | WP94614 Whirlpool Terminal |
| 13 | WP596797 Whirlpool Terminal |
| 14 | Connector, Housing Relay |
| 15 | Term Or |
| 16 | Housing, Plug |
| 17 | WPL 309606 |
| 18 | Terminal |
