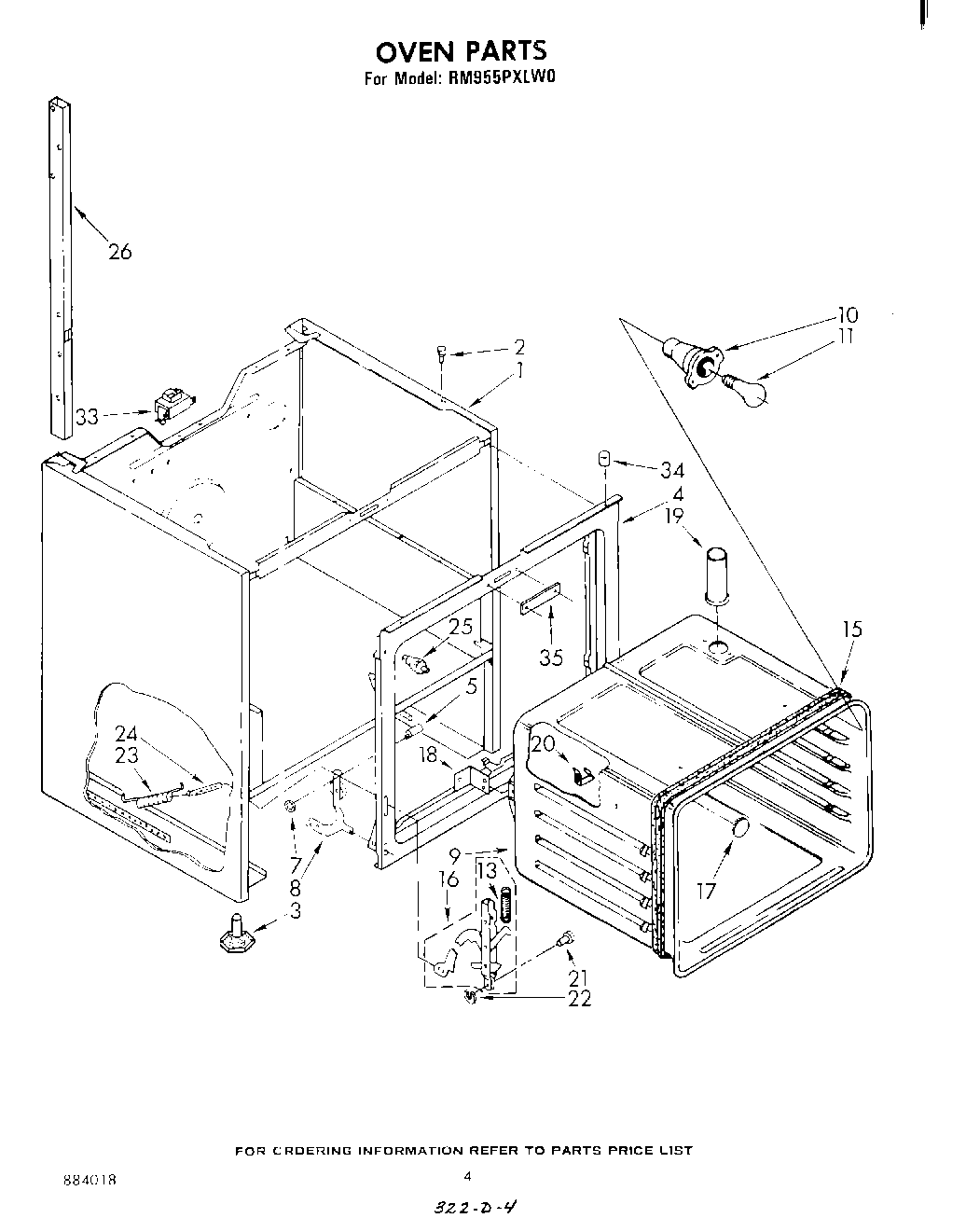

RM955PXLW0 03 – OVEN

Products

Position	Product
1	Griddle Cover (Almond 1633L1A, L2A)
1	main chassis (almond)
1	Lining-Compartment Door (16331A,2A
2	238614 Whirlpool Bumper Hinge
3	WP233550 Whirlpool Leveling Feet
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	SCREW
8	Hinge (R.H.)
8	Hinge (L.H.)
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
13	Spring, Door Stop
15	Heat Seal
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	vent, oven
19	WP308685 Whirlpool Microwave Screw
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing L.H.
26	Support, Tubing R.H.
33	Ballast (Alt.)
33	Ballast (Alt.)
34	Screw, 8-32 x 5/16 (2)
34	locator, cooktop
35	Screw
35	Plate Cover
