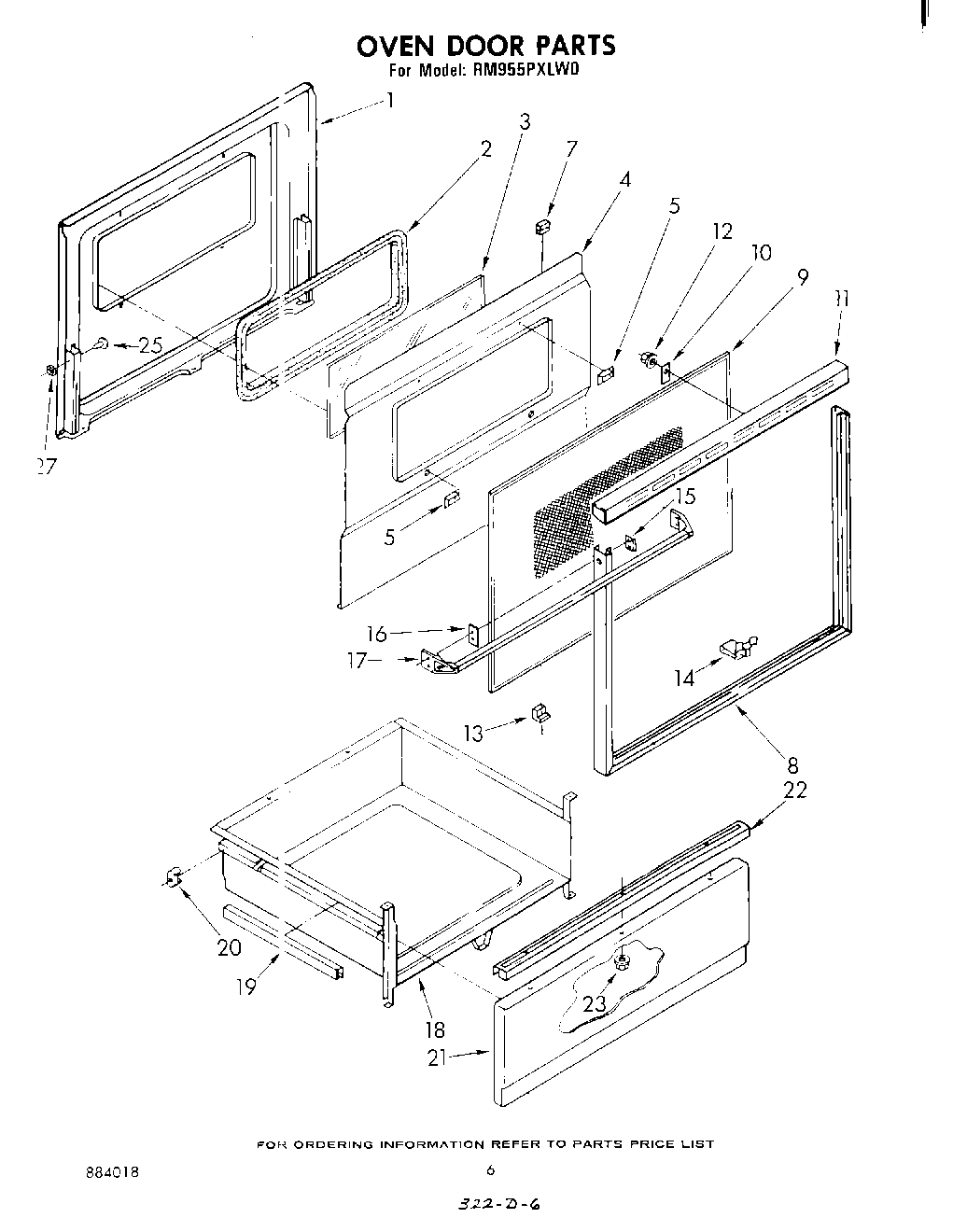

RM955PXLW0 04 – OVEN DOOR

Products

Position	Product
1	Clip (2)
1	liner, door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	Handle, Oven Door
17	WP912618 Whirlpool Dishwasher Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	WP308685 Whirlpool Microwave Screw
21	Panel Drawer (Black)
21	Panel, Drawer (Screw, 8-32 (3))
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel Drawer (Harvest Gold)
22	Handle, Drawer
23	WP486255 Whirlpool Air Conditioner Nut
25	pin, wedge (2)
27	pushnut (2)
