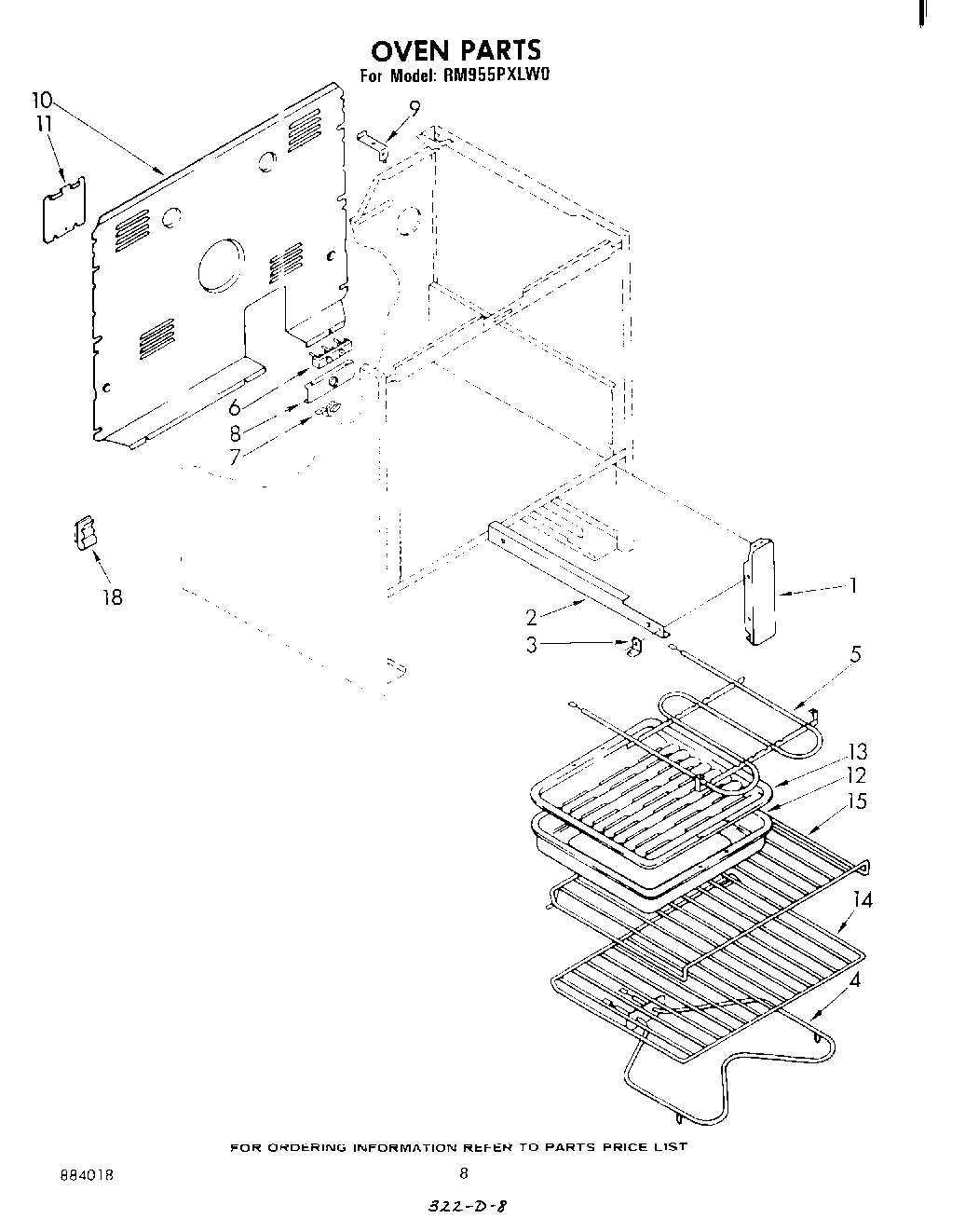

RM955PXLW0 05 – OVEN (CONTINUED)

Written by

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
2	WP308685 Whirlpool Microwave Screw
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	W10841059 Whirlpool Screw
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	SCREW
8	Bracket, Service
9	WPL 309102
10	Cover, Rear
11	Cover, Service
11	WP308544 Whirlpool Screw
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
18	WPL 309211
