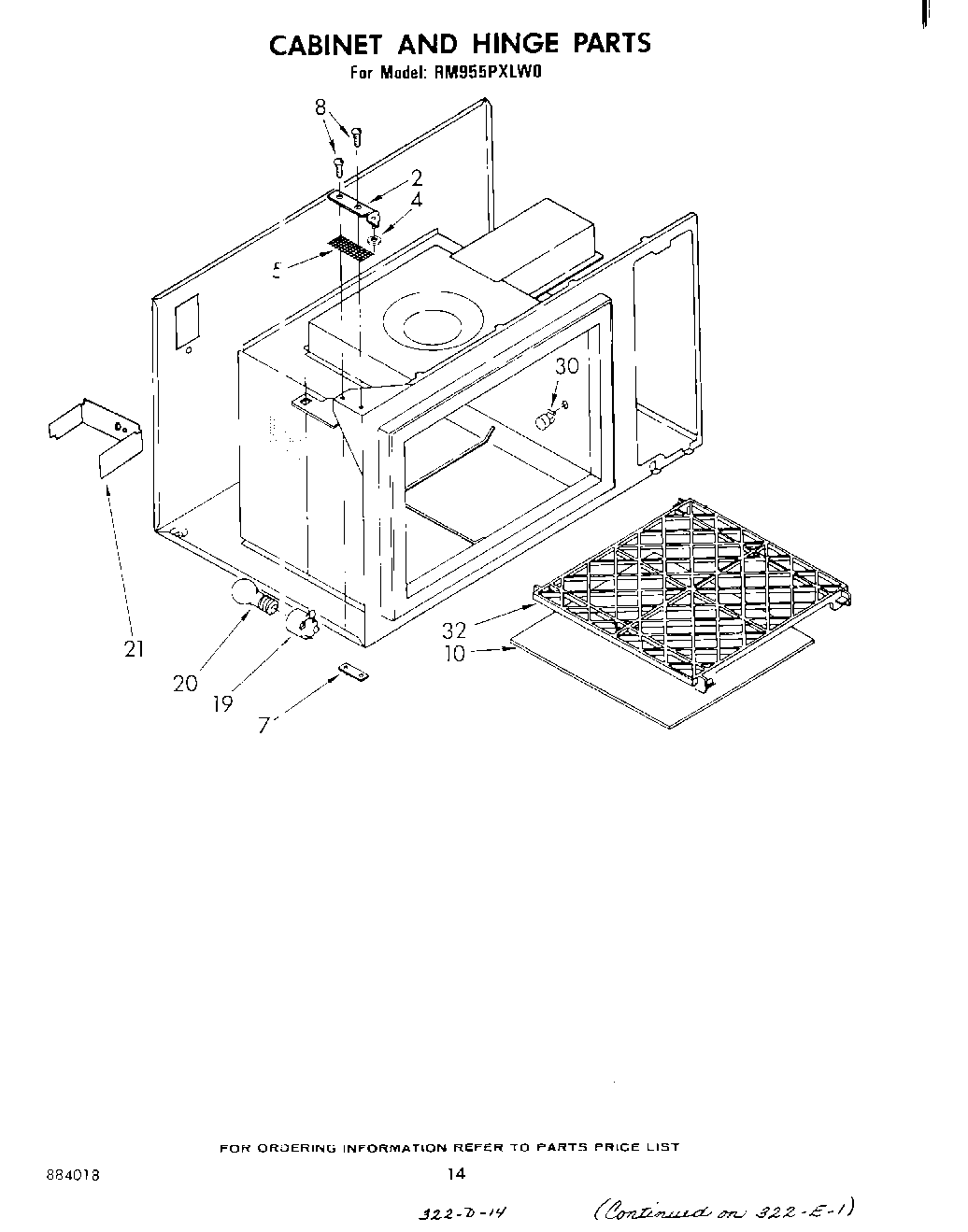

RM955PXLW0 08 – CABINET AND HINGE

Products

Position	Product
2	hinge door (bottom)
2	hinge door (top)
4	WPL 312147
5	Hinge, Shim Locking (2)
7	plate, hing (2) (top & bottom)
8	screw, oval head (4)
10	Base, Ceramic (Install W/Silastic No. 482338)
10	Shelf, Microwave (Alt.) (Install W/Silastic No. 482338)
10	Shelf, Microwave (Alt.)
19	Socket, Snap-In
20	RANGE ONLY 40W 120V APPL BULB
21	Shield, Lamp
21	panel, top (screw, 10a x 3/8 (3))
30	Support, Shelf (4)
32	rack, oven
