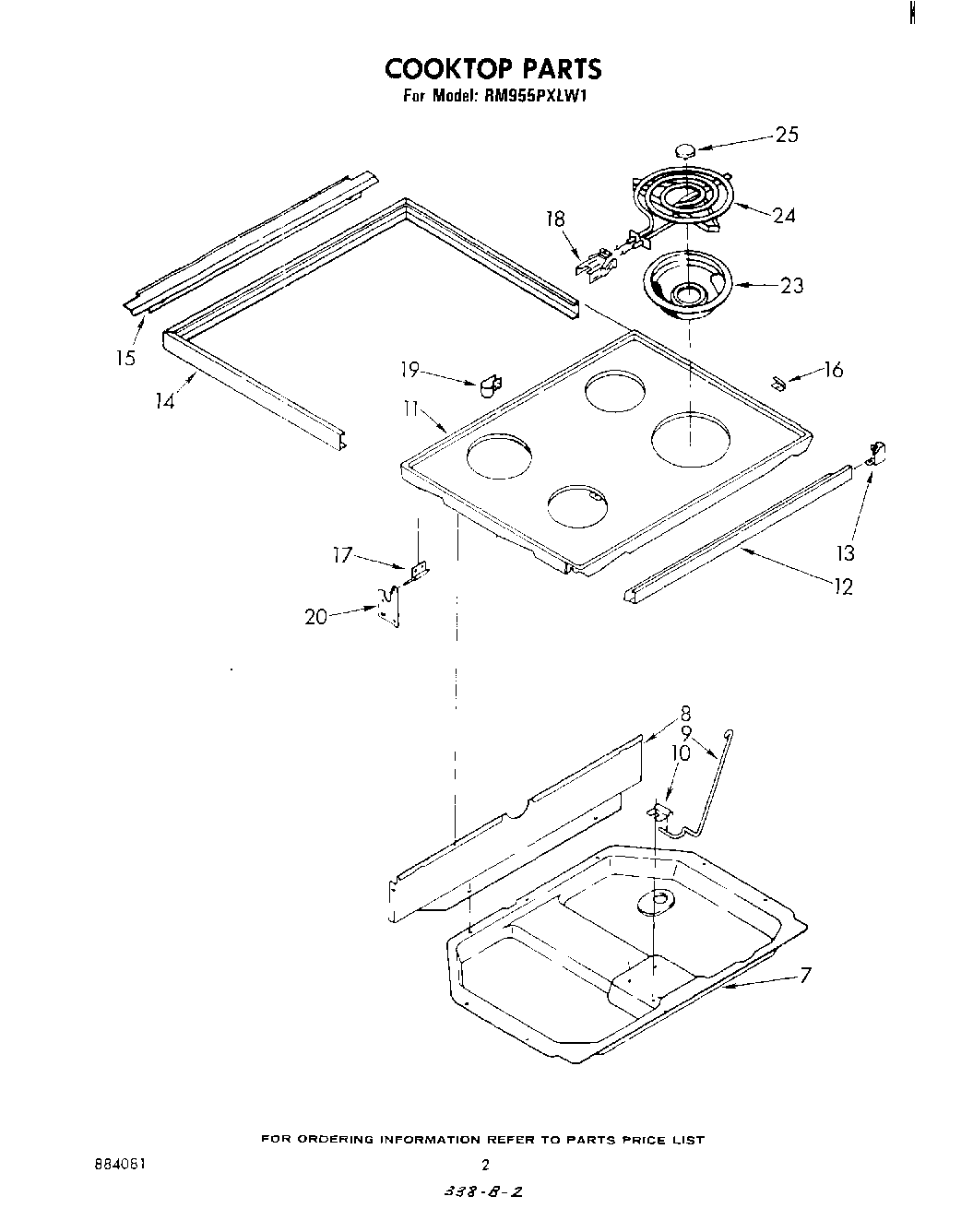

| 7 | burner box |
| 8 | Shield, Wiring |
| 9 | Rod, Cooktop |
| 9 | SCREW |
| 10 | Retainer, Cooktop |
| 10 | WP3390631 Whirlpool Screw |
| 11 | Clip (2) |
| 11 | Cooktop (Golden Harvest) |
| 11 | Cooktop (White) |
| 11 | Cooktop (Almond) |
| 12 | trim, cooktop front |
| 13 | Screw, 8A x 3/8 (2) |
| 13 | end cap trim l.h. |
| 13 | Clip (4) |
| 13 | end cap trim r.h. |
| 14 | W11693756 Whirlpool Screw Assembly |
| 14 | trim, cooktop side & rear |
| 15 | trim, rear |
| 16 | bracket, cooktop (6) |
| 17 | Hinge, Leaf Cooktop L.H. |
| 17 | Hinge, Leaf Cooktop R.H. |
| 17 | Screw, 10A x 1/2 (2) (Black) |
| 18 | WP313808 Whirlpool Screw |
| 18 | BURNER RECEPTACLE KIT |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | WP488366 Whirlpool Refrigerator Clamp |
| 19 | WP308685 Whirlpool Microwave Screw |
| 19 | WP308605 Whirlpool Refrigerator Clamp |
| 20 | WP308544 Whirlpool Screw |
| 20 | hinge (2) |
| 23 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 23 | DRIP BOWL 8" W/HOLE CHROME |
| 24 | WPY04100165 Whirlpool Surface Element |
| 24 | WP660533 Whirlpool Oven 8" Surface Element |
| 25 | medallion |
