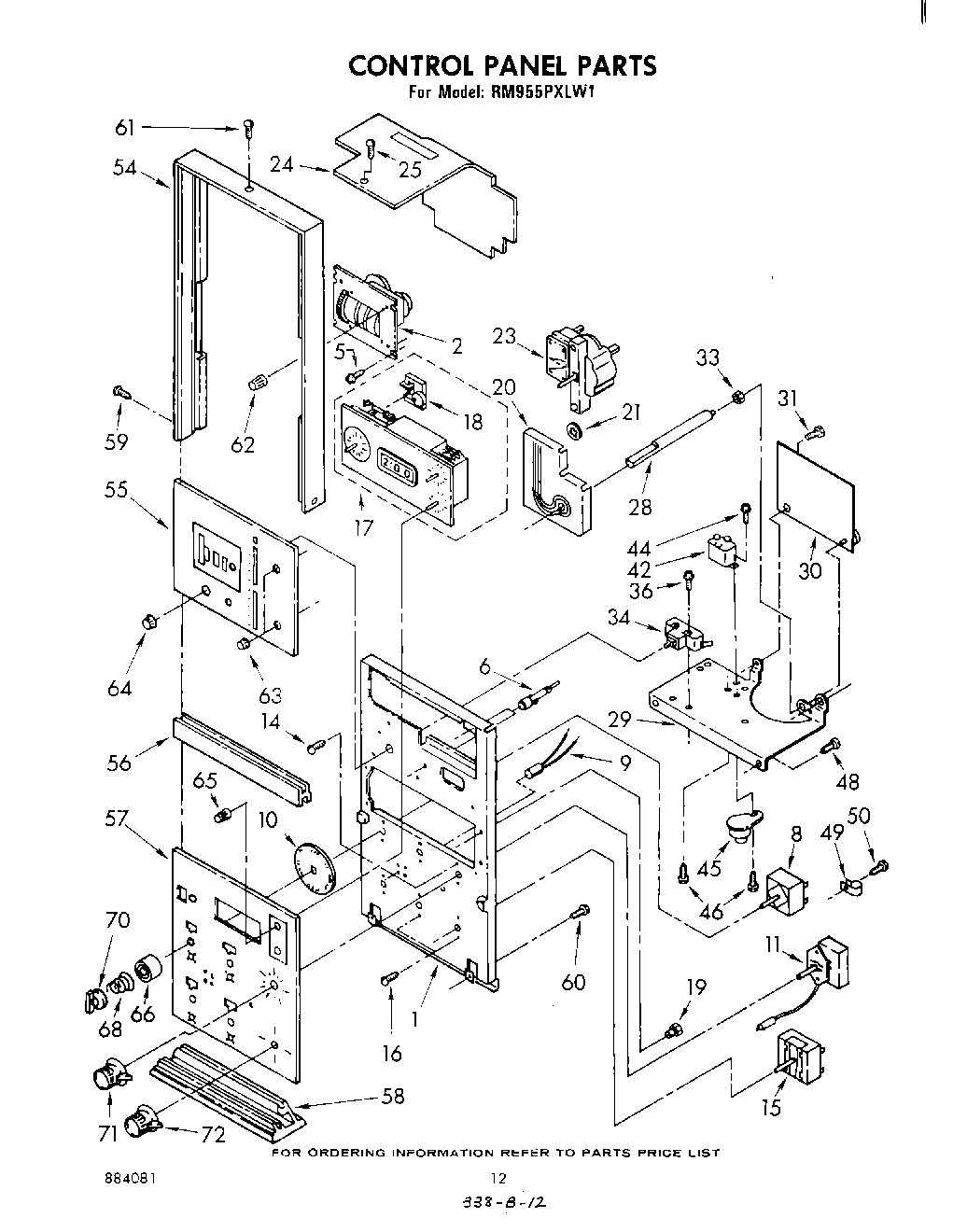

RM955PXLW1 07 – CONTROL PANEL

Products

Position	Product
1	Bracket, Control Mounting
2	Timer, Digital (Microwave)
6	Indicator Light
8	switch, infinite (4)
9	Light, Indicator (250V) (7)
10	Dial, Surface Units (4)
11	Thermostat (Lower Oven)
14	screw, 6-32 x 1/4 (2)
15	Switch, Selector
16	Screw, 8-32 x 3/16 (2)
17	Timer, Digital (Includes Illus. 29)
18	Motor, Timer
19	Nut, Aluminum (4)
20	Indicator, Information Control
21	Clip, Push-On (3)
23	Indicator, Temperature
24	Shield Assembly
28	Shaft, Potentiometer
29	Bracket, P.C. Board
30	Oven Thermostat
31	WPL 309080
33	Palnut
34	Switch, Push-Start (Includes Illus. 11)
36	Screw
42	Relay, Latching (Alternate)
44	WP90767 Whirlpool Screw
45	WPL 310351
46	Screw
48	Screw,
49	WP308605 Whirlpool Refrigerator Clamp
50	WP965173 Whirlpool Dishwasher Screw
54	Frame, Control Panel
55	Panel, Control (Upper)
56	Splice Panel
57	Support-Top Burner
57	Control Panel, Glass
58	Bottom Cap, Control Panel
59	NAMEPLATE
60	WP486754 Whirlpool Compactor Screw
61	Screw
62	Knob, Digital
63	Knob, Assembly (2)
64	Button, Push-to-Start
65	WPL 312808
66	Bezel, Knob (4)
68	spring, bezel (4)
70	knob, control
71	Knob, Thermostat
72	Knob, Selector
72	WP688805 Whirlpool Spring Clip
