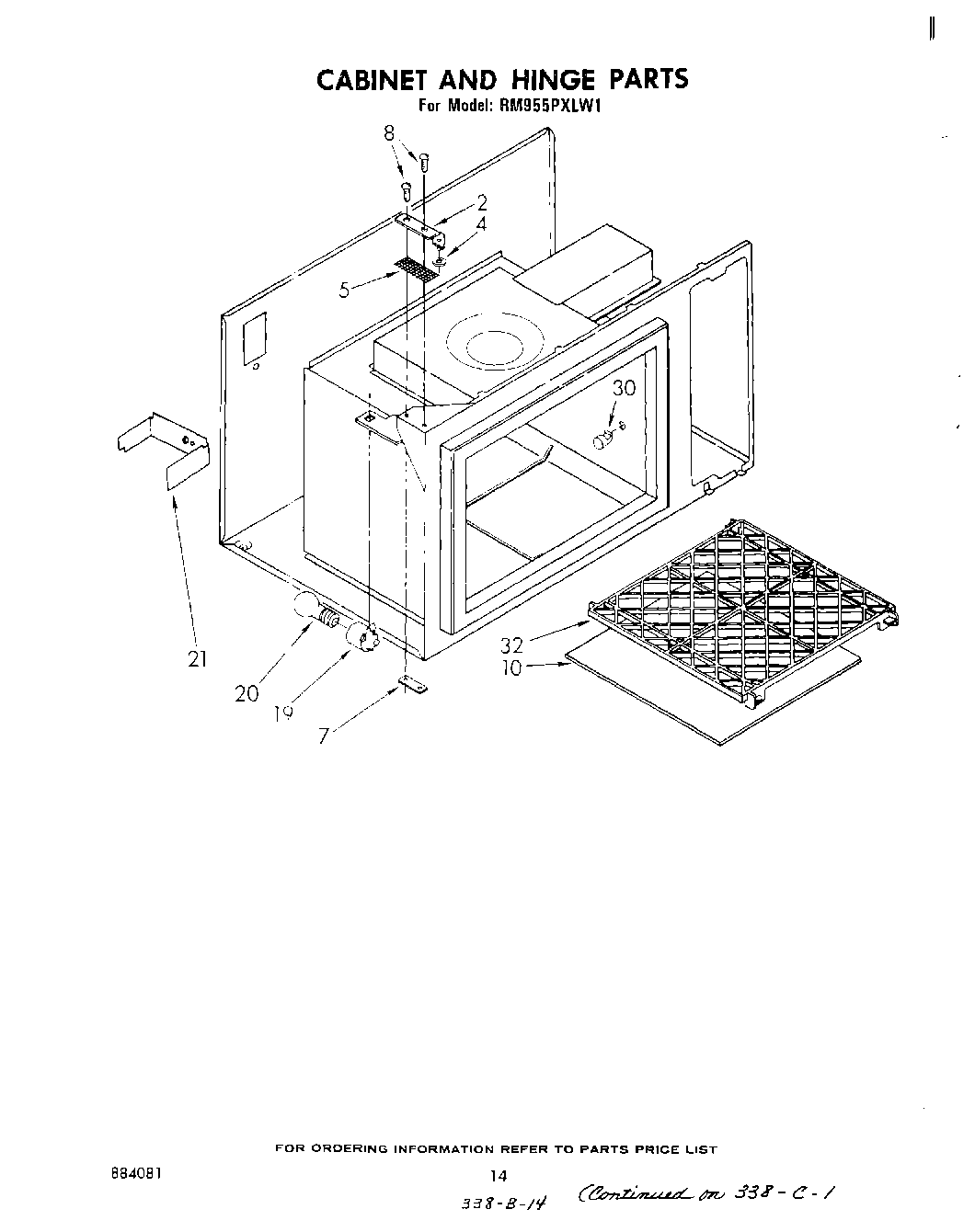

RM955PXLW1 08 – CABINET AND HINGEadmin2025-04-26T12:07:19+00:00RM955PXLW1 08 – CABINET AND HINGE
Products
| Position | Product |
|---|
| 2 | Hinge Assembly (Bottom) |
| 2 | Hinge Assembly (Top) |
| 4 | WPL 312147 |
| 5 | Hinge, Shim Locking (2) |
| 7 | Plate, Nut (2) |
| 8 | Screw, 12-24 x 3/4 (4) |
| 10 | Base, Ceramic (Install W/Silastic No. 482338) |
| 10 | Shelf, Microwave (Alt.) |
| 10 | Shelf, Microwave (Alt.) (Install W/Silastic No. 482338) |
| 19 | Socket, Snap-In |
| 20 | RANGE ONLY 40W 120V APPL BULB |
| 21 | Shield, Lamp |
| 21 | screw |
| 30 | Support, Shelf (4) |
| 32 | rack, oven |
