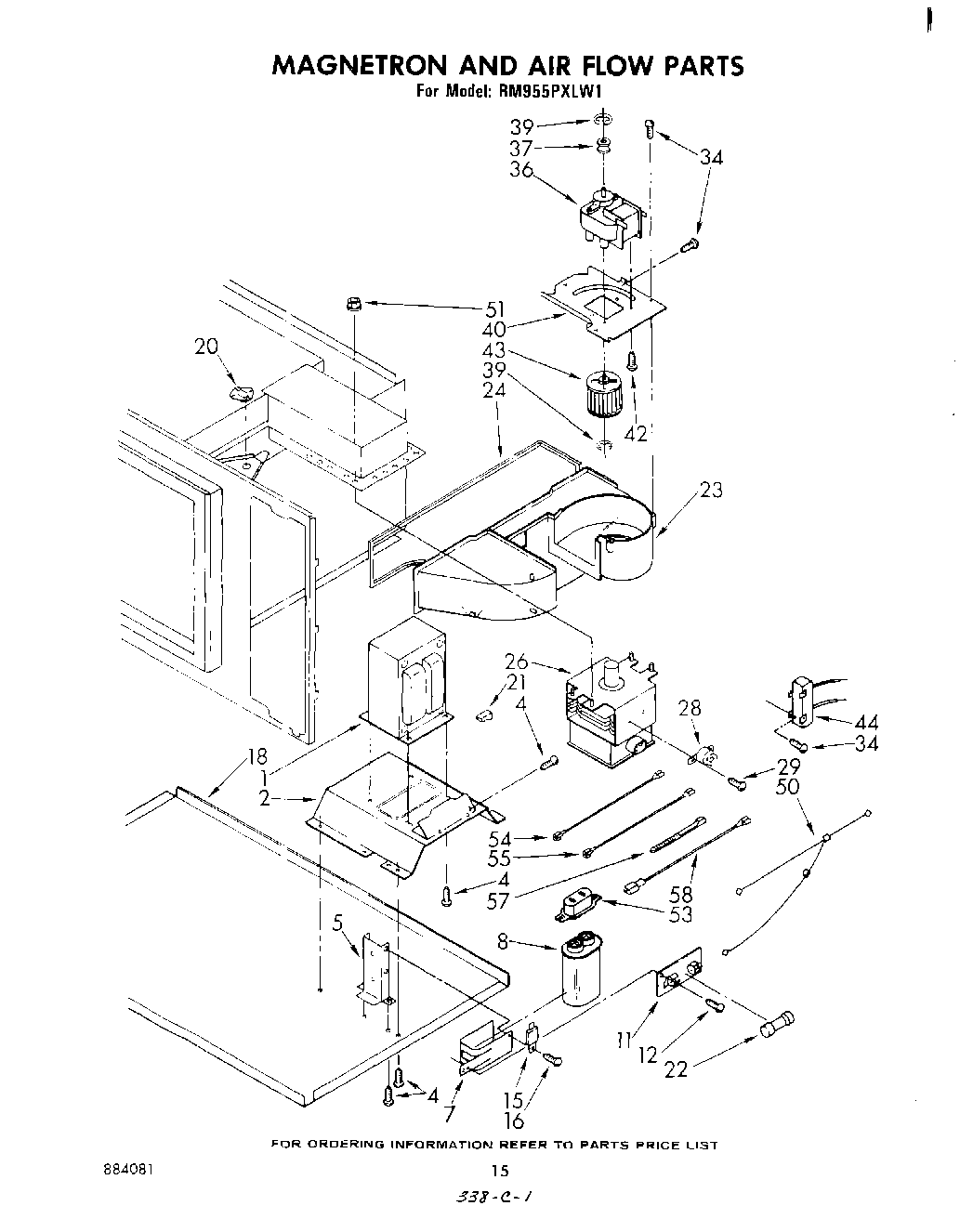

RM955PXLW1 09 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer (Alt.)
1	Transformer (Alt.)
2	Bracket, Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
7	Strap, Capacitor
8	Capacitor (Alt.)
8	capacitor (alt.)
11	Screw (2)
12	WP489069 Whirlpool Compactor Screw
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
20	Thermostat
20	screw
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermostat
29	Screw
36	Transformer (Alternate)
36	Transformer (Alternate)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay (Alt.)
44	Reed Relay (Alt.)
50	Clip, Harness
50	Screw, 11-16 x 1/2 Double Load Space Thread (5)
50	Cable, Support
51	Flange Nut (4)
53	Cover, Capacitor
54	Jumper, High Voltage (Black 5-1/2“)
55	Jumper, High Voltage, Red (7-7/8“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
