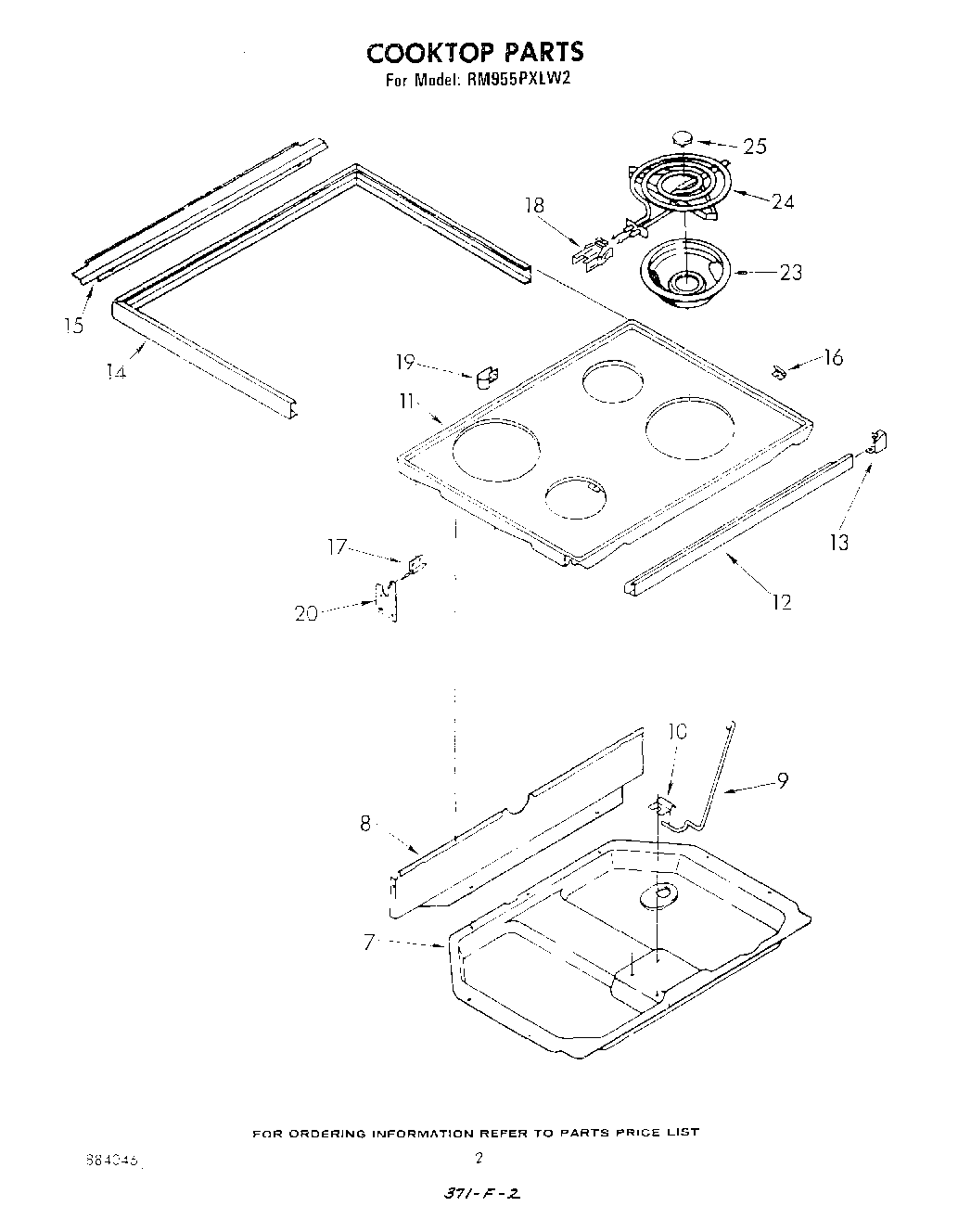

RM955PXLW2 02 – COOK TOP

Products

Position	Product
7	burner box
8	Shield, Wiring
9	Rod, Cooktop
9	SCREW
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Cooktop (Golden Harvest)
11	Clip (2)
11	Cooktop (White)
11	Cooktop (Almond)
11	Cooktop (Toast)
11	Cooktop (Platinum)
12	trim, cooktop front
13	Clip (4)
13	Screw, 8A x 3/8 (2)
13	end cap trim r.h.
13	end cap trim l.h.
14	W11693756 Whirlpool Screw Assembly
14	trim, cooktop side & rear
15	trim, rear
16	Screw, 10A x 1/2 (2) (Black)
16	bracket, cooktop (6)
17	WP308685 Whirlpool Microwave Screw
17	Hinge, Leaf Cooktop L.H.
17	Hinge, Leaf Cooktop R.H.
18	BURNER RECEPTACLE KIT
18	WP313808 Whirlpool Screw
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
20	WP308544 Whirlpool Screw
20	hinge (2)
23	WPW10196406 Whirlpool 6" Chrome Drip Bowl
23	DRIP BOWL 8" W/HOLE CHROME
24	WP660533 Whirlpool Oven 8" Surface Element
24	WPY04100165 Whirlpool Surface Element
25	medallion
