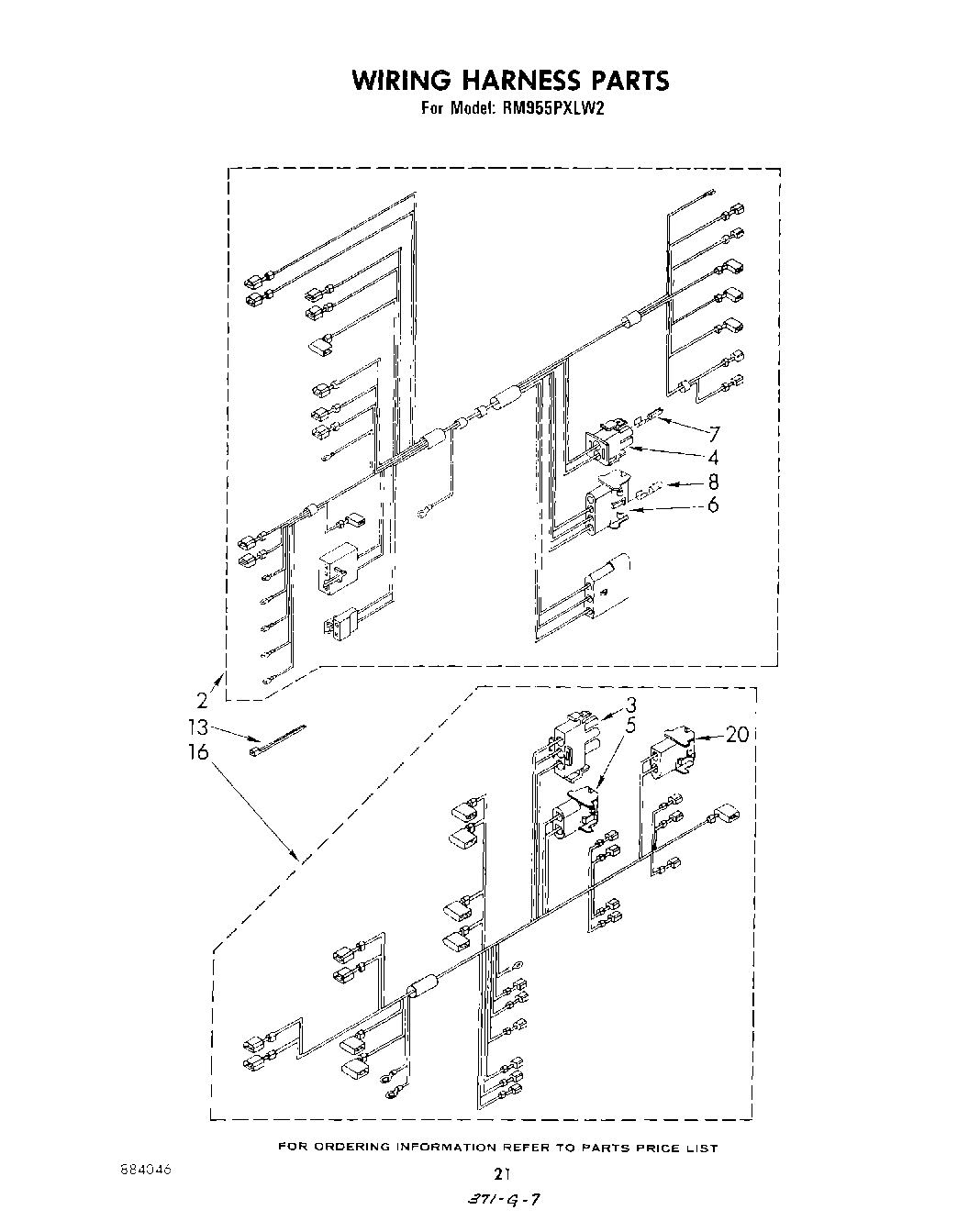

RM955PXLW2 12 – WIRING HARNESS , LITERATURE AND OPTIONAL

RM955PXLW2 12 – WIRING HARNESS , LITERATURE AND OPTIONAL

Written by

in

RM955PXLW2 12 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Enamal, Toast (1 Qt. Uncut)
Golden Harvest (Uncut)
Platinum (Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, Black (1 Qt. Uncut)
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
13WPW10339879 Whirlpool Wire Tie
16Harness, Interlock
20WP75614 Whirlpool Connector
20Wire (14 Ga. 200 c Brown)
20WPL 308500
20WPL 799351
201
20261900 Whirlpool Microwave Spray
20WPL 591014
20Grease
20Leveler (Thinner) (2oz.)
20Rotisserie Kit (RCK 81)
20Tech Sheet
20Installation Instructions
20Use & Care Guide
20WPL 309600
20Browning Tray (Micro)
20WPL 884046
20Rack, Meat (Micro)
20Touch-Up, Oven
20Spacer-Oven Door Glass (Lt. or Rt.)
2018 Ga. 80~c Rating (Red)
20Wire (12 Ga. 150 c Black)
20Wire (14 Ga. 150 c Yellow)
20511873 Whirlpool Refrigerator Paint
20350942 Whirlpool Spray Paint
20Receptacle, Latching (2-Way) (Uses Terminal 94614)
20WPL 72112
20Paint, Spray (13 Oz.) (Platinum)
20Toast
20Golden Harvest
2072113 Whirlpool Touch-Up Paint
2072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20WP72107 Whirlpool Touchup
2072017 Whirlpool Appliance Touch-Up Paint White
20350956 Whirlpool Spray Assembly
20WPL 799832
20WPW10208653 Whirlpool Insulation
20Wire (14 Ga. 150 c Orange)
20Wire (14 Ga. 150 c Green)
20Wire (14 Ga. 150 c Brown)
20Wire (14 Ga. 150 c Blue)
20WP261869 Whirlpool Microwave Paint
20242831 Whirlpool Oven Wire
20WP482338 Whirlpool Refrigerator Adhesive
2072032 Whirlpool Touch Up Paint Black
20285006 Whirlpool Spray
20Wire, 25“ Roll (White 14 GA.)
20Wire, 25` Roll (Red 14 Ga.)
20Wire, 25` Roll (Black 14 Ga.)
20350930 Whirlpool White Spray Paint
