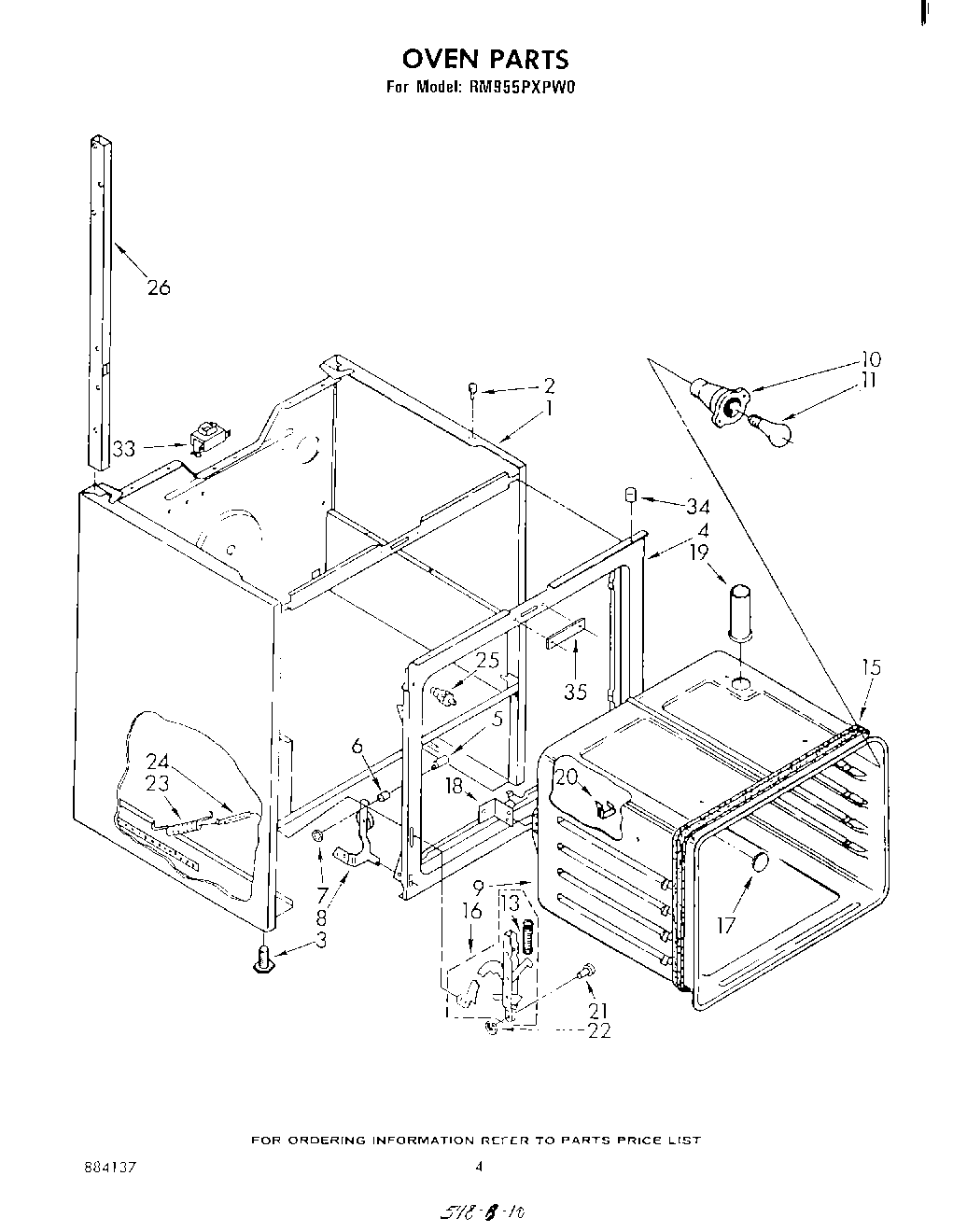

RM955PXPW0 04 – OVEN

Written by

Products

Position	Product
	SCREW
	Screw (10-12 x .875)
1	Main Chassis (Platinum)
1	Main Chassis (Toast)
1	Main Chassis (White)
1	Main Chassis (Harvest Gold)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
13	Spring, Door Stop
15	Heat Seal
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing R.H.
26	Support, Tubing L.H.
33	Ballast (Alt.)
33	Ballast
33	Ballast (Alt.)
34	Screw, 8-32 x 5/16 (2)
34	locator, cooktop
35	WP313808 Whirlpool Screw
35	Plate Cover
