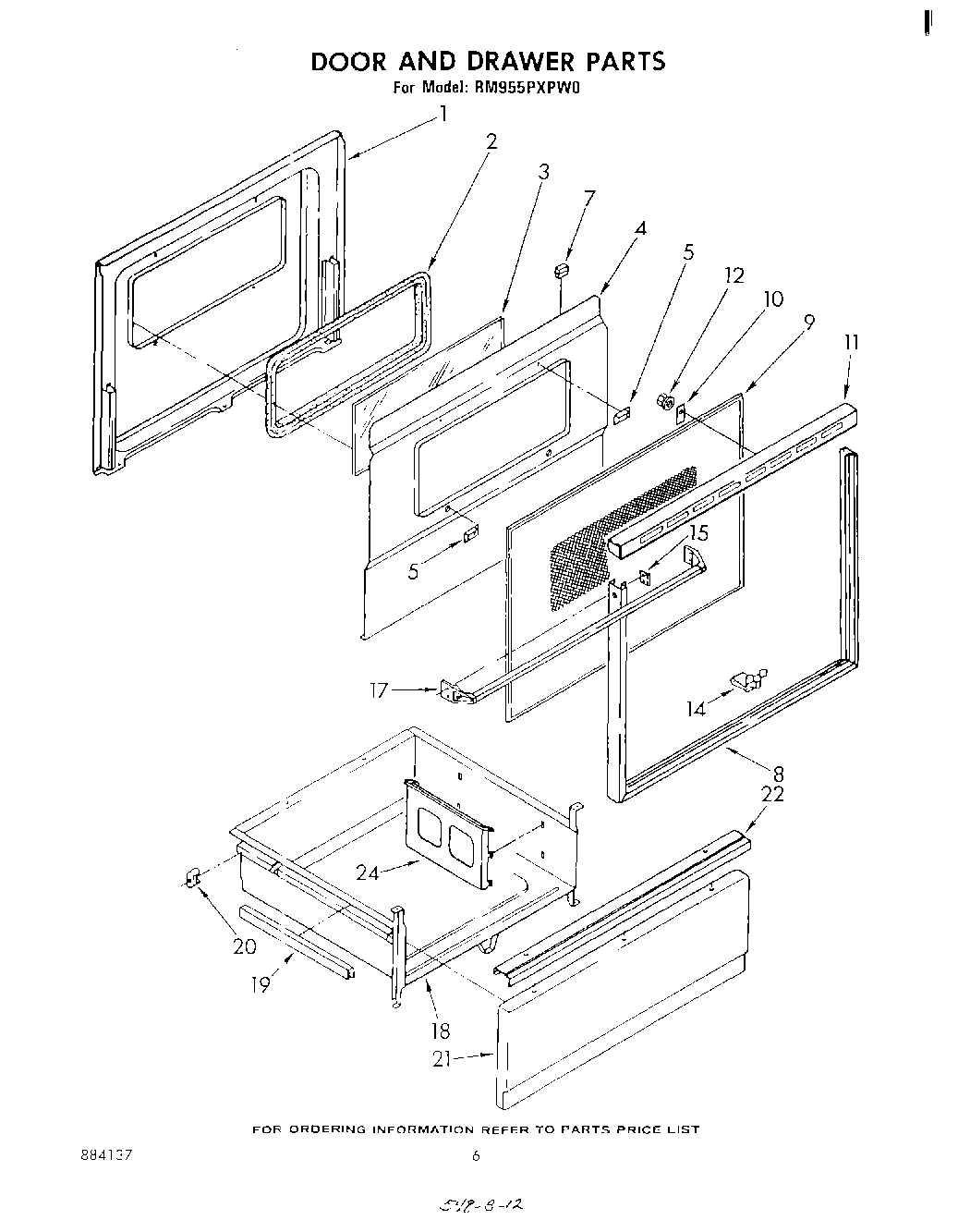

RM955PXPW0 05 – DOOR AND DRAWERadmin2025-04-26T12:08:07+00:00RM955PXPW0 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | liner, door |
| 1 | Screw (3) |
| 2 | seal, pano glass |
| 3 | glass, inner 30`` |
| 4 | baffle, insulation |
| 5 | spacer, insulation baffle (4) |
| 7 | Channel, Rubber (4) |
| 8 | frame, door 30`` |
| 9 | Glass, Outer |
| 10 | hold down, glass (2) |
| 11 | Top, Door Frame |
| 12 | WP90296 Whirlpool Clip |
| 14 | clip, glass (10) |
| 15 | screw (3) |
| 17 | WP355515 Whirlpool Screw |
| 17 | Handle, Oven Door |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | Panel Drawer (Harvest Gold) |
| 21 | Panel, Drawer (Toast) |
| 21 | Panel, Drawer (Almond) |
| 21 | Panel Drawer (White) |
| 21 | Panel, Drawer (Platinum) |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 24 | Rack, Literature |
