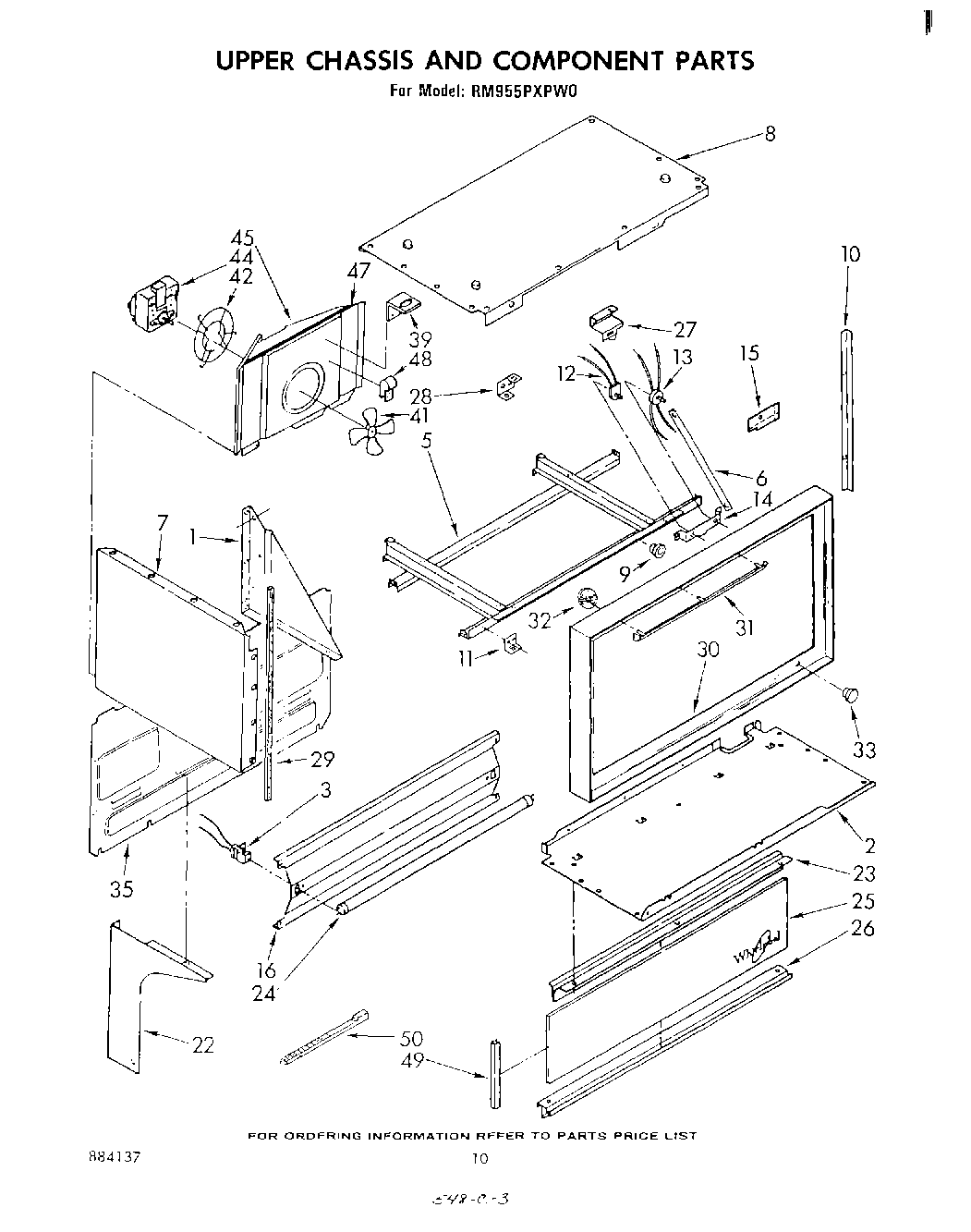

RM955PXPW0 07 – UPPER CHASSIS AND COMPONENT

Written by

Products

Position	Product
1	Gusset, R.H.
1	Gusset, L.H.
2	Channel, Rubber (4)
2	Panel, Bottom
3	Socket Assembly R.H.
3	Socket Assembly L.H.
5	Main Chassis (Screw, 10-32 x 1/2)
5	Frame, Oven Support
6	Strap, Support (2)
7	Side Panel L.H. (White)
7	Side Panel L.H. (Harvest Gold)
7	Side Panel L.H. (White)
7	Side Panel L.H. (Harvest Gold)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Platinum)
7	Side Panel L.H. (Toast)
7	Side Panel L.H. (Platinum)
7	Side Panel L.H. (Toast)
8	Support-Top Burner
8	Top Panel (Platinum)
8	Top Panel (Toast)
8	Top Panel (White)
8	Top Panel (Almond)
8	Top Panel (Harvest Gold)
9	Snap Bushing
10	WPL 309629
11	WPL 309454
12	Push, Switch
13	Switch, Fluorescent Light
14	WPL 309455
15	Barrier
16	Panel, Backguard
16	WPL 246134
22	WPL 330203
22	WPL 330200
22	WPL 330197
22	WPL 330194
22	Screw (10-12 x .875)
22	WPL 330204
22	WPL 330201
22	WPL 330198
22	WPL 330196
22	WPL 330195
22	WPL 330202
23	WPL 313320
24	WP95292 Whirlpool Fluorescent Light Bulb
25	WPL 313322
26	WPL 313321
26	WP965173 Whirlpool Dishwasher Screw
27	WPL 311953
28	WPL 312237
30	WPL 312599
30	WP488627 Whirlpool Refrigerator Screw
30	Screw, 80 x 5/16
31	WPL 309499
32	WP90296 Whirlpool Clip
33	Bezel Switch (1)
35	WPL 308112
39	Bracket, Receptacle
41	Blade, Fan
41	Nut, Hex 6-32 (2)
42	Screw
42	Mount, Fan Motor
44	Motor, Fan
44	W11693756 Whirlpool Screw Assembly
44	SCREW
45	WPL 312340
47	SEAL
48	WP488366 Whirlpool Refrigerator Clamp
48	panel, top (screw, 10a x 3/8 (3))
49	WPL 313319
50	WPW10339879 Whirlpool Wire Tie
