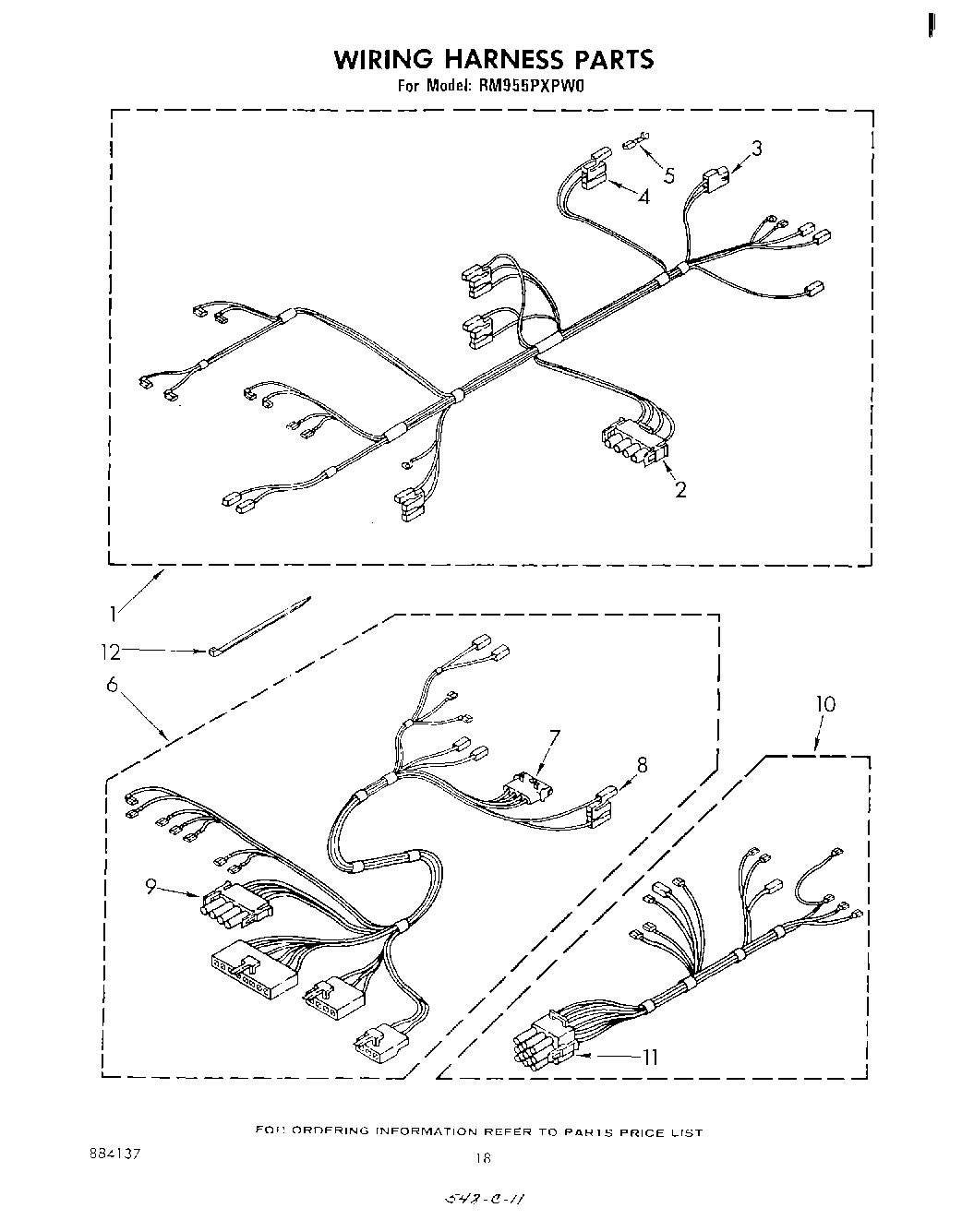

RM955PXPW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

RM955PXPW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

Written by

in

RM955PXPW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT313358
WPL LIT313480
Cookbook
Use & Care Guide (Microwave)
WPL LIT313353
WPL LIT312876
WPL LIT884137
1Harness, Wiring (Main)
1Screw, 80 x 5/16
2Disconnect Block (4 Terminal)
3Receptacle, Latching (2-Way) (Uses Terminal 94614)
4Housing, Plug
5WP248562 Whirlpool Terminal
6Harness, Wiring (Control)
7Disconnect Block, Female
8Connector (Door Switch)
9plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
10Harness, Selector Thermostat
11Plug, Male
12WPL 591014
121
12Wire (14 Ga. 200 c Brown)
1218 Ga. 80~c Rating (Red)
12Wire (12 Ga. 150 c Black)
12Leveler (Thinner) (2oz.)
12Grease
12261900 Whirlpool Microwave Spray
12WP75614 Whirlpool Connector
12Rotisserie Kit (RCK 81)
12Touch-Up, Oven
12Rack, Meat (Micro)
12Browning Tray (Micro)
12Golden Harvest
12Wire (14 Ga. 150 c Yellow)
12Wire (14 Ga. 150 c Orange)
12Wire (14 Ga. 150 c Green)
12WPL 72112
12Platinum (Uncut)
12Enamal, Toast (1 Qt. Uncut)
12Paint, Spray (13 Oz.) (Platinum)
12Toast
12Golden Harvest (Uncut)
1272113 Whirlpool Touch-Up Paint
1272110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12Almond (Uncut)
12WP72107 Whirlpool Touchup
12799344 Whirlpool Refrigerator Paint
1272017 Whirlpool Appliance Touch-Up Paint White
12350956 Whirlpool Spray Assembly
12350942 Whirlpool Spray Paint
12511873 Whirlpool Refrigerator Paint
12Enamel, Black (1 Qt. Uncut)
12Wire (14 Ga. 150 c Brown)
12Wire (14 Ga. 150 c Blue)
12WP261869 Whirlpool Microwave Paint
12242831 Whirlpool Oven Wire
12WP482338 Whirlpool Refrigerator Adhesive
1272032 Whirlpool Touch Up Paint Black
12285006 Whirlpool Spray
12WPW10339879 Whirlpool Wire Tie
12Wire, 25“ Roll (White 14 GA.)
12Wire, 25` Roll (Red 14 Ga.)
12Wire, 25` Roll (Black 14 Ga.)
12WPW10208653 Whirlpool Insulation
12WPL 799832
12350930 Whirlpool White Spray Paint
