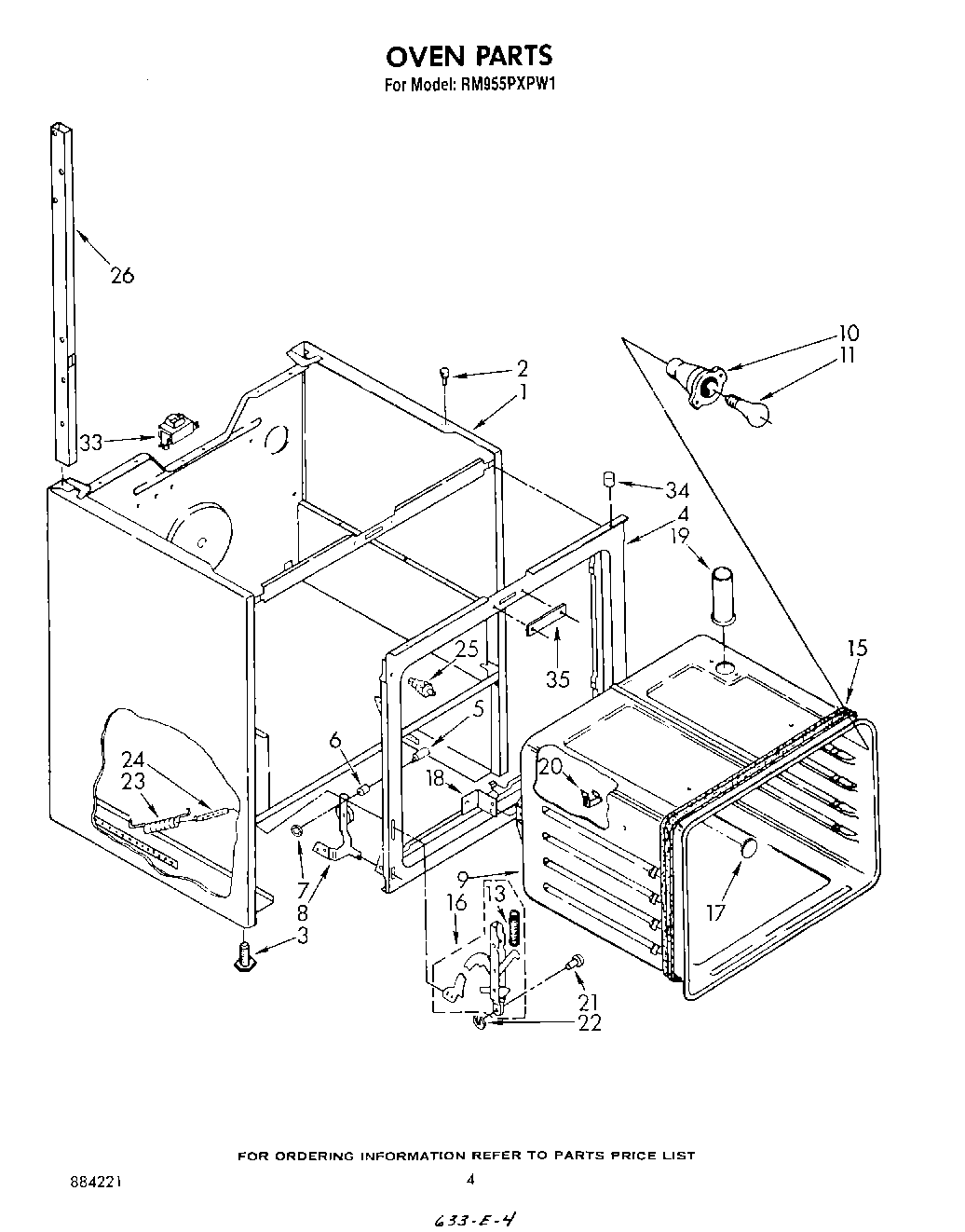

RM955PXPW1 04 – OVEN

Products

Position	Product
1	Main Chassis (Toast)
1	Main Chassis (Platinum)
1	Main Chassis (White)
1	Main Chassis (Almond)
1	Main Chassis (Harvest Gold)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
13	Spring, Door Stop
15	Heat Seal
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing R.H.
26	Support, Tubing L.H.
33	Ballast
33	SCREW
34	Screw, 8-32 x 5/16 (2)
34	locator, cooktop
35	WP313808 Whirlpool Screw
35	Plate Cover
