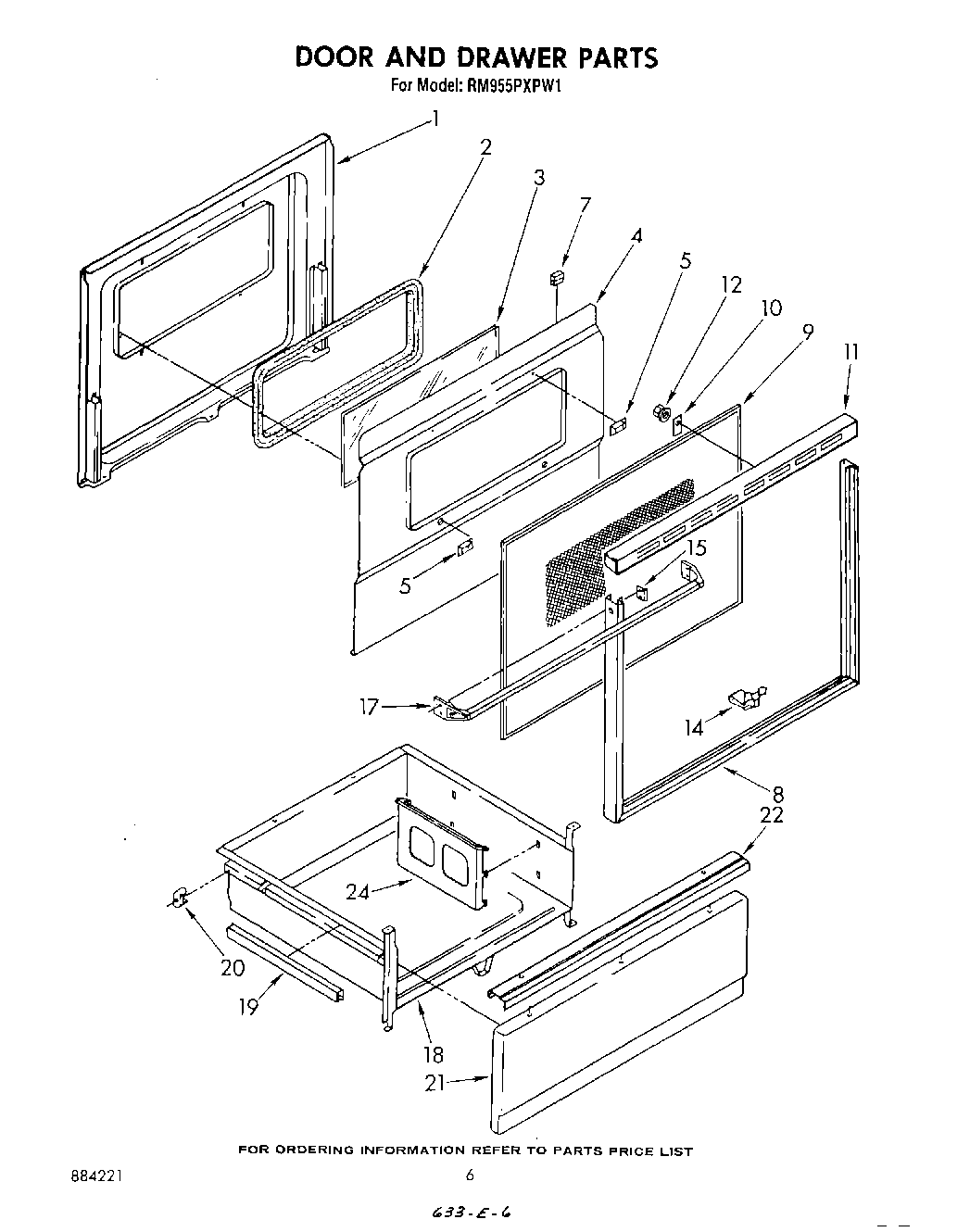

RM955PXPW1 05 – DOOR AND DRAWER

Written by

Products

Position	Product
1	liner, door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	Channel, Rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
14	clip, glass (10)
15	screw (3)
17	WP355515 Whirlpool Screw
17	Handle, Oven Door
18	Drawer, Utility
19	Protector, Drawer (2)
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel Drawer (Harvest Gold)
21	Panel, Drawer (Toast)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel, Drawer (Platinum)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Rack, Literature
