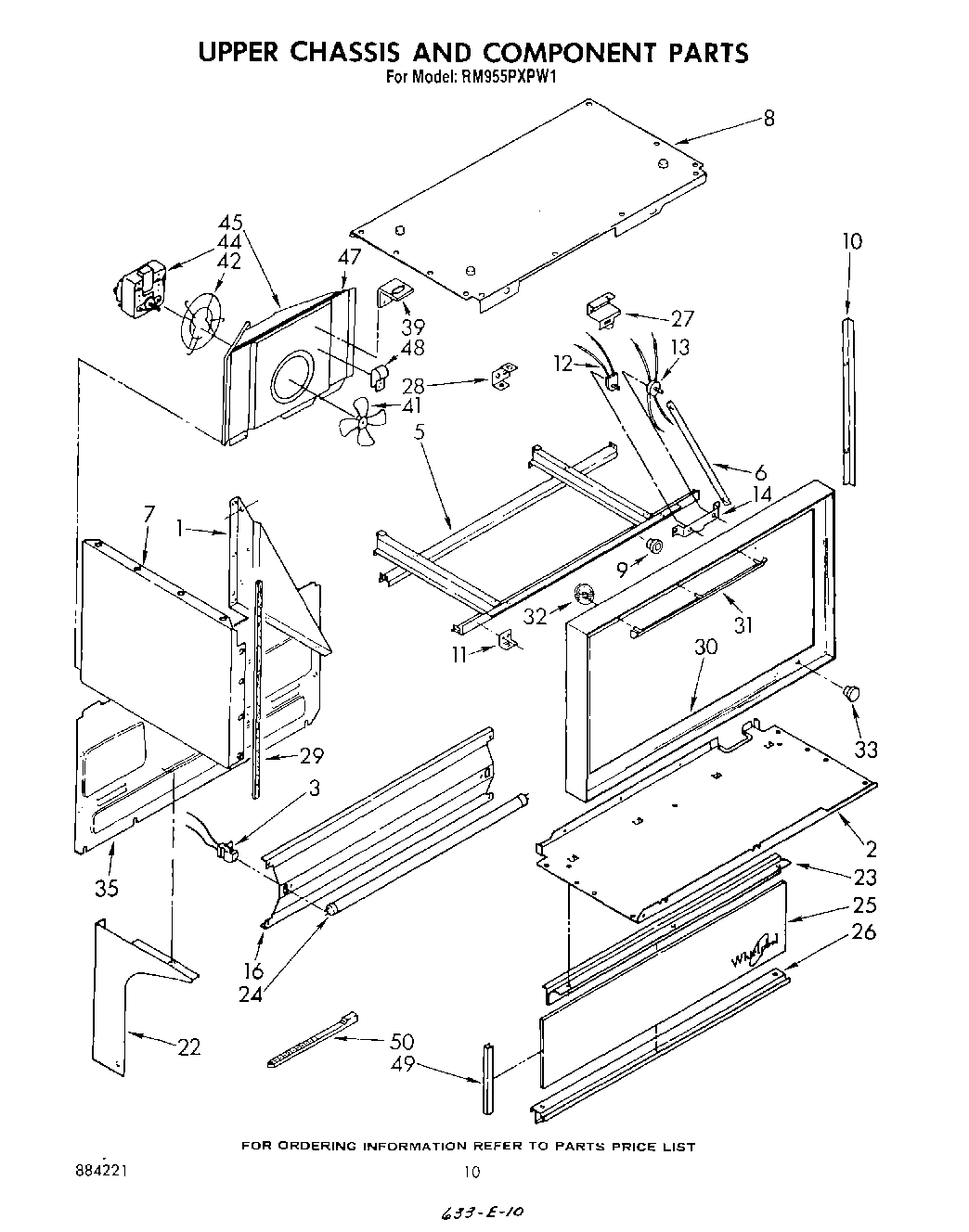

RM955PXPW1 07 – UPPER CHASSIS AND COMPONENT

Products

Position	Product
1	Gusset, R.H.
1	Gusset, L.H.
2	Channel, Rubber (4)
2	Panel, Bottom
3	Socket Assembly L.H.
3	Socket Assembly R.H.
5	Frame, Oven Support
6	Strap, Support (2)
7	Side Panel L.H. (Harvest Gold)
7	Side Panel L.H. (White)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Harvest Gold)
7	Side Panel L.H. (White)
7	Side Panel L.H. (Platinum)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Toast)
7	Side Panel L.H. (Platinum)
7	Side Panel L.H. (Toast)
8	Top Panel (Platinum)
8	Top Panel (Almond)
8	Top Panel (Toast)
8	Top Panel (Harvest Gold)
8	Top Panel (White)
9	Snap Bushing
10	WPL 309629
11	WPL 309454
12	Push, Switch
13	Switch, Fluorescent Light
14	WPL 309455
16	Panel, Backguard
22	Screw (10-12 x .875)
22	WPL 330204
22	WPL 330202
22	WPL 330200
22	WPL 330197
22	WPL 330195
22	WPL 330196
22	WPL 330194
22	WPL 330198
22	WPL 330201
22	WPL 330203
23	WPL 313320
24	WP95292 Whirlpool Fluorescent Light Bulb
25	WPL 313322
26	WPL 313321
26	WP965173 Whirlpool Dishwasher Screw
27	WPL 311953
28	WPL 312237
30	WPL 312599
30	WP488627 Whirlpool Refrigerator Screw
31	WPL 309499
32	WP90296 Whirlpool Clip
33	Bezel Switch (1)
35	WPL 308112
39	Bracket, Receptacle
41	Nut, Hex 6-32 (2)
41	Blade, Fan
42	Mount, Fan Motor
42	Screw
44	Motor, Fan
44	SCREW
45	WPL 312340
47	SEAL
48	panel, top (screw, 10a x 3/8 (3))
48	WP488366 Whirlpool Refrigerator Clamp
49	WPL 313319
50	WPW10339879 Whirlpool Wire Tie
