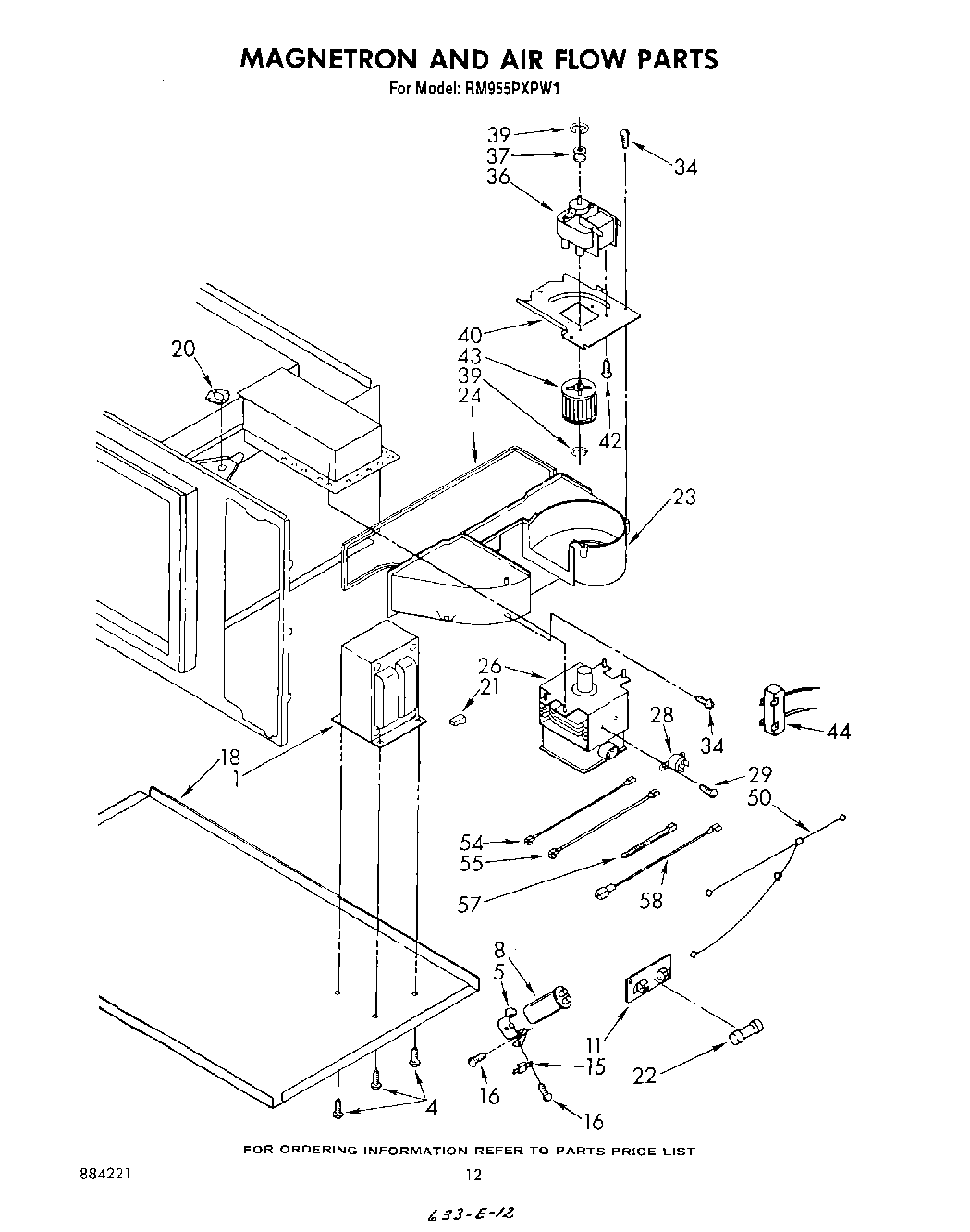

RM955PXPW1 08 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
11	Block, Fuse
15	rectifier, high voltage
18	Base, Chassis (Not Serviceable)
20	screw
20	Thermostat
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
36	Transmotor
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay
50	Screw, 11-16 x 1/2 Double Load Space Thread (5)
50	Screw
50	Cable, Support
50	Clip, Harness
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
