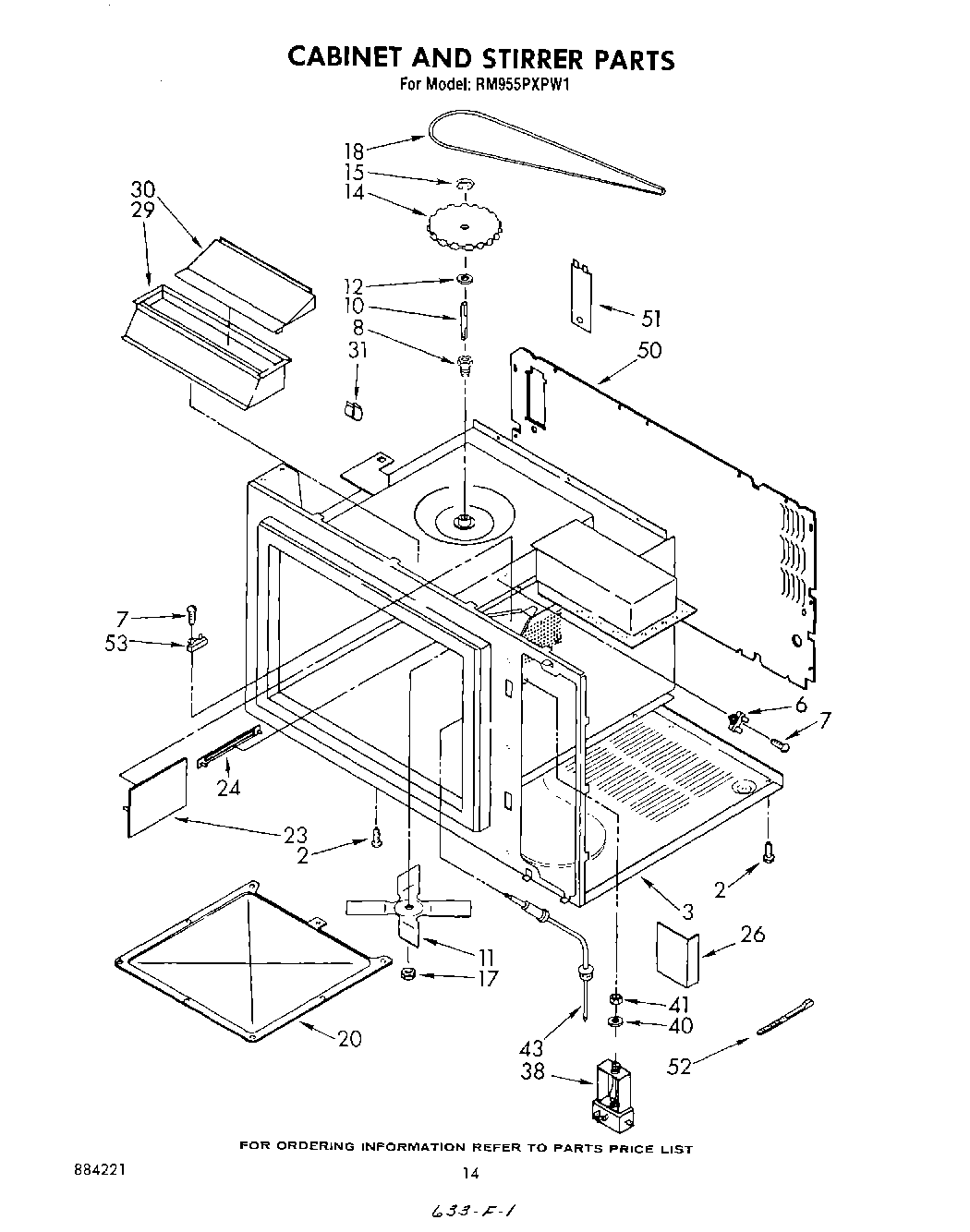

RM955PXPW1 09 – CABINET AND STIRRER

Products

Position	Product
3	Base, Cabinet (Not Serviceable)
6	Thermal Fuse (Includes Illus.7)
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Fastener (4)
20	Stirrer Cover
23	Shield, Exhaust Probe
24	Cover, Rivet
26	Shield, Exhaust
29	Baffle, Air Exhaust
30	Air Deflector
31	Clip, Air Cover (3)
38	Jack, Probe
40	Washer, Internal Lock
41	Nut
43	Probe, Temperature
50	Cover, Rear
50	SCREW
51	WP308685 Whirlpool Microwave Screw
51	Cover, Light
52	WPW10339879 Whirlpool Wire Tie
53	WP3196548 Whirlpool Thermal Fuse
53	screw
