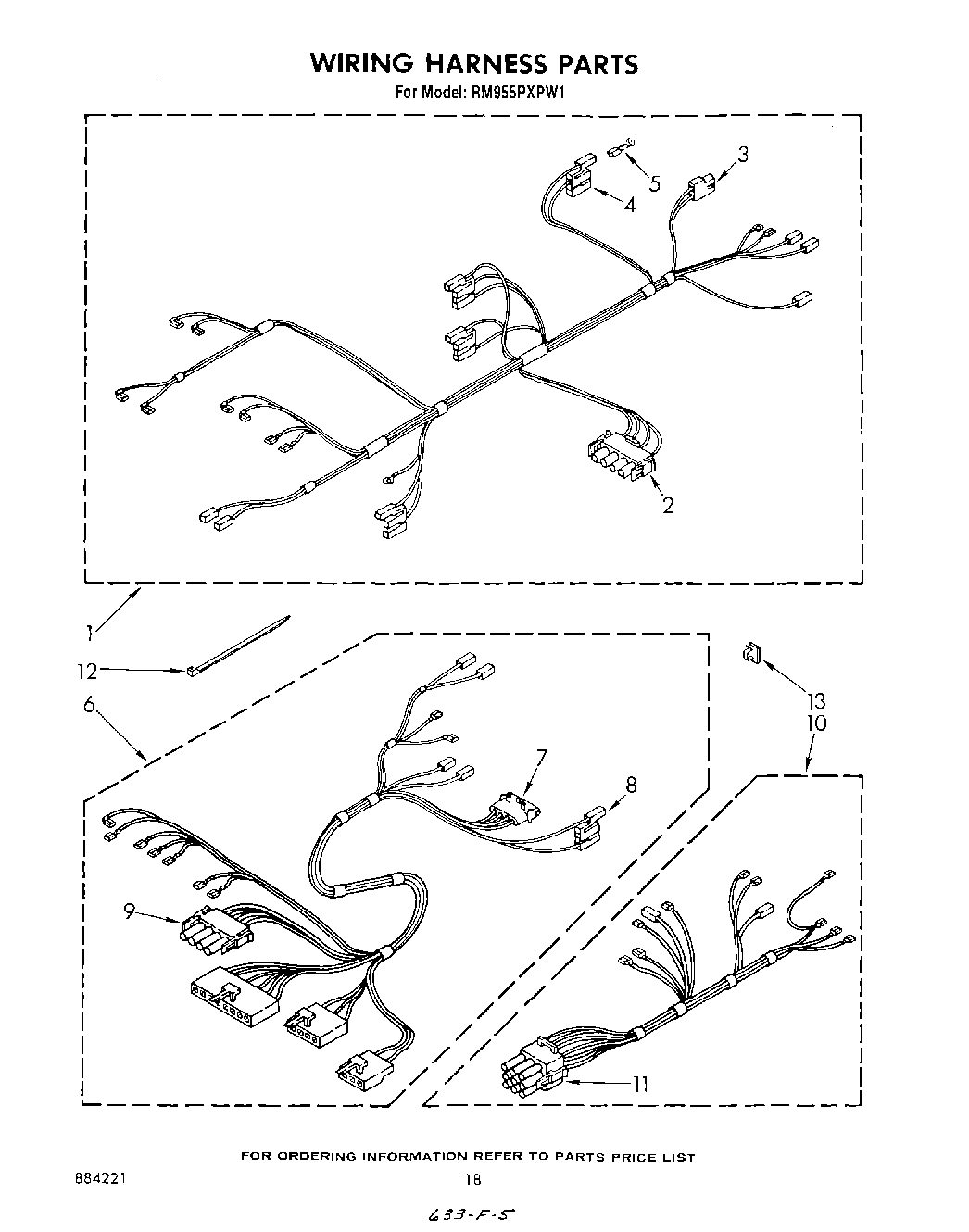

RM955PXPW1 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Use & Care Guide (Microwave)
WPL LIT313358
WPL LIT312876
WPL LIT3147632
WPL LIT884221
WPL LIT313480
Cookbook
1Harness, Wiring (Main)
2Disconnect Block (4 Terminal)
3Receptacle, Latching (2-Way) (Uses Terminal 94614)
4Housing, Plug
5WP248562 Whirlpool Terminal
6Harness, Wiring (Control)
7Disconnect Block, Female
8Connector (Door Switch)
9plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
10Harness, Selector Thermostat
11Plug, Male
12WPW10339879 Whirlpool Wire Tie
13Wire (14 Ga. 200 c Brown)
131
13WPL 591014
13Grease
1318 Ga. 80~c Rating (Red)
13261900 Whirlpool Microwave Spray
1372113 Whirlpool Touch-Up Paint
13Touch-Up, Oven
13WP75614 Whirlpool Connector
13Clip, Wire (2)
13Rotisserie Kit (RCK 81)
13Rack, Meat (Micro)
13Browning Tray (Micro)
13Wire (12 Ga. 150 c Black)
13Wire (14 Ga. 150 c Yellow)
13511873 Whirlpool Refrigerator Paint
13350930 Whirlpool White Spray Paint
13WPL 72112
13Platinum (Uncut)
13Enamal, Toast (1 Qt. Uncut)
13Paint, Spray (13 Oz.) (Platinum)
13Toast
13Golden Harvest (Uncut)
1372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
13Almond (Uncut)
13WP72107 Whirlpool Touchup
13799344 Whirlpool Refrigerator Paint
1372017 Whirlpool Appliance Touch-Up Paint White
13Enamel, Black (1 Qt. Uncut)
13WPL 799832
13Wire (14 Ga. 150 c Orange)
13Wire (14 Ga. 150 c Green)
13Wire (14 Ga. 150 c Brown)
13Wire (14 Ga. 150 c Blue)
13WP261869 Whirlpool Microwave Paint
13242831 Whirlpool Oven Wire
13WP482338 Whirlpool Refrigerator Adhesive
1372032 Whirlpool Touch Up Paint Black
13285006 Whirlpool Spray
13Wire, 25“ Roll (White 14 GA.)
13Wire, 25` Roll (Red 14 Ga.)
13Wire, 25` Roll (Black 14 Ga.)
13WPW10208653 Whirlpool Insulation
13350956 Whirlpool Spray Assembly
