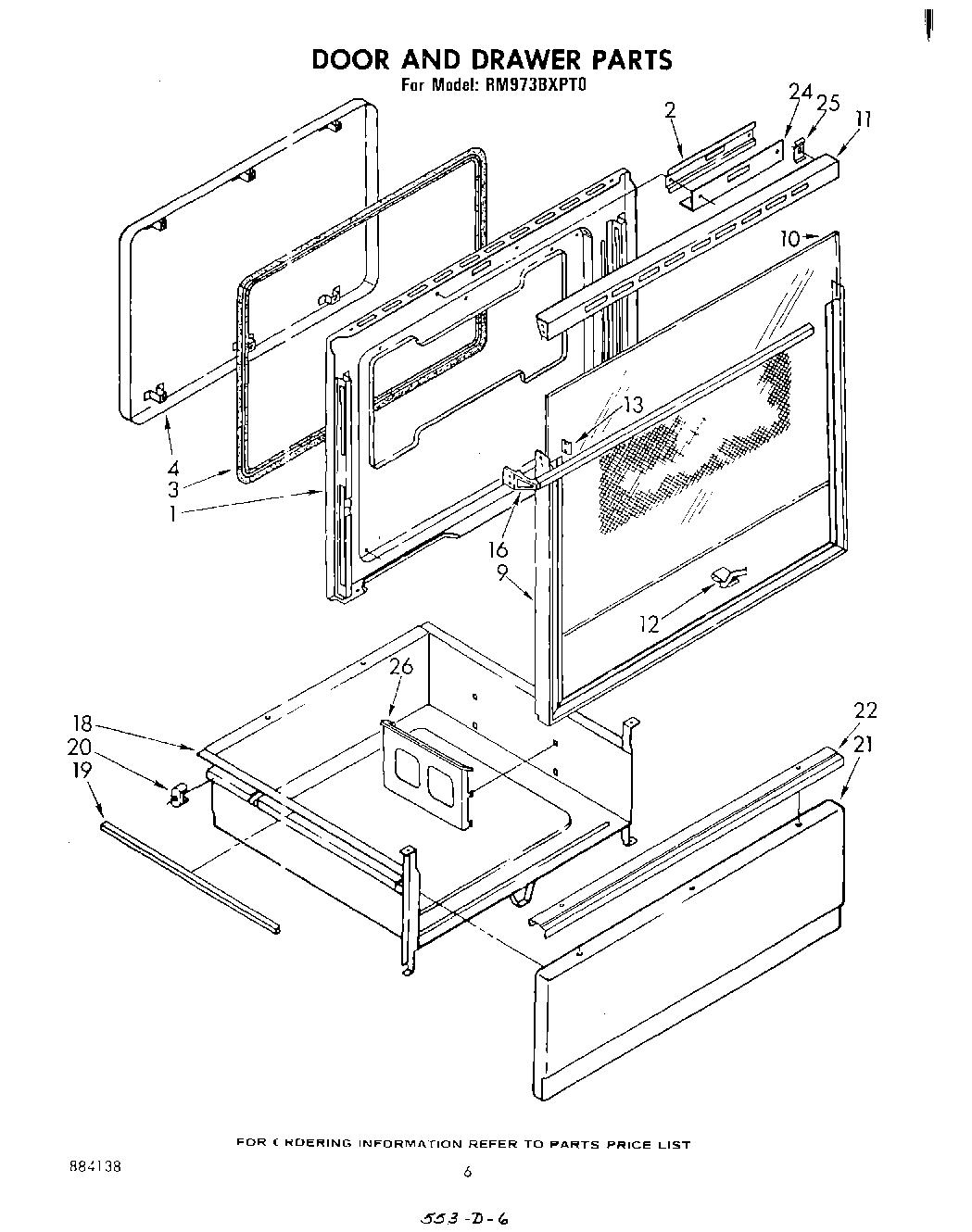

RM973BXPT0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
11	WP90296 Whirlpool Clip
12	clip, glass (10)
13	screw (3)
16	Handle, Oven Door
16	WP355515 Whirlpool Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (Black)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Shield, Insulation
25	hold down, glass (2)
26	Rack, Literature
