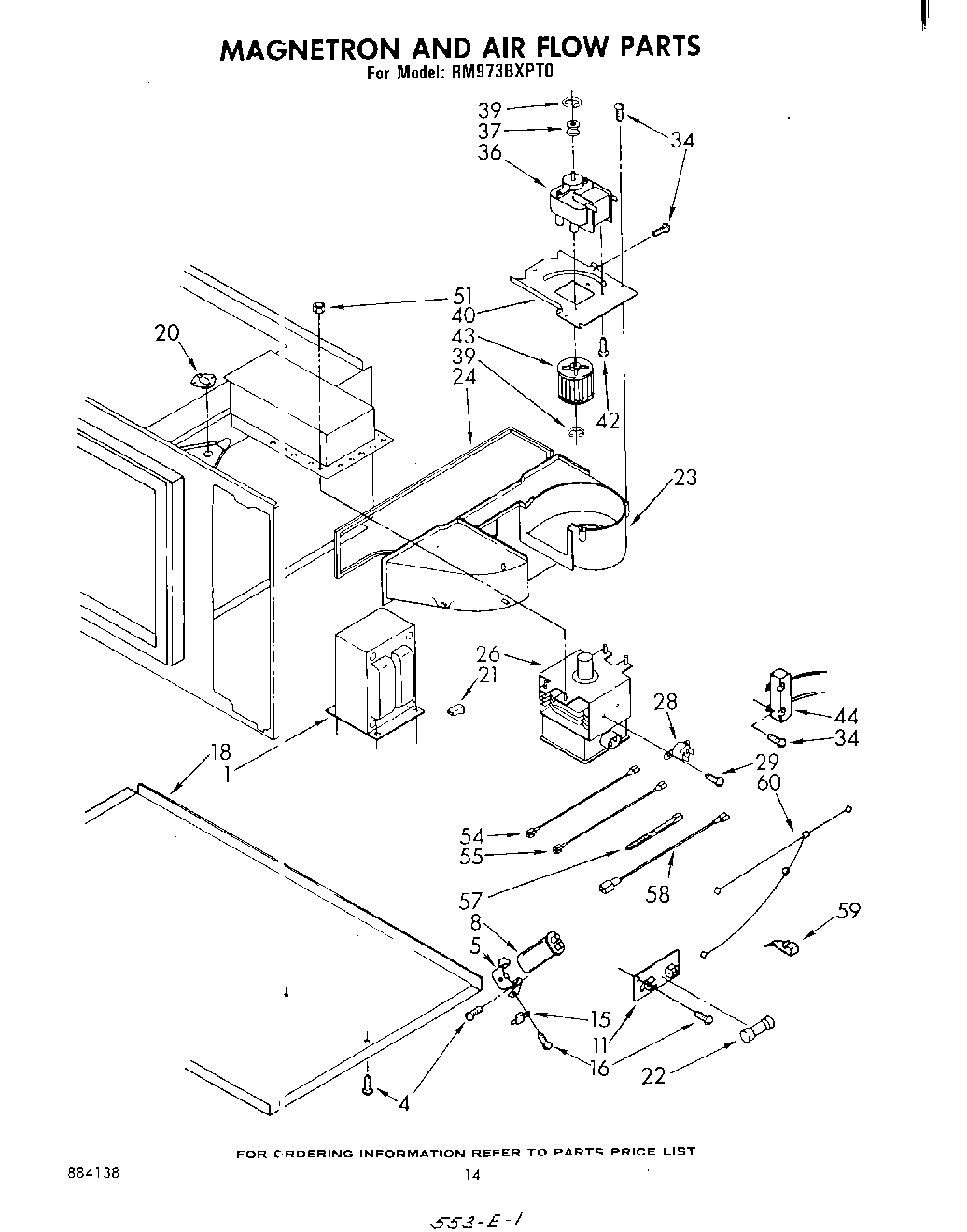

RM973BXPT0 08 – MAGNETRON AND AIR FLOW

Products

Position	Product
	Screw, 11-16 x 1/2 Double Load Space Thread (5)
1	Transformer
1	Transformer (Alt.)
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor (Alt.)
8	Capacitor
8	capacitor (alt.)
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
20	screw
20	Thermostat
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron
28	Thermal Protector
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
29	Screw, 6A x 3/8 (2)
36	Motor (Alt.)
36	Motor
36	Motor (Alt.)
37	Pulley, Motor
39	``E`` Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay (Alt.)
44	Reed Relay (Alt.)
44	Reed Relay
51	Flange Nut (4)
54	Jumper, High Voltage (Black 6-5/16``)
55	Jumper, High Voltage Red (6-5/16``)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4`` (2)
59	Clip, Harness
60	Screw
60	Cable, Support
