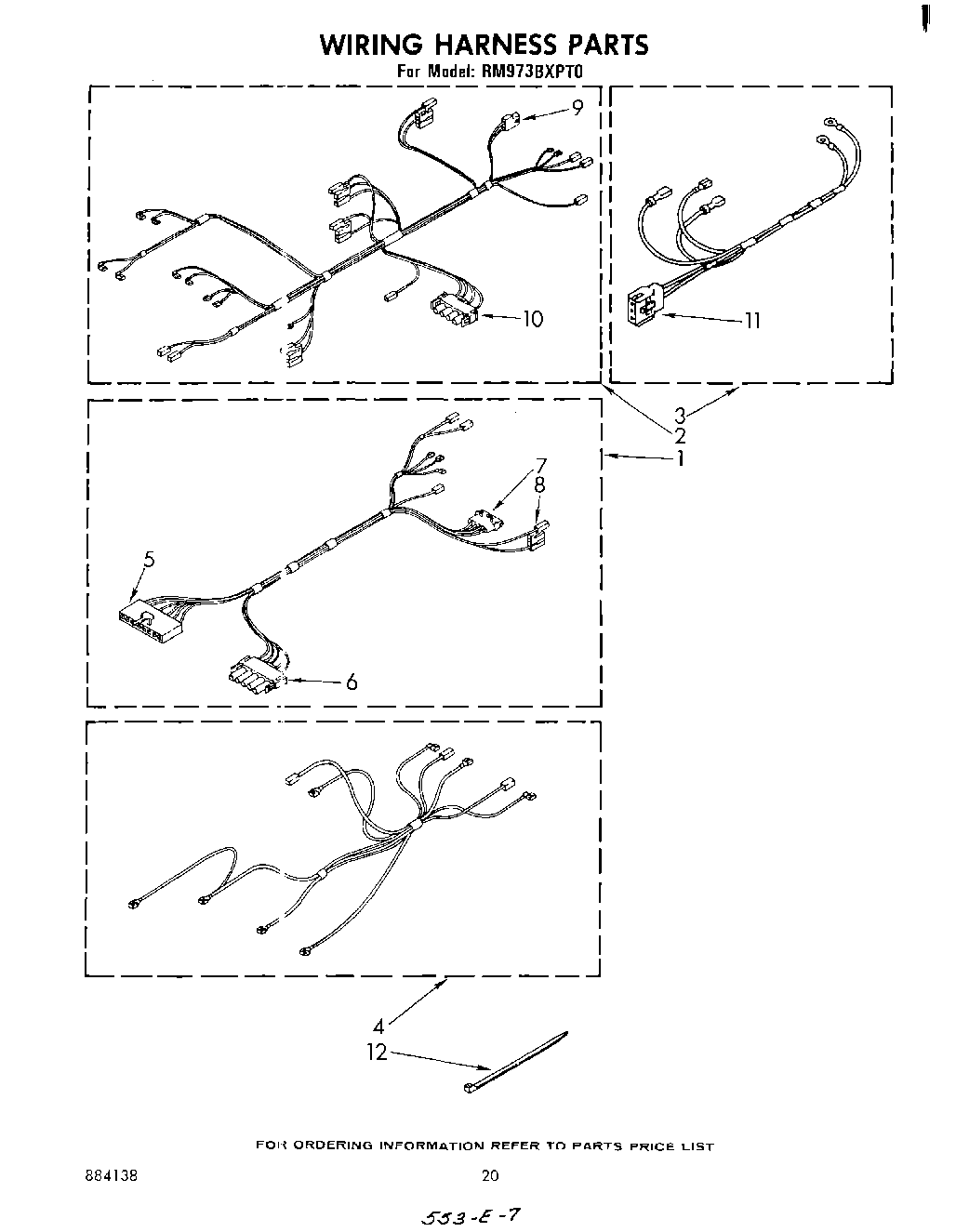

RM973BXPT0 11 – WIRING HARNESS

Products

Position	Product
1	Harness, Wiring (Control)
2	Screw, 80 x 5/16
2	Harness, Wiring (Main)
3	Harness, Wiring (AC Supply)
4	Harness, Wiring (Timer)
5	Connector Housing
6	WPL 311574
7	Disconnect Block, Female
8	Housing, Plug
9	Receptacle, Latching (2-Way) (Uses Terminal 94614)
10	Disconnect Block (4 Terminal)
11	Connector Housing
12	WPW10339879 Whirlpool Wire Tie
