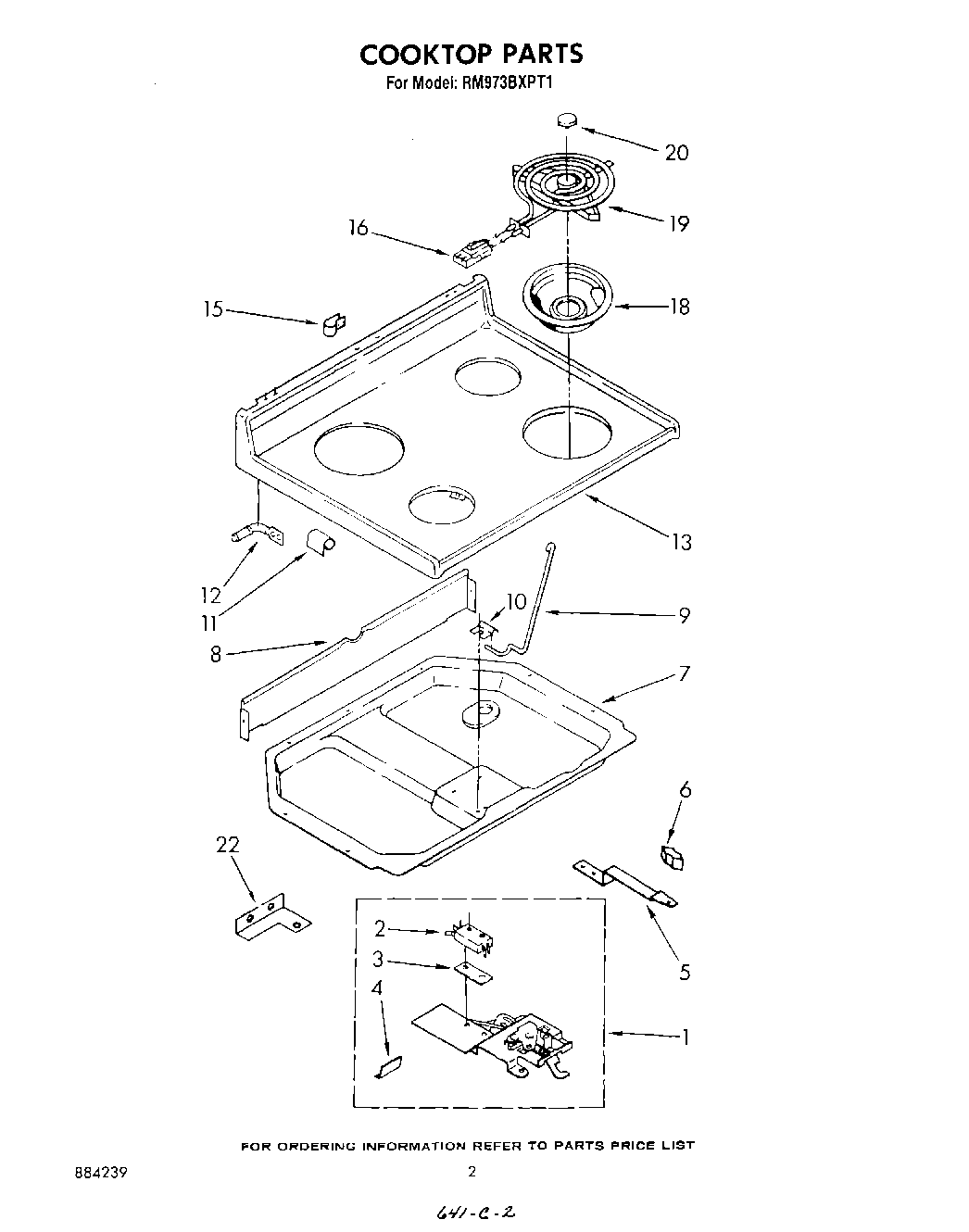

RM973BXPT1 02 – COOKTOP

RM973BXPT1 02 – COOKTOP

Written by

in

RM973BXPT1 02 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4Shield, Latch
4Screw
4WP313808 Whirlpool Screw
5Screw (3)
5WP488627 Whirlpool Refrigerator Screw
5Handle, Latch
5Screw
6Knob, Latch
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10WP3390631 Whirlpool Screw
10Retainer, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
12SCREW
13Cooktop (Chrome)
13WP308685 Whirlpool Microwave Screw
15WP308605 Whirlpool Refrigerator Clamp
15WP965173 Whirlpool Dishwasher Screw
16BURNER RECEPTACLE KIT
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
22Screw, 10A x 1/2 (2) (Black)
22WPL 312320
