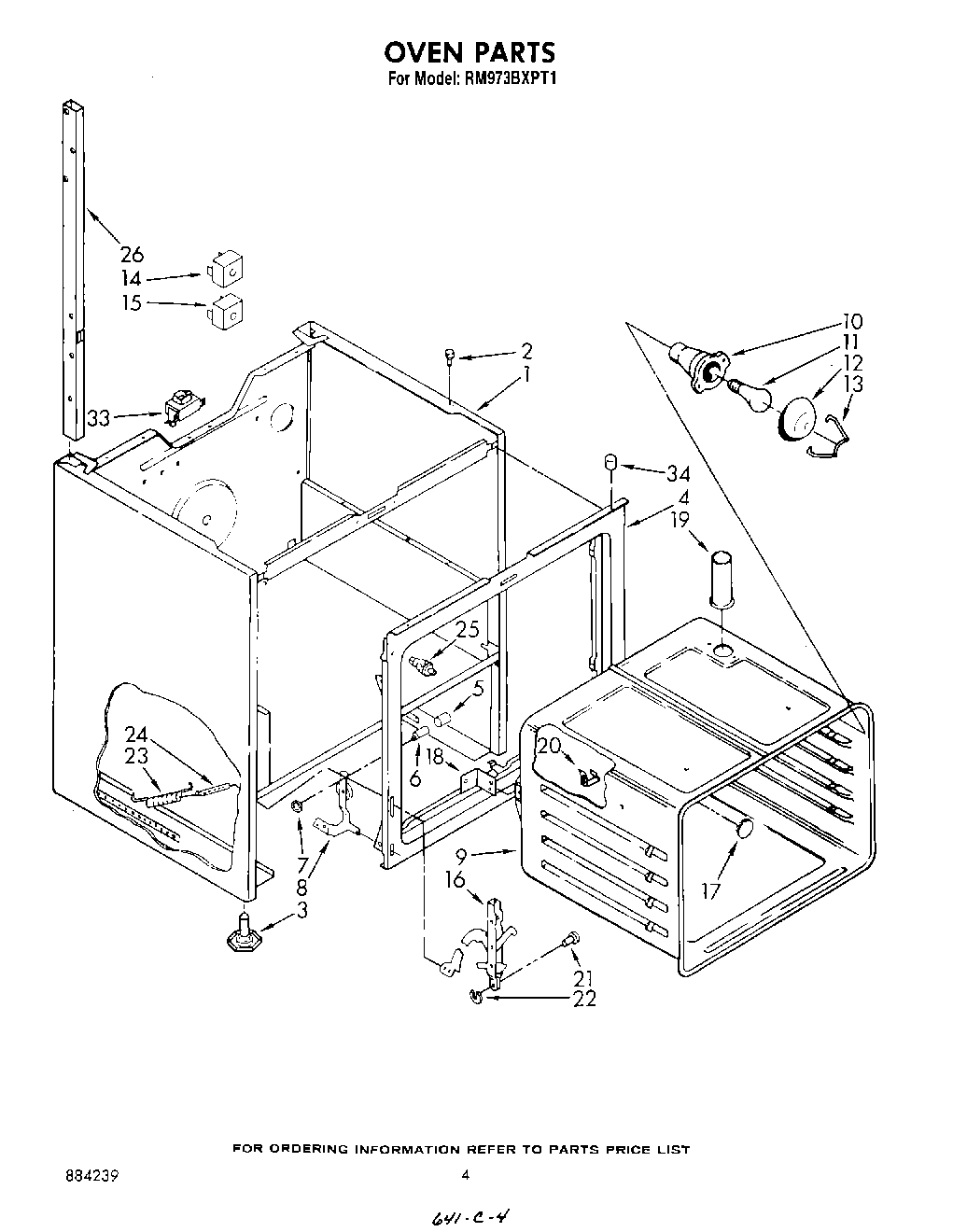

RM973BXPT1 03 – OVEN

Products

Position	Product
	SCREW
	Screw (10-12 x .875)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Oven (30“ Pyro)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	WPL 314215
15	Switch, Bake
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing L.H.
26	Support, Tubing R.H.
33	Ballast (Alt.)
33	Ballast
33	Ballast (Alt.)
34	Screw, 8-32 x 5/16 (2)
34	locator, cooktop
