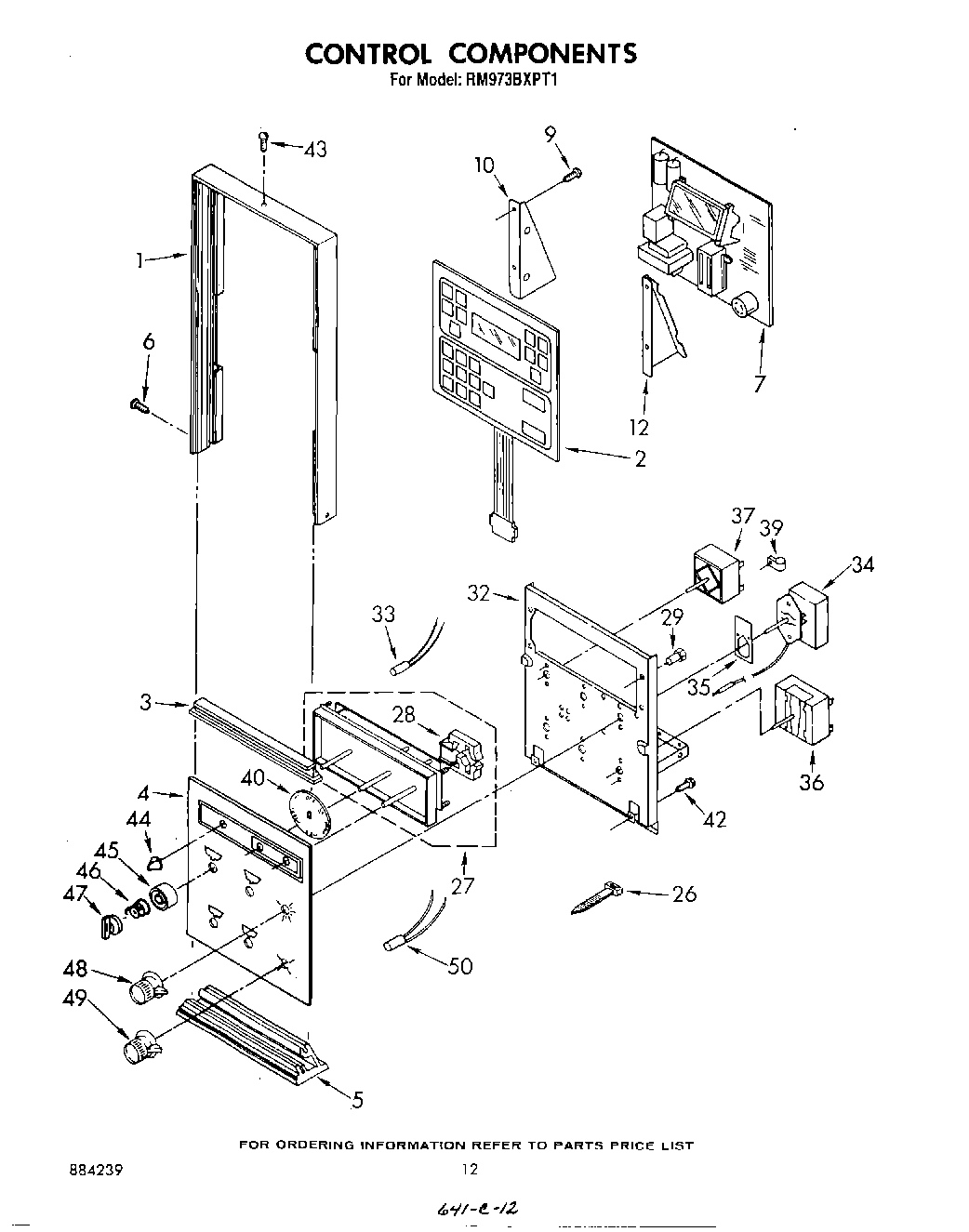

RM973BXPT1 07 – CONTROL

Products

PositionProduct
1Frame, Control Panel
2Membrane, Switch
3Splice Panel
4Socket Assembly R.H.
4Support-Top Burner
5Bottom Cap, Control Panel
6NAMEPLATE
7Board, Power Control
10Bracket, P.C. Board
12Bracket, P.C. Board
26WPW10339879 Whirlpool Wire Tie
27Timer
28Motor, Timer
29Nut, Aluminum (4)
32Bracket, Control Mounting
32SCREW
33Indicator Light (6)
34Thermostat, Oven (Lower)
35Insulator
35WP313808 Whirlpool Screw
36Switch, Selector (Pyro)
37Screw, 8-32 x 3/16 (2)
37switch, infinite (4)
39WP308605 Whirlpool Refrigerator Clamp
39WP965173 Whirlpool Dishwasher Screw
40Dial, Surface Units (4)
42Screw
43Screw
44Spring (3)
44WP3169181 Whirlpool Knob
45Bezel, Knob (4)
46spring, bezel (4)
47Knob, Control (4)
48Knob, Thermostat
49Knob, Selector
49Screw
49WP688805 Whirlpool Spring Clip
50Light, Indicator
