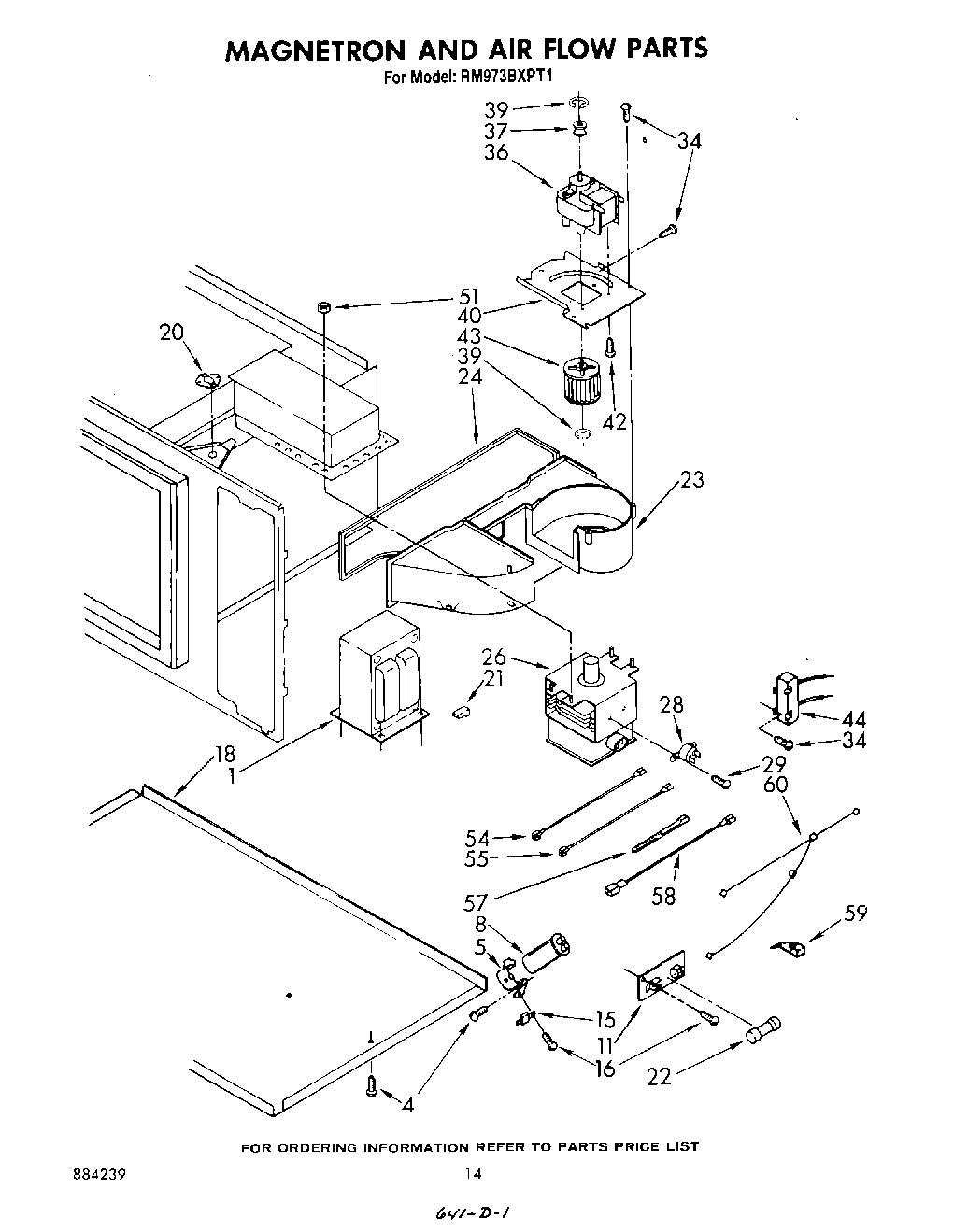

RM973BXPT1 08 – MAGNETRON AND AIR FLOW

Products

Position	Product
	Screw, 11-16 x 1/2 Double Load Space Thread (5)
1	Transformer (Alt.)
1	Transformer
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
8	Capacitor (Alt.)
8	capacitor (alt.)
11	Block, Fuse
15	rectifier, high voltage
15	rectifier, high voltage (alt.)
18	Base, Chassis (Not Serviceable)
20	Thermostat
20	screw
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
36	Motor (Alt.)
36	Motor (Alt.)
36	Motor
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay
44	Reed Relay (Alt.)
44	Reed Relay (Alt.)
51	Flange Nut (4)
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
59	Clip, Harness
60	Cable, Support
60	Screw
