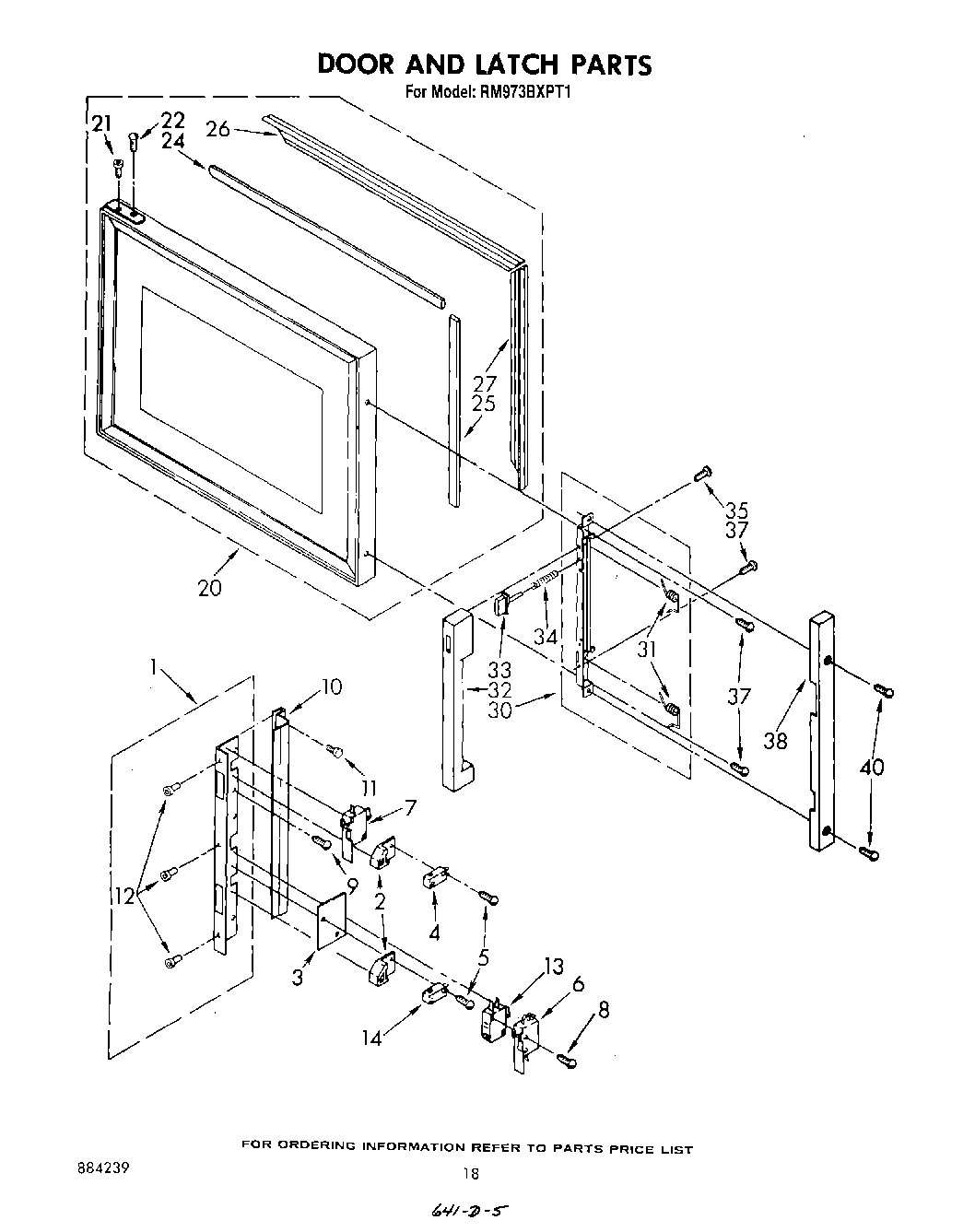

RM973BXPT1 10 – DOOR AND LATCH

Products

Position	Product
1	screw
1	Bracket, Catch
1	WPL 3147001
2	Catch (2)
3	Insulator
5	WPL 312717
6	Switch, Light Monitor (Alt.)
6	Switch, Light/ Monitor
6	Switch, Light Monitor (Alt.)
7	Switch, Miniature
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (4)
12	Rivet, Pop (3)
13	Spring
13	Switch (Alt.)
13	Switch
14	814037 Whirlpool Microwave Switch
20	Door
21	WPW10068250 Whirlpool Dishwasher Screw
24	Seal, Top & Bottom (2)
24	Seal, Top & Bottom (2) (Alternate)
24	Seal, Top & Bottom (2) (Alternate)
25	Seal, Sides
25	Seal, Sides (Alternate)
25	Seal, Sides (Alternate)
26	Retainer, Top & Bottom Seals (2)
27	Retain, Side Seal (2)
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	Button, Door Handle
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	Screw, 8-32 Fillister Head Thread Form
37	WP489128 Whirlpool Refrigerator Screw
38	WPL 312350
40	Screw, 8-32 x 5/16 (2)
