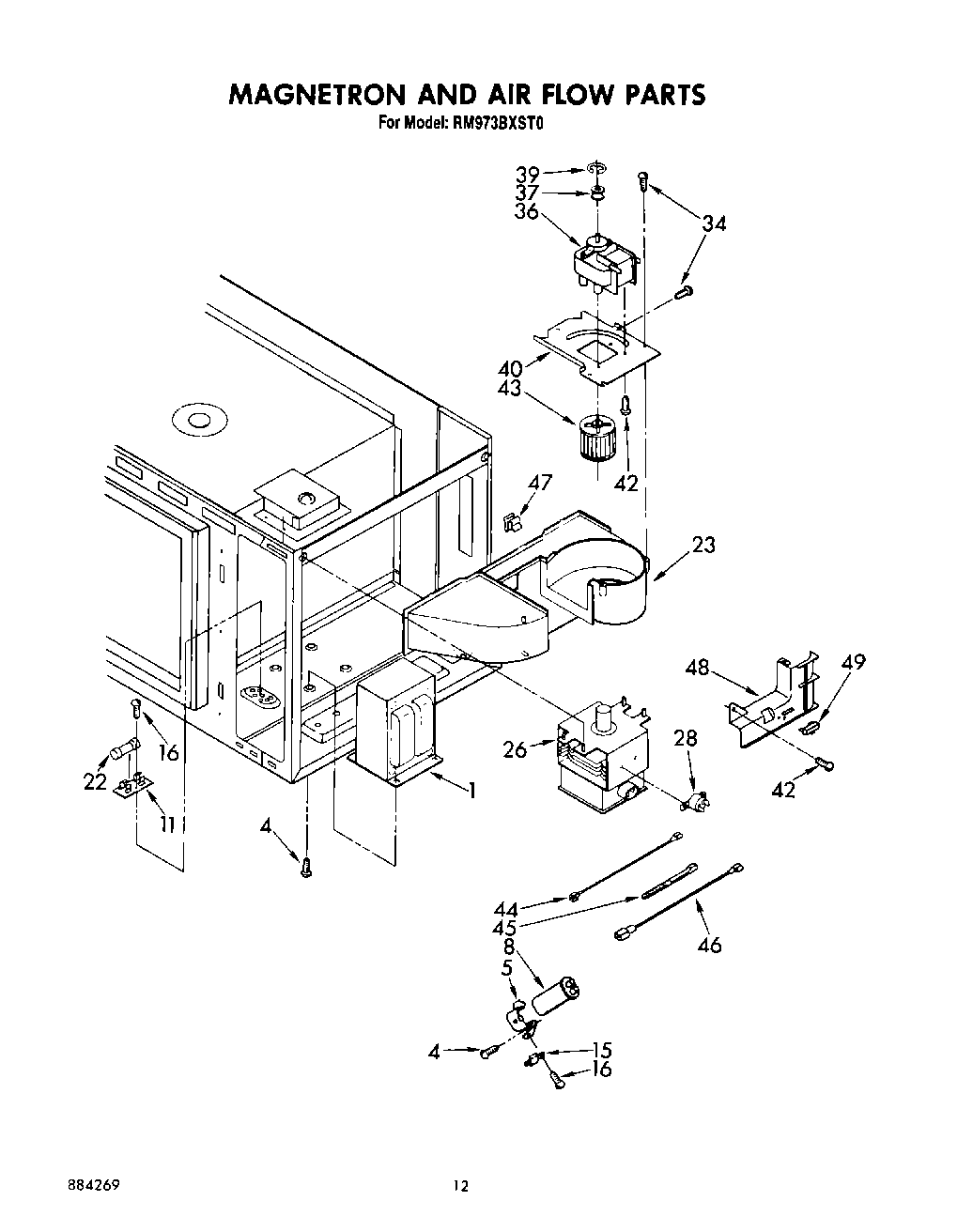

RM973BXST0 07 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor (Alt.)
8	capacitor (alt.)
8	Capacitor
11	4454949 Whirlpool Oven Fuse Block
15	Rectifier, High Voltage
16	screw
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron
28	Thermal Protector
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Transmotor
37	Pulley, Motor
39	``E`` Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Jumper, High Voltage Red (6-5/16``)
45	WPW10339879 Whirlpool Wire Tie
46	High Voltage Lead, Gray 6-3/4`` (2)
47	Clip
48	Extension, Air Duct
49	Fuse, Thermal
49	Screw
